Basic Information
Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CNAS, KEMA, CE
Model Number: T-212
Minimum Order Quantity: 1set
Packaging Details: Standard export wooden box
Delivery Time: 1-2weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200sets/month
Get Best Price Contact Now
Name: MICROOHM METER Application: CB Contact Resistance Test Set
Current Range: 100A， 200A Resistance Range: 0-20000.0μΩ
Weigt: 7.5KG With Printer: Yes
Accuracy: 0.5% Standard: DL/T 596-2005, IEC61010-1, IEC61326-1
High Light:

electronic test instruments

,

electronic measurement equipment

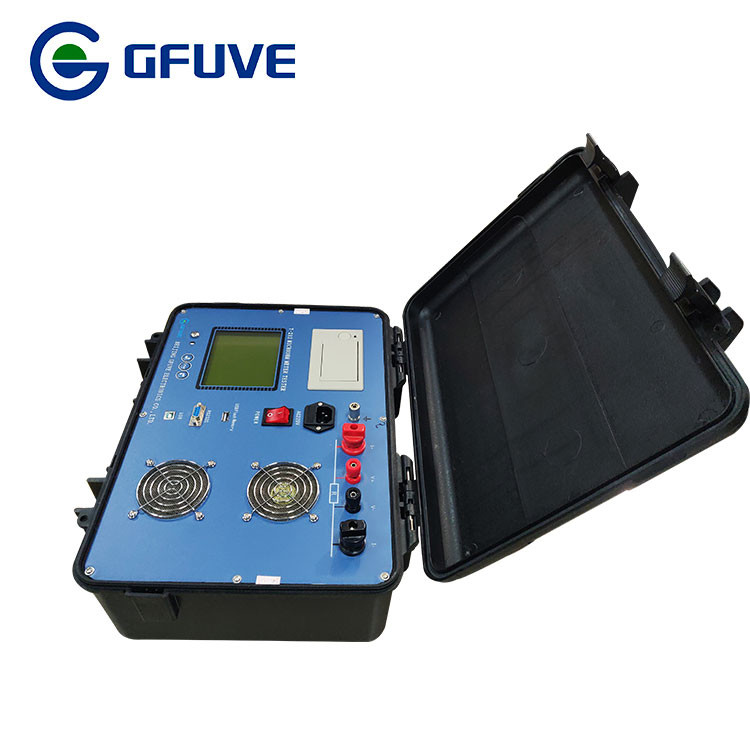

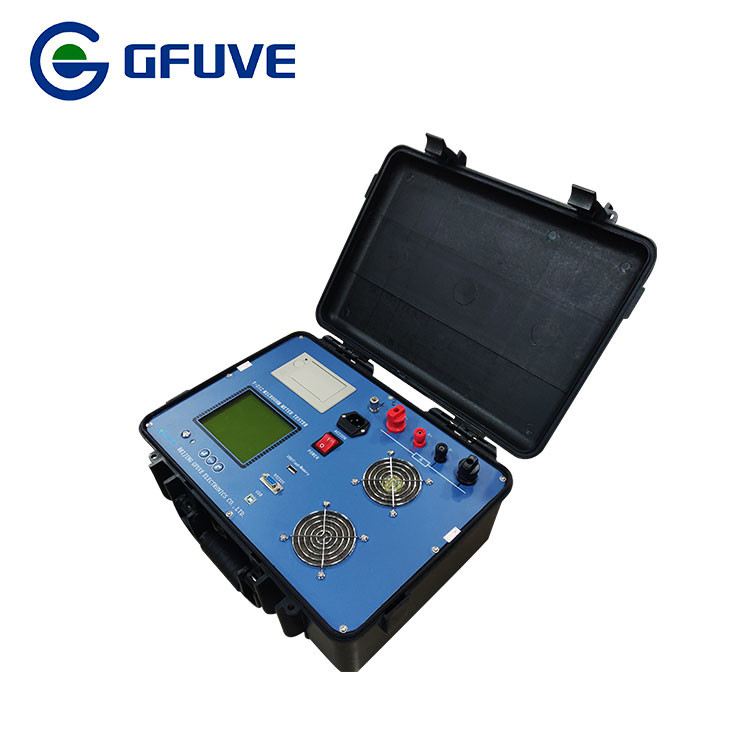

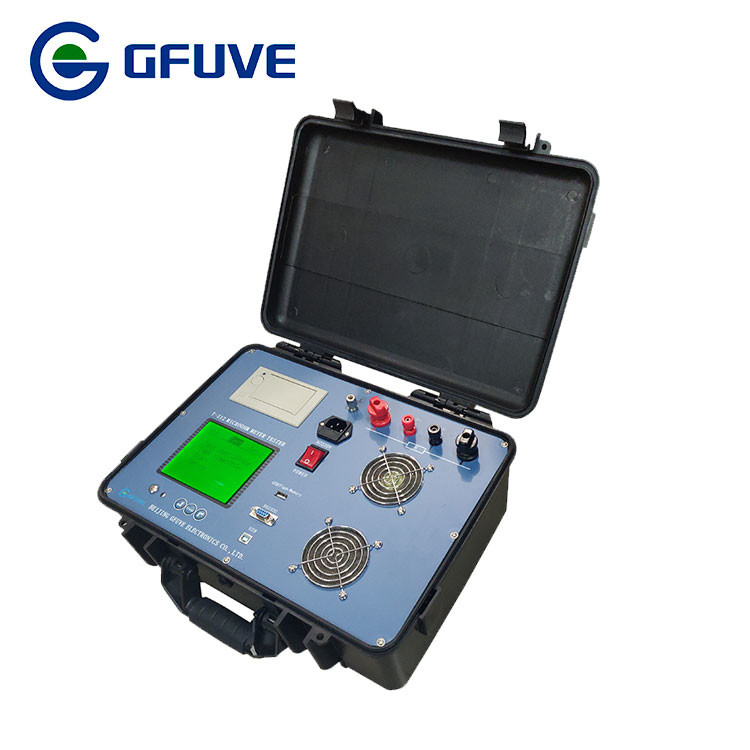

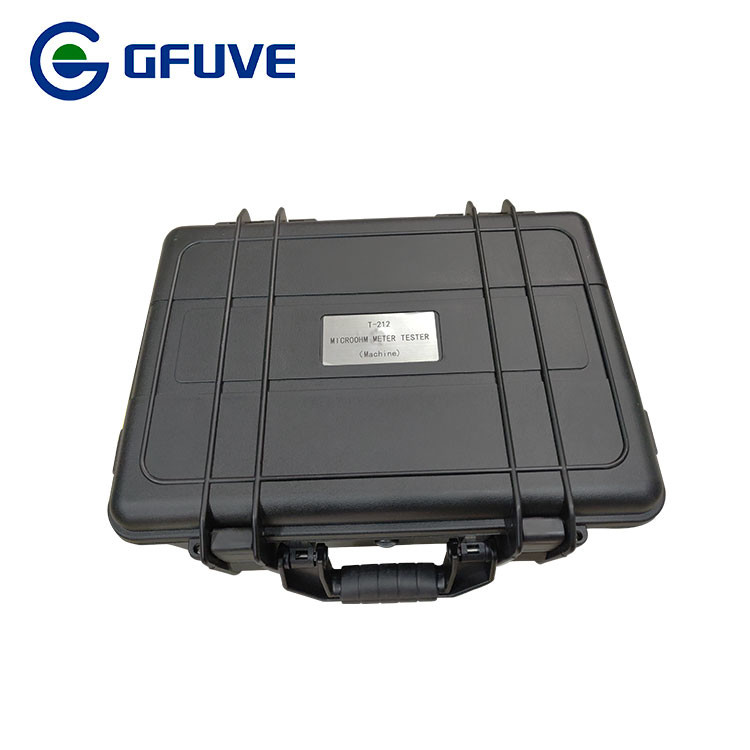

T-212 GFUVE 200A MICROOHM METER WITH PRINTER,Circuit Breaker electrical test equipment





T-212 MicroOhm Meter tester adopts the top open structure or vehicle mounted horizontal chassis. It has that vantage: more small volume, more light weight, more strong functions, and the simple operation. It designed for field tester design. The high output voltage is 10V. Display is 160*128 large LCD screen. Test current optionally, test time can be set, test process dynamic tips, suitable for different working environment. It can save 200 test record, the records can be printed and uploaded to the computer.



GFUVE provides versatile, rugged micro-ohmmeters suitable for lab and field use with available test currents from 10 to 200A. Utilizing a four-lead Kelvin method of testing, our instruments accurately measure very low resistances in the micro-ohm range within 0.5%. Key Features. Measurement resolution down to 0.1µΩ.


Milli/micro ohm meters can help to measure small resistances and capacities. Test instruments can help to determine whether equipment is operating at peak performance. Instruments are available for measuring specific voltage, current, or resistance.





FEATURES

  • Measures contact resistance in circuit breakers, disconnecting switches, busbar connections, safety devices, etc
  • Easy to operate
  • Designed for rugged field use
  • Highly flexible cable connections
  • Portable and lightweight, weighs only 7.5 kg
  • Print :with internal installed 58mm wide thermal printe
  • Communication:with RS232 and USB communication interface
  • Help : the instrument has internal help topi


PARAMETERS

Electrical parameters
Power supply Single phase AC 220V±10% or 110V±10%, 50/60HzAC
Cooling way intermittent air cooled
Current output constant current: 100Amp, 200Amp
Test time 100Amp: 5-60Sec, 200Amp: 5-30Sec
Test range 0-20000.0μΩ (100Amp)
0-10000.0μΩ (200Amp)
Accuracy 0.5%±2bit
Resolution 0.1μΩ
Max storage volume 200
LCD 5.7″black and white LCD display
Communication RS232 and USB communication interface
Printer internal installed 58mm wide thermal printer
Standard DL/T 596-2005, IEC61010-1, IEC61326-1
Mechanical parameters
Dimension (L×W×H) (mm) 415x319x168
Weight (kg) 7.5
Environmental conditions
Operating temperature -10°C to 50°C
Storage temperature -20°C to 70°C
Relative humidity ≤85%RH
