| Place of Origin: | BEIJING , CHINA |
|---|---|
| Brand Name: | GFUVE |
| Certification: | ISO9001, CE |
| Model Number: | T-212 |
| Minimum Order Quantity: | 1set |
| Packaging Details: | Standard export wooden box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200sets |
| Name: | Contact Resistance Meter | Keyword: | Contact Resistance Tester |
|---|---|---|---|
| Current: | DC 100A Or 200A | Resistance: | 0-20000.0μΩ(100Amp); 0-10000.0μΩ(200Amp) |
| Accuracy: | 0.2% | Weight: | 7.5KG |
| Test Time: | 100Amp：5-60Sec, 200Amp：5-30Sec | Application: | MV And HV Circuit Breaker |
| Color: | Grey And Black | ||
| High Light: | 200A Contact Resistance Meter,RS232 Contact Resistance Meter,10V Contact Resistance Meter |
||
Description

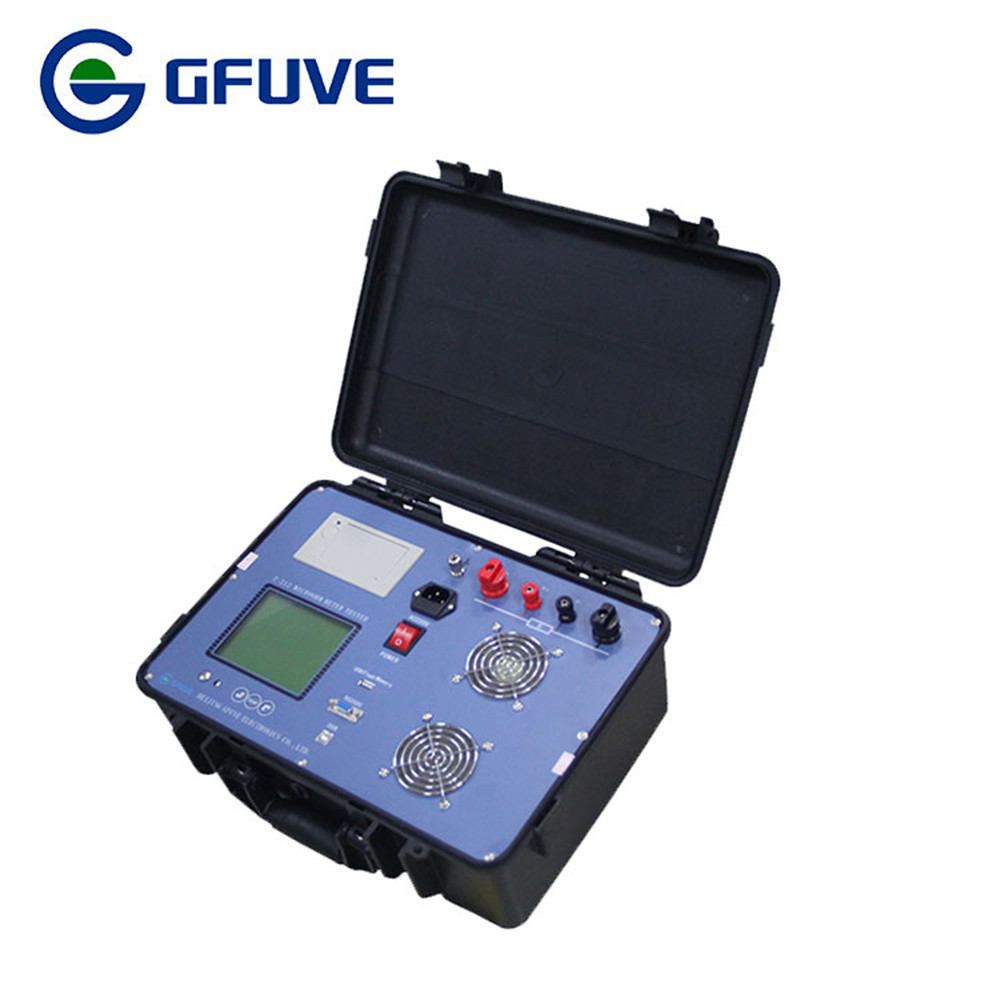

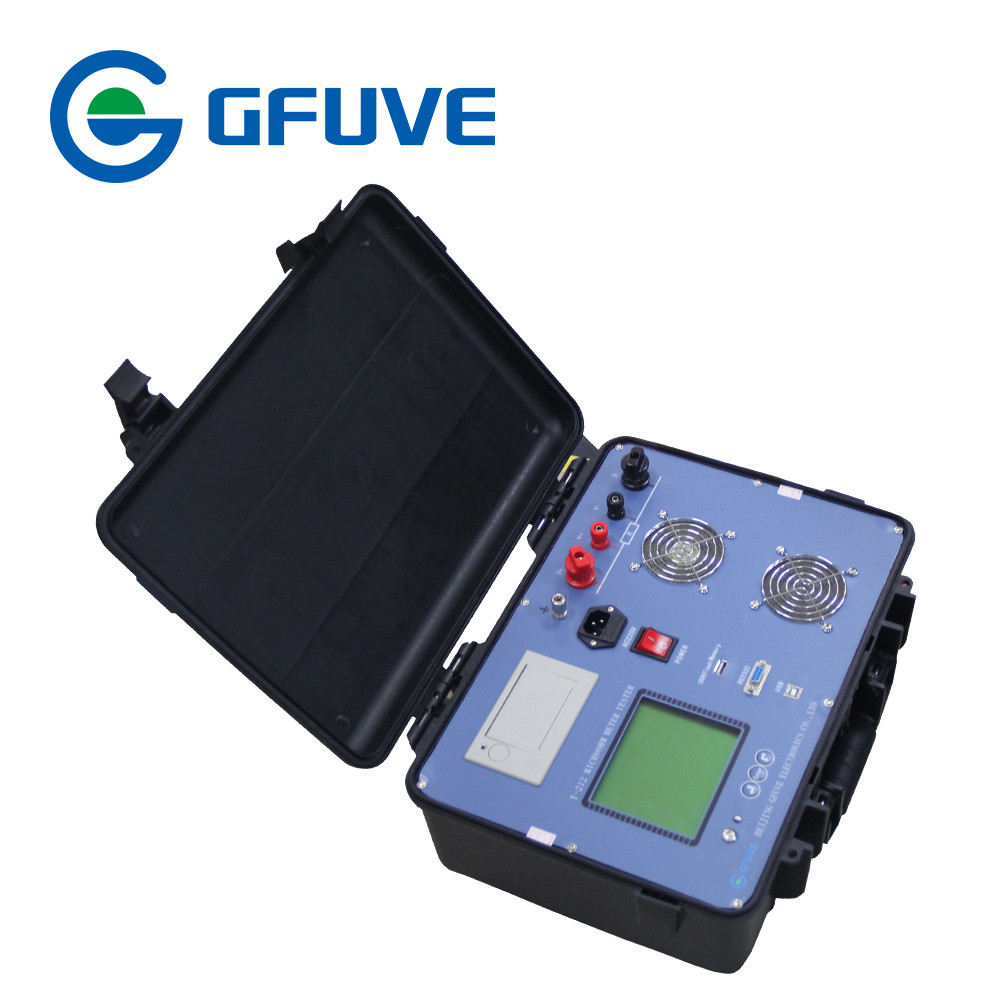

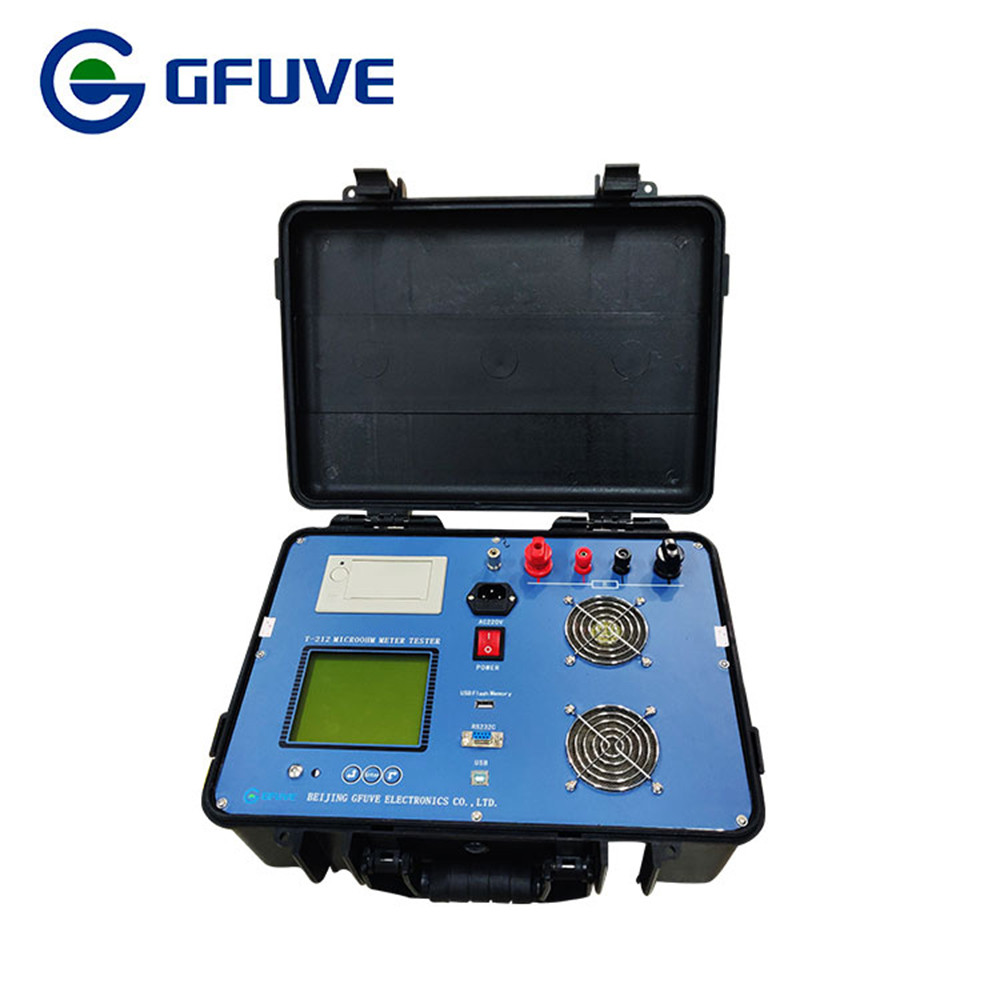

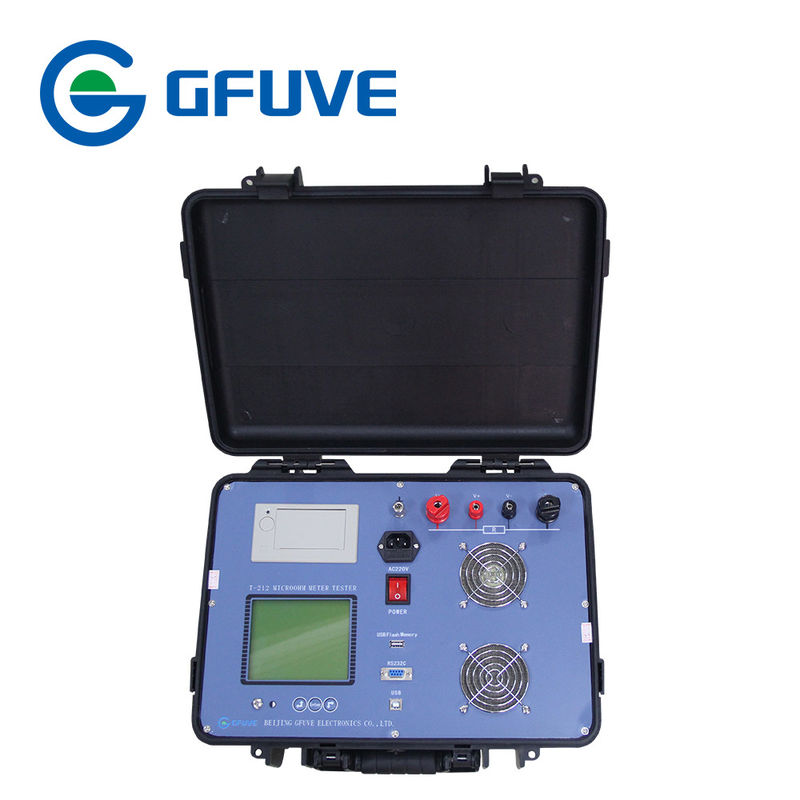

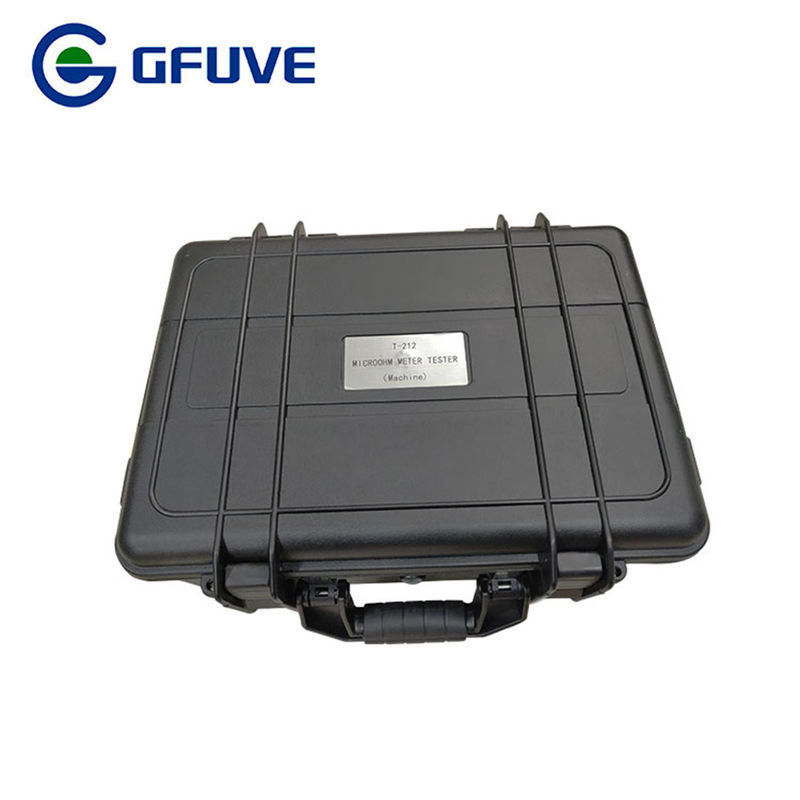

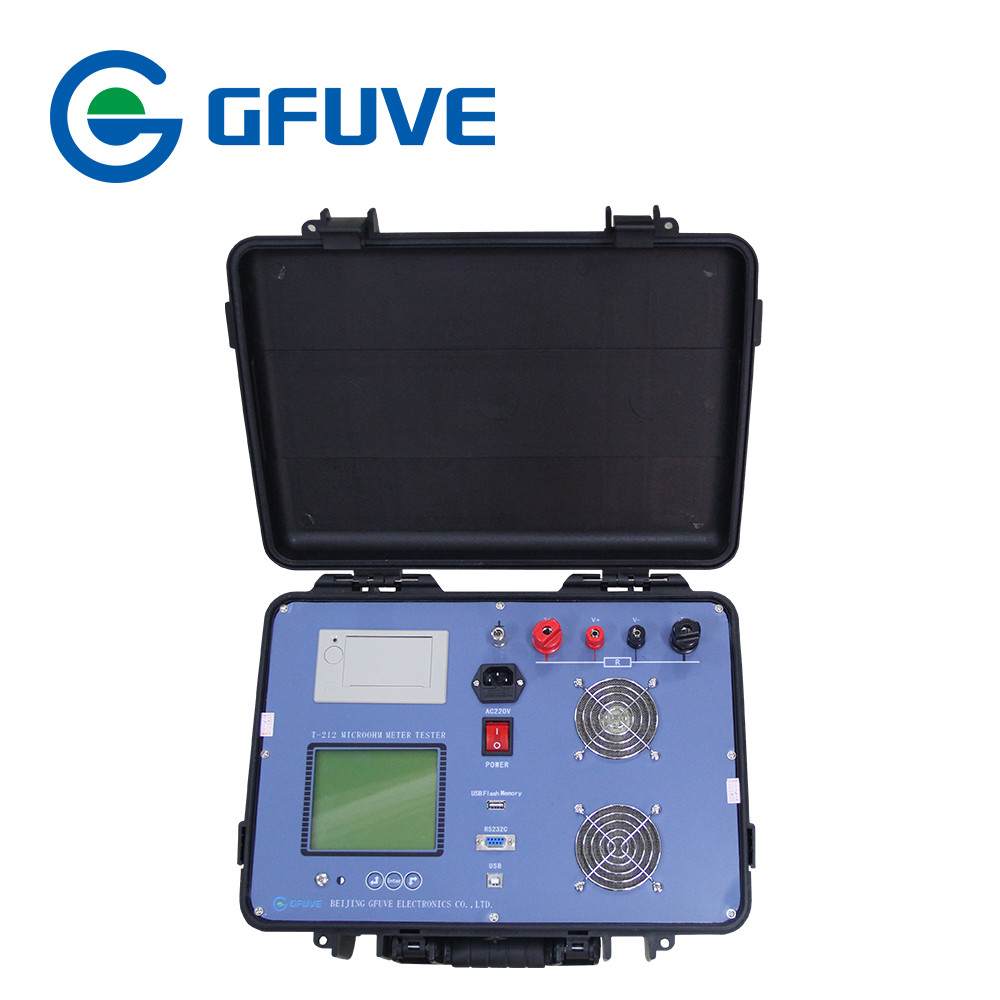

T-212 Micro-ohm meter tester adopts the top open structure or vehicle mounted horizontal chassis. The advantages are as follows: more small volume, more light weight, more strong functions, and the simple operation. It designed for field testing. The high output voltage is 10V. Display is 160*128 large LCD screen. Test current optionally, test time can be set, test process dynamic tips, suitable for different working environment. It can save 200 test record, the records can be printed and uploaded to the computer.
features
1. Measures contact resistance in circuit breakers, disconnecting switches, busbar connections, safety devices, etc.
2. Easy to operate
3. Designed for rugged field use
4. Highly flexible cable connections
5. Portable and lightweight, weighs only 7.5 kg
6. Print: with internal installed 58mm wide thermal printer
7. Communication: with RS232 and USB communication interface
8. Help: the instrument has internal help topic
| Electrical parameters | |
|---|---|
| Power supply | Single phase AC 220V±10% or 110V±10%, 50/60HzAC |
| Cooling way | intermittent air cooled |
| Current output | constant current:100Amp, 200Amp. |
| Test time | 100Amp:5-60Sec, 200Amp:5-30Sec |
| Test range |
0-20000.0μΩ(100Amp) |
| 0-10000.0μΩ(200Amp) | |
| Accuracy | 0.5%±2bit |
| resolution | 0.1μΩ |
| Max storage volume | 200 |
| LCD | 5.7″black and white LCD display |
| Communication | RS232 and USB communication interface |
| Printer | internal installed 58mm wide thermal printer. |
| Standard | DL/T 596 — 2005 |
| Mechanical parameters | |
| Dimensions | 415mm×319mm×168mm |
| Weight | 7.5kg |
| Environmental conditions | |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -20°C to 70°C |
| Relative humidity | ≤85%RH |
