GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter

GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter
GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter
Basic Information
Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CNAS, CE, KEMA
Model Number: T-203H
Minimum Order Quantity: 1 set
Price: USD2000-8000/set
Packaging Details: Safe and standard package; Dimension (L×W×H) (mm):260x160x60; Weight (kg):3
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 10 sets / week
Get Best Price Contact Now
Communication Port: USB Port Color: Yellow + Black
Ratio: 0.8-30000 Data Storage: 1000 Group
Display Precision: 5 Bits, Resolution Ratio: 0.0001 Phase Shift: 0.1°
Voltage Accuracy On HV Side: 0.05% Voltage Accuracy On LV Side: 0.1%
LCD: 6.4″ Color TFT LCD Display Key: 30 Pcs
Standard: IEC61010-1, IEC61326-1 NAME: Power Transformer Turns Ratio Meter
High Light:

Automatic transformer turns ratio meter

,

Handheld transformer turns ratio meter

,

Three Phase ttr meter

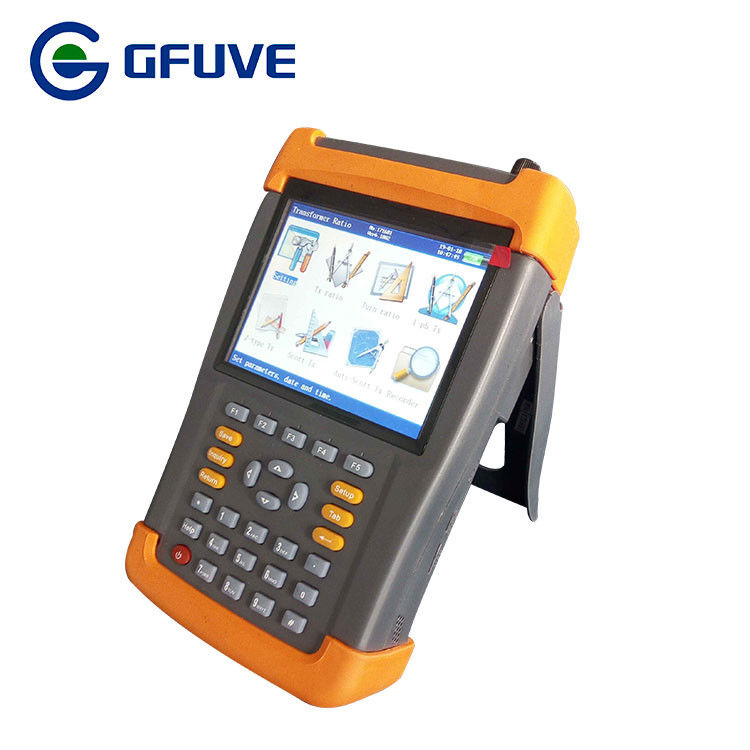

 T-203H HANDHELD THREE PHASE TRANSFORMER TURNS RATIO TEST SET



GFUVE T-203H High Speed Three Phase Automatic Handheld Transformer Turns Ratio Meter 0Description



T-203H automatic transformer turns ratio tester adopts three-phase power supply output voltage, the test speed Instrument to adopt advanced technology for A/D, wide range range; High speed ARM as the core digital processor, test quickly; English menu display, Elaborate and handheld design, makes the T-203H TTR tester superior and powerful with small size and light weight. The TTR tester uses a programmable signal source technology. It is especially suitable for special transformers such as Z-type transformers, rectifier transformers, Scott or anti-Scott transformers, etc.
The T-203H TTR tester adopts the new algorithm developed by our company to measure the ratio of three-phase transformer and ensure the measurement accuracy without adjusting the balance of the three-phase power supply. Therefore, the transformer turns ratio and wiring method can be measured in one minute.



features



1. Input single power, internal digital combination standard sine wave test source output.
2. Phase angle measurement function: measure the phase angle between high voltage side and low voltage side. Measure the turns ratio and phase angle of “Non integral point” transformer.
3. It can conduct single-phase measurement and three-phase winding automatic test. Three phase turns ratio value, phase angle value, error, tapping position, tapping value can be measured for once.
4. Testing results can be displayed in the form of digit and hexagon vector diagram, which makes transformer connecting group can be made out obviously.
5. With blind test function: There is no need to choose connecting method and group. When measuring Y/△, △/Y transformer, no external short-circuit is needed, connecting method can be shifted automatically.
6. With tapping test function: TTR and TTR error in the position of each tapping switch can be gauged quickly. Just input rated TTR once, TTR error in tapping position can be calculated.
7. With functions of turns ratio measurement and voltage TTR measurement.
8. With 5.6 inch color LCD, the effect of data & figure display is visualized and fine.
9. With small size and light weight, it is easy to carry.
10. With built-in high capacity chargeable lithium battery. Test can be conducted without any power supply on site, and once the battery is charged fully, it can make measurement for more than 500 times continuously.






PARAMETERS



 Electrical parameters

 Power supply

 7.2V Lithium-ion rechargeable battery

 Test power

  AC 24V

 Data storage

 500 group

 TTR measurement accuracy

 Range1

 0.8-3000:0.1%±2words

 Range2

 3000-30000:0.2%±2words

 Display precision

 5 Bits, resolution ratio: 0.0001

 Phase angle accuracy

 0.1°

 Voltage accuracy on HV side

 0.05%

 Voltage accuracy on LV side

 0.1%

 LCD

 5.6″ color LCD display

 Key

 30 pcs

 Communication portr

 RS232 , USB

 Standard

 IEC61010-1, IEC61326-1

 Mechanical parameters

 Dimension (L×W×H) (mm)

 260x160x60

 Weight (kg)

 3

 Environmental conditions

 Operating temperature

 -10°C to 50°C

 Storage temperature

 -20°C to 70°C

 Relative humidity

 ≤85%RH
