Place of Origin: | Beijing, China |
---|---|
Brand Name: | GFUVE |
Certification: | CE |
Model Number: | GF2011 |
Minimum Order Quantity: | 1Set |
Packaging Details: | Aluminum alloy box |
Delivery Time: | 1 week |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 1000Set/Month |
Test Mode: | Clamp CT, Integral Approach | Transmission Mode: | Wireless Transmission, The Maximum Distance Of Straight Line Transmission Is About 30m |
---|---|---|---|
Display Mode: | 4 Bit LCD Display, With Backlight Function | Measurement Scope: | 0.00mA-1200A (50/60Hz Automatic) |
Resolution: | 0.01mA | Data Memory: | 99 Sets |
Safety Provisions: | IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT III (600V), IEC61326(EMC Standard) | Meter Weight: | 2.5kg |
Clamp Dimension (mm): | Ф50 | Working Temperature: | -25°C To 40°C |
Working Humidity: | Below 80%Rh | ||
High Light: | wireless current sensor,wireless current transducer |

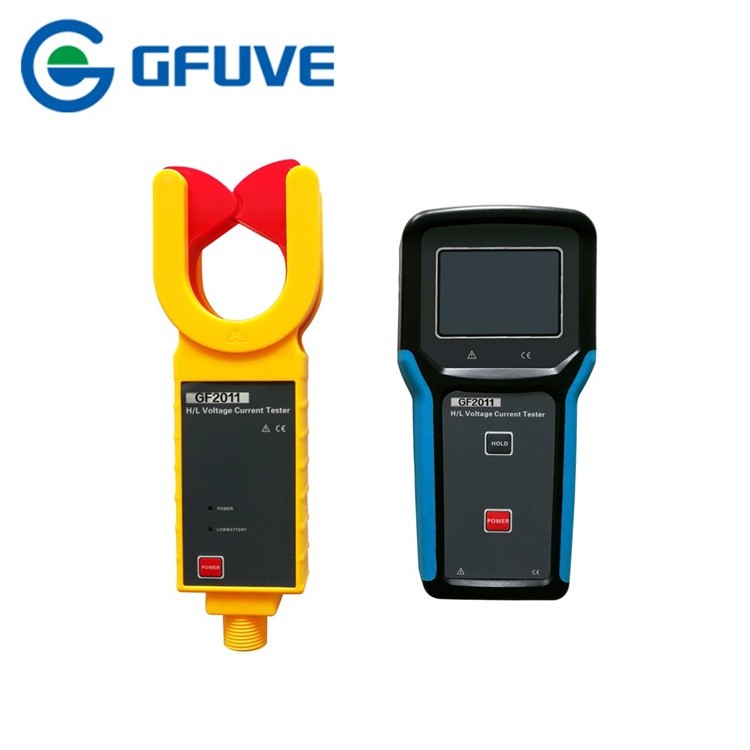

High Voltage Wireless AC Current Sensor GF2011 Ammeter Recorder
Electrical parameters | |
---|---|
Power supply | Ammeter: DC6V Alkaline Dry Battery (1.5V AAA X 4), Receiver: DC7.5V Alkaline Dry Battery (1.5V AA X 5), working 10 hours |
Test mode | Clamp CT, integral approach |
Transmission mode | Wireless transmission, the maximum distance of straight line transmission is about 30m |
Display mode | 4 bit LCD display, with backlight function |
Sampling rate | 2 times/second |
Measurement scope | 0.00mA-1200A (50/60Hz automatic) |
Resolution | 0.01mA |
Shift | 0.00mA-1200A automatic shift |
Accuracy (23°C±5°C, below 70%RH) | 0.000mA-120.00A: ±1%±3dgt 120.00A-1200.0A: ±1%±5dgt |
Line voltage | Below 69KV line test (with 5 insulation rods operation) |
Data memory | 99 sets |
Automatic shutdown | 15 minutes after boot |
Battery voltage | <4.8V alarm active |
Insulation strength | AC 100kV/rms (between the 5th insulation rod and high voltage Ammeter core) |
Structure | Anti-drip type II |
Safety provisions | IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT III (600V), IEC61326(EMC standard) |
Mechanical parameters | |
LCD dimensions (mm) | 47×28.5 |
Meter dimension (LxWxH) (mm) | 87×262×37 |
Meter weight | 2.5kg (including insulation rod and battery, tester 335g) |
Clamp dimension (mm) | Ф50 |
Insulation rod dimension | φ50mm, 1m/piece (5m) |
Environmental conditions | |
Working temperature | -25°C to 40°C |
Working humidity | Below 80%Rh |
Storage temperature | -10°C to 60°C |
Storage humidity | Below 70%Rh |
Accessories | |
Ammeter | 1 pc |
Receiver | 1 pc |
Ammeter box | 1 pc |
Telescopic insulation rod (5m) | 1 pc |
Battery | Rechargeable Alkaline Dry Battery(AA X 5+AAA X 4) |
Model | Description |
GF2011 | Wireless |
GF2011B | Base Display |
