Switchgear Toroidal Current Transformer 0.2s Class High Precision For Energy Meter

China Switchgear Toroidal Current Transformer 0.2s Class High Precision For Energy Meter supplier

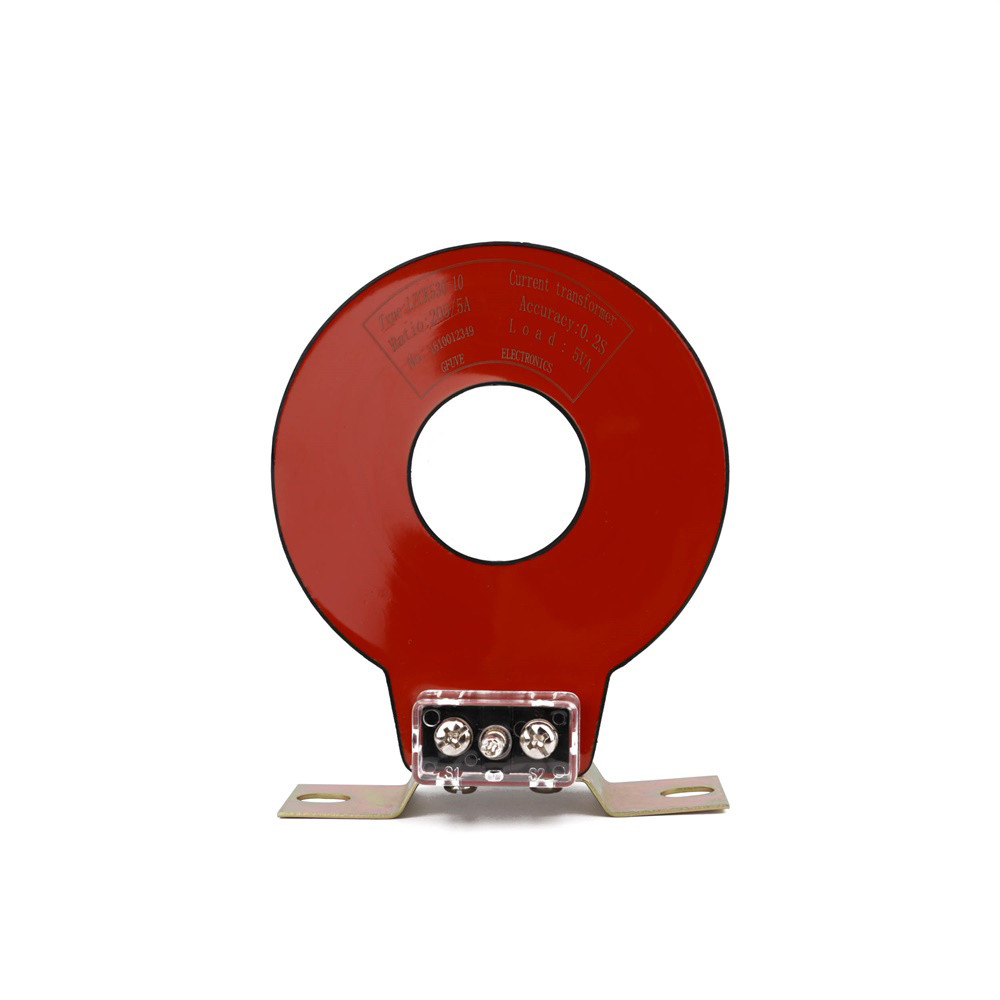

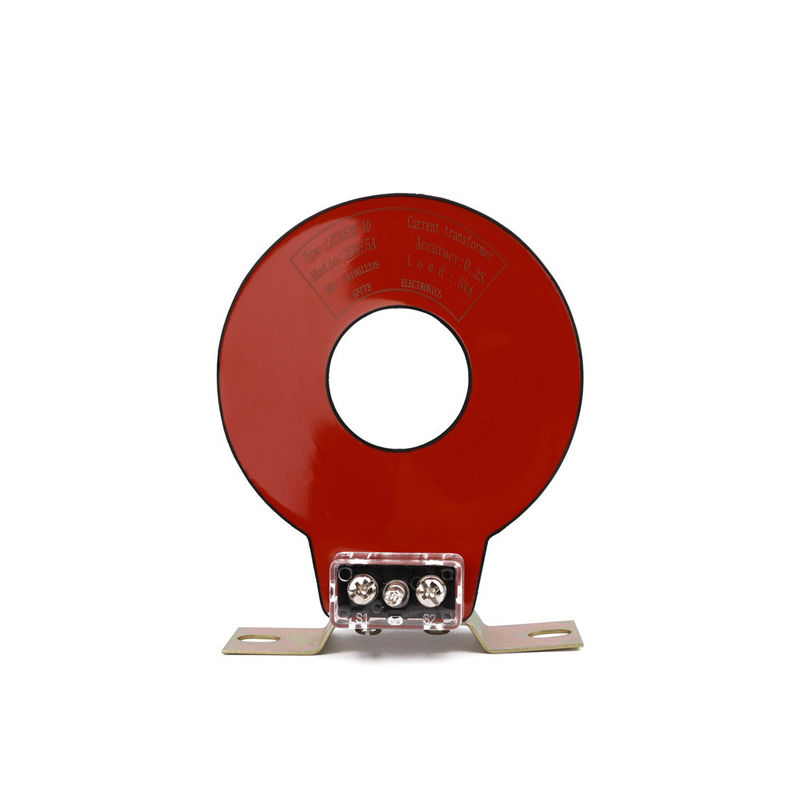

Large Image :  Switchgear Toroidal Current Transformer 0.2s Class High Precision For Energy Meter

Product Details:

Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CE, ISO9001
Model Number: LZCG530-10

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: 100-150USD/PC
Packaging Details: Standard export box
Delivery Time: 3-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Color: Red And Black Name: 0.2s Current Transformer
Material: New Magnetic Application: Switchgear
Burden: 2.5-20VA Ratio: 30-1000A/5A Or 1A
Diameter: 50mm Size: φ45xφ120x65



0.2s Class High Precision Cast Epoxy Resin Current Transformer for energy meter


Theory

A current transformer (CT) is a type of transformer that is used to measure alternating current (AC). It produces a current in its secondary which is proportional to the current in its primary.
Current transformers, along with voltage or potential transformers, are instrument transformers. Instrument transformers scale the large values of voltage or current to small, standardized values that are easy to handle for instruments and protective relays. The instrument transformers isolate measurement or protection circuits from the high voltage of the primary system. A current transformer provides a secondary current that is accurately proportional to the current flowing in its primary. The current transformer presents a negligible load to the primary circuit.


Applications
Current transformers are the current-sensing units of the power system. Current transformers are used at generating stations, electrical substations, and in industrial and commercial electric power distribution.
Measurement current for Power meter
Measurement current for Energy meter
Measurement current for Protection device


Features
New magnetic material is taken to be the core of the current transformer, which has high magnetic permeability, low saturation magnetization and good stability. Therefore, the measuring accuracy is higher and the instrument security factor is lower. Since the high quality silicon processed by advanced technology is taken to be the core of the protection windings, which assured the accuracy limit factor is higher.
The semicircular ring core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance.Small size, light weight, small footprint, fixed in the ring network switchgear cable.The cable can cross the current transformer through its internal poles quickly and uniformly.
The Cast Resin Straight-Through Current Transformer can be divided several kinds according to the various current ratio, accuracy and rated loads. The specific parameters are showed in the corresponding to each model parameter tables.



PARAMETERS



Technical parameters
StandardsIEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006
Rated primary current30-1000A
Rated load≤20VA
Rated frequency50Hz or 60Hz
Rated secondary current5A or 1A
Rated short-time thermal current40kA, 1S
Rated continuous thermal current120%I1n
Secondary winding power-frequency voltage3kV, 1min
Instrument security factorFS ≤10
Mechanical parameters
Dimensions (W×D×H) (mm)φ45xφ120x65
Weight (kg)2.1
Operating conditions
Operating temperature-35°C to +55°C
Daily average temp<+40°C
Altitude<3500 meters
Operating conditions - continued
ConditionNo existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.





TECHNICAL DATA



TypeLZCG530-10LZCG530-10LZCG530-10
PurposeMeasuring current transformerProtection current transformerDouble winding current transformer
Rated primary current (AMP)Accuracy class and rated load(VA)Accuracy class and rated load(VA)Composite accuracy class and rated load(VA)
0.2S0.20.510P2010P1510P100.2S0.510P1510P10
30  2
40  2.5
50  3.75  2
75 3.755 23.75
1002.557.5 2.53.75
15057.5102.53.756.252.53.75 2.5
2007.510153.7557.557.5 3.75
30010152057.5107.5102.55
4001520256.257.5151012.53.755
5002025256.257.51515153.755
6002030307.5102015203.757.5



SELECTION GUIDE



ModelPrimary rated currentRated loadAperture (mm)Description (mm)Weight (kg)MaterialWater-proof
LZCK-55100-1500A≤10VAφ55180×138×522PCIP65
LMCK185-10300-3000A≤25VAφ185350×283×554.5PCIP65
LZCK310-10300-600A≤10VAφ50φ50 x φ110 x 321Resinsilicon case (option)
LZCK322-1030-600A≤10VAφ50φ50 x φ110 x 521.6Resinsilicon case (option)
LZCK350-1020-600A≤25VAφ50φ50 x φ110 x 1053.1Resinsilicon case (option)
LZCG530-1030-600A≤20VAφ45φ45 x φ120 x 652.1Resinsilicon case (option)






WIRING DIAGRAMS


Cast resin straight-through current transformer
P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
P2, S2 is homonymous terminals (subtractive polarity).
