|Name:||Zero Sequence Current Transformer||Material:||New Magnetic|
|Usage:||Protection Current Transformer||Application:||Protection Device Of Current Measurement|
|Color:||Red And Black||Ratio:||100-2000A/5A Or 1A|
|Load:||2.5VA-20VA||Diameter:||120mm, 140mm, 160mm|

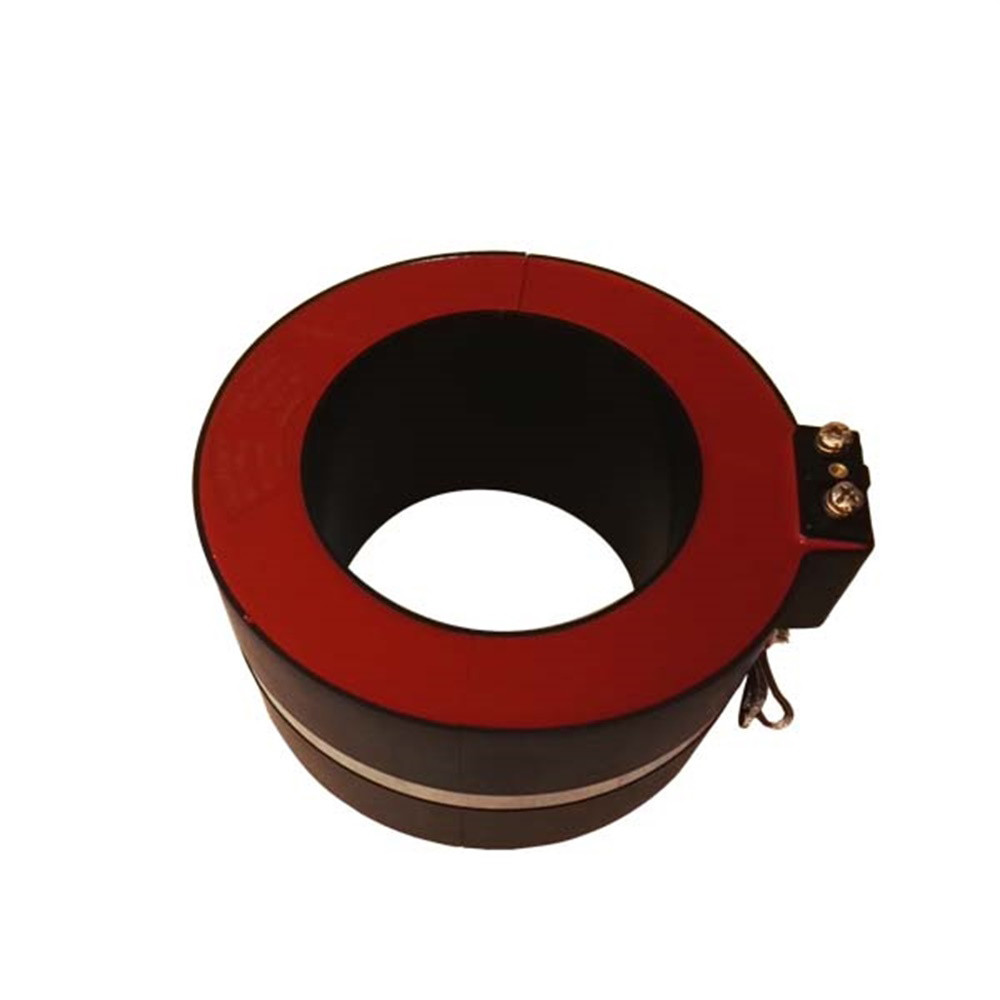

120mm High Voltage Cast Epoxy Resin Split Core Zero Sequence Current Transformer
Current transformers typically consist of a silicon steel ring core wound with many turns of copper wire as shown in the illustration to the right. The conductor carrying the primary current is passed through the ring. The CT's primary, therefore, consists of a single 'turn'. The primary 'winding' may be a permanent part of the current transformer, i.e. a heavy copper bar to carry current through the core. Window-type current transformers (aka zero sequence current transformers, or ZSCT) are also common, which can have circuit cables run through the middle of an opening in the core to provide a single-turn primary winding. To assist accuracy, the primary conductor should be centered in the aperture.
LZCK2500-10 zero sequence current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes. The current transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings
zero sequence current transformer is mainly measurement current for Protection device
New magnetic material is taken to be the core of the current transformer, which has high magnetic permeability, low saturation magnetization and good stability. Therefore, the measuring accuracy is higher and the instrument security factor is lower. Since the high quality silicon processed by advanced technology is taken to be the core of the protection windings, which assured the accuracy limit factor is higher.
The semicircular ring core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance.Small size, light weight, small footprint, fixed in the ring network switchgear cable.The cable can cross the current transformer through its internal poles quickly and uniformly.
The Cast Resin Straight-Through Current Transformer can be divided several kinds according to the various current ratio, accuracy and rated loads. The specific parameters are showed in the corresponding to each model parameter tables.
|Standards||IEC60044-1; IEC 61869-2; NTC 2205; ANSI C57.13; GB1208-2006|
|Rated primary current||100-1500A|
|Rated frequency||50Hz or 60Hz|
|Rated secondary current||5A or 1A|
|Rated short-time thermal current||40kA, 1S|
|Rated continuous thermal current||120%I1n|
|Secondary winding power-frequency voltage||3kV, 1min|
|Instrument security factor||FS≤10|

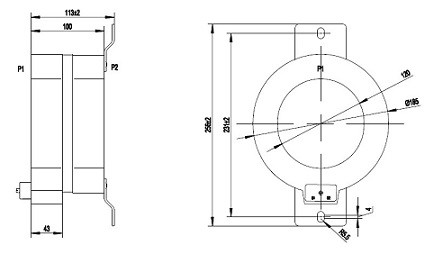

|Dimensions (W×D×H) (mm)||φ120xφ185x100|
|Operating temperature||-35°C to +55°C|
|Daily average temp||<+40°C|
|Storage temperature||-40°C to +70°C|
|Condition||No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.|
|Purpose||Measuring current transformer||Protection current transformer|
|Ratio||Accuracy class and rated load(VA)||Accuracy class and rated load(VA)|
|Model||Primary rated current||Rated load||Aperture (mm)||Description (mm)||Weight (kg)||Material||Water-proof|
|LZCK310-10||300-600A||≤10VA||φ50||φ50 x φ110 x 32||1||Resin||silicon case (option)|
|LZCK322-10||30-600A||≤10VA||φ50||φ50 x φ110 x 52||1.6||Resin||silicon case (option)|
|LZCK350-10||20-600A||≤25VA||φ50||φ50 x φ110 x 105||3.1||Resin||silicon case (option)|
|LZCK720-10||20-1000A||≤25VA||φ60||φ80 x φ110 x 50||2.1||Resin||silicon case (option)|
|LZCK2500-10||500-1500A||≤20VA||φ120||φ120 x φ185 x 100||7||Resin||silicon case (option)|
|LZCG530-10||30-600A||≤20VA||φ45||φ45 x φ120 x 65||2.1||Resin||silicon case (option)|
|LZCG930-10||100-1500A||≤25VA||φ60||φ60 x φ155 x 60||3.6||Resin||silicon case (option)|
|LZCT722-10||20-600A||≤10VA||φ82||φ82 x φ130 x 55||2.3||Resin||silicon case (option)|
P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
P2, S2 is homonymous terminals (subtractive polarity).
