Place of Origin: | China |
---|---|
Brand Name: | GFUVE |
Certification: | IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
Model Number: | LZCK-55 |
Minimum Order Quantity: | 3pcs |
Packaging Details: | standard and safe |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C, T/T, Western Union,Paypal |
Supply Ability: | 5000pcs/month |
Color: | Black Or Orange | Inner Diameter: | 55mm |
---|---|---|---|
Product Name: | Outdoor Split Core Current Transformer 200A | Ratio: | 200A/5A Or 300A/5A |
Accuracy: | 0.5S, 0.5%, 1%, 3% | Dimensions: | 180×138×52mm |
Weight: | 2kgs | Feature: | Waterproof IP67 |
Operating Temperature: | -35°C To +65°C, Not Exceeding +40°C | Rated Frequency: | 50/60Hz |
Cable: | 10m | ||
High Light: | donut type current transformer,ring core current transformer |

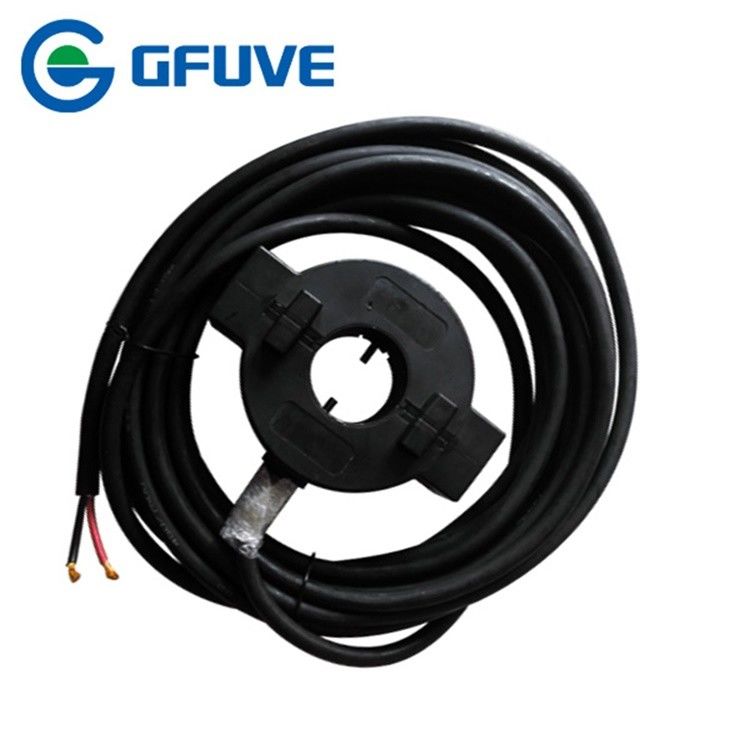

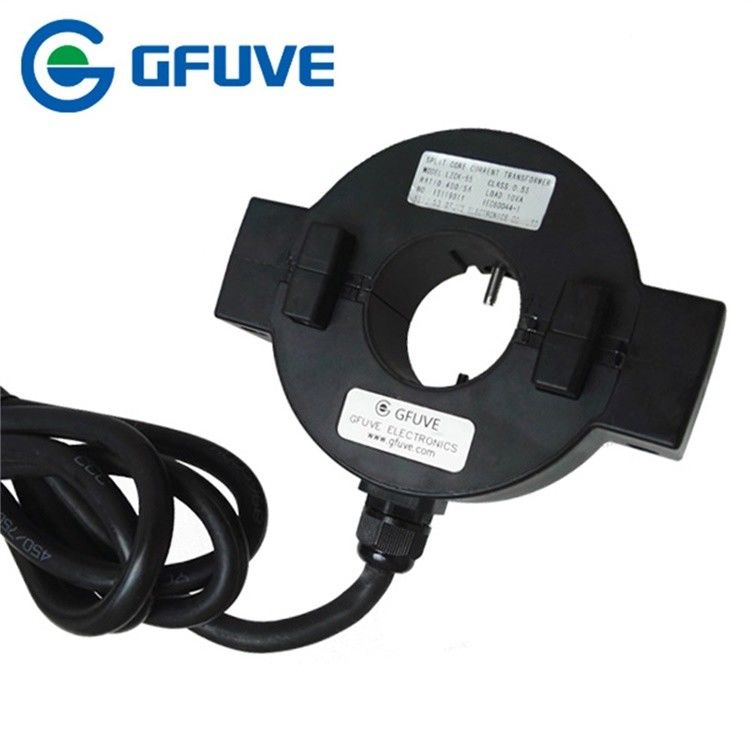

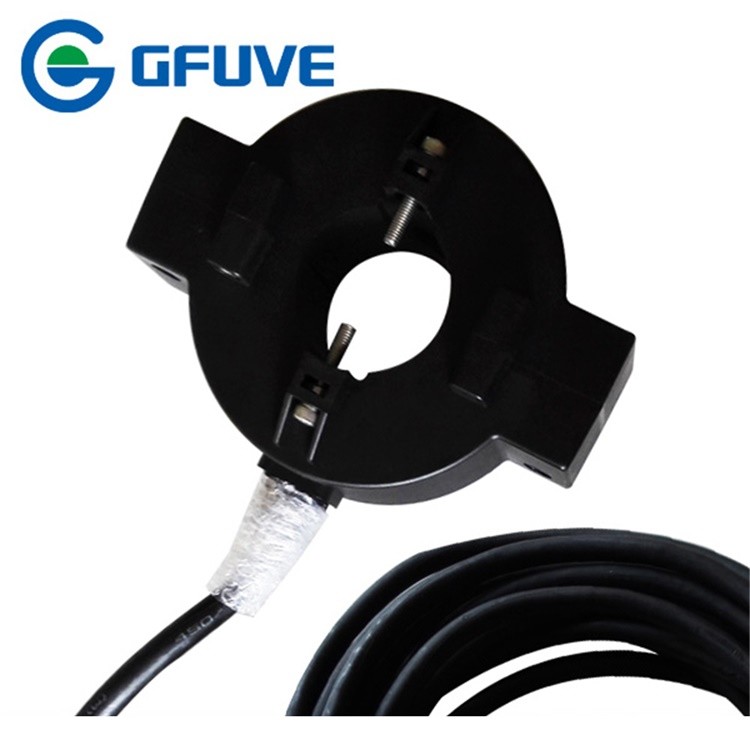

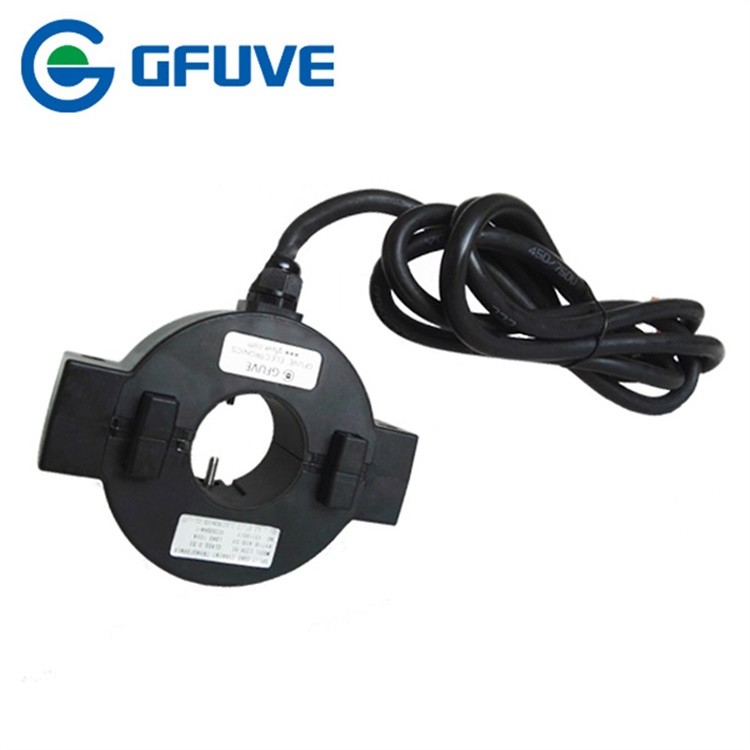

LZCK-55 IP67 Outdoor split core current transformer 200/5A 0.5S for three Phase Watthour meter
LZCK-55 Split-core type current transformer for outdoor use. For cables up to Ø 55mm. Rated Primary Currents: 20 ... 1000A, Rated Secondary Currents: 1A or 5A. For outdoor application, two core halves are casted with the secondary winding in casting resin. The core interfaces are lapped, creating a perfect magnetic connection; Mounting in any position.
LZCK-55 outdoor waterproof current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case(ABS or PC) which is flame retardance anti-moisture, stable performance, no maintenance.
Split-core outdoor Current Transformers Whether it is for metering or protection applications our range of Outdoor Split Core Current Transformers are custom designed to meet your specific indoor (taped version) or outdoor (resin encapsulated version) needs. Typical styles are toriod or rectangular with ratios from 100A to 5000A primary.
Technical parameters | |
---|---|
Standards | IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
Accuracy Class | 0.5S, 0.5%, 1%, 3% |
Range of primary rated current | 100-1000A |
Range of Rated load | ≤10VA |
Rated frequency | 50/60Hz |
Rated secondary current | 5A or 1A |
Rated short-time thermal current | 40kA, 1S |
Rated continuous thermal current | 150%I1n |
Secondary winding power frequency withstand voltage | 3kV, 1min |
Safety Factor Rating | (FS) <10 |
Output signal | 1A, 5A, 333mV, 1V or 5V(customized) |
Cable length | 2.5m, 5m, 10m(customized) |
Flame retardant ABS plastic shell inside, jaw waterproof apron. | |
Mechanical parameters | |
Aperture (mm) | Φ55 |
Dimensions (W×D×H) (mm) | 180×138×52 |
Weight (kg) | 2 |
Working conditions | |
Operating temperature | -35°C to +65°C, not exceeding +40°C |
Storage temperature | -40°C to +70°C |
Ingress Protection | IP67 |
Environment | outdoors or indoors |
The Height of above sea level | 0- 3000m |
Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
Model | Primary rated current | Rated load | Aperture (mm) | Description (mm) | Weight (kg) | Material | Water-proof |
---|---|---|---|---|---|---|---|
LZCK-55 | 100-1500A | ≤10VA | φ55 | 180×138×52 | 2 | PC | IP65 |
LMCK185-10 | 300-3000A | ≤25VA | φ185 | 350×283×55 | 4.5 | PC | IP65 |
LZCK310-10 | 300-600A | ≤10VA | φ50 | φ50 x φ110 x 32 | 1 | Resin | silicon case (option) |
LZCK322-10 | 30-600A | ≤10VA | φ50 | φ50 x φ110 x 52 | 1.6 | Resin | silicon case (option) |
LZCK350-10 | 20-600A | ≤25VA | φ50 | φ50 x φ110 x 105 | 3.1 | Resin | silicon case (option) |
LZCG530-10 | 30-600A | ≤20VA | φ45 | φ45 x φ120 x 65 | 2.1 | Resin | silicon case (option) |
