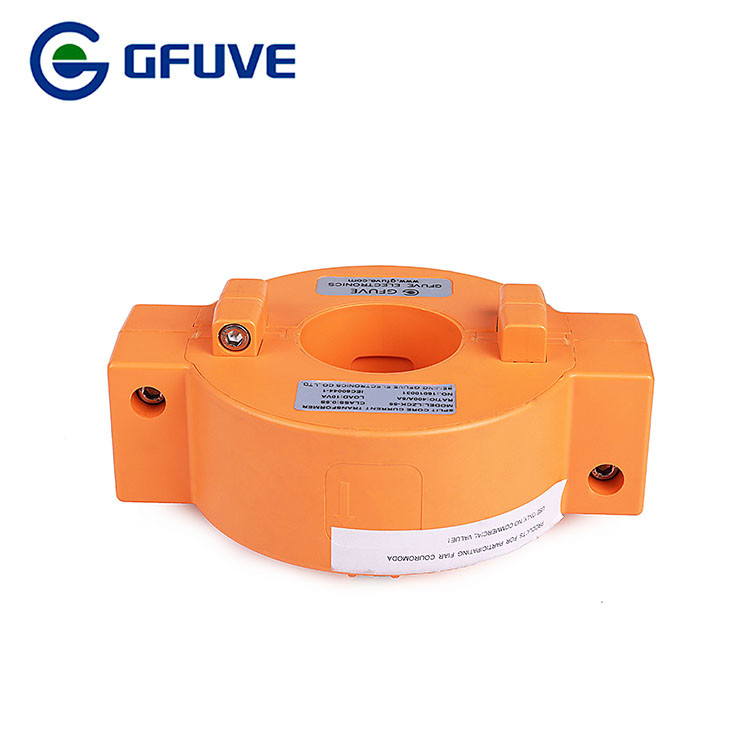

LZCK-36 OUTDOORS SPLIT CORE CURRENT TRANSFORMER
Description
The model LZCK-36 outdoor split core current Transformer are applicable for AC power system 35kV and measurement of current
of power supply equipment below 10KV also can be used for microcomputer protection. And the Transformer is compatible
with Distribution Transformer Monitor and provides high quality power parameter quality signal for the monitor to control,
measure and monitor the energy quality and so on in grid system. The LZCK-36 split core current transformer applies to the outdoor
electric power system with frequency 50Hz or 60Hz, its ingress protection is IP68. This type of current transformer employs
imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and
can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case(ABS or PC)
which is high accuracy, fifire-proof, ultraviolet-proof and explosion-proof, maintenance-free, stable and reliable performance, easy installation, etc.
| Technical parameters | |
|---|---|
| Standards |
IEC60044-1; IEC 61869-2; NTC 2205; ANSI/IEEE C57.13
|
| Accuracy Class |
0.5S, 0.5%, 1%, 3% (IEC61869 standard)
|
| Range of primary rated current | 100-1000A |
| Range of Rated load | ≤10VA |
| Rated frequency | 50/60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 150%I1n |
| Secondary winding power frequency withstand voltage | 3kV, 1min |
| Safety Factor Rating | (FS) <10 |
| Output signal | 1A, 5A, 333mV, 1V or 5V(customized) |
|
Insulation Class
|
E |
|
Flame retardant ABS and UV plastic shell inside, jaw waterproof apron.
|
|
| Mechanical parameters | |
| Aperture (mm) | Φ36 |
| Dimensions (W×D×H) (mm) | 128×120×85.5 |
|
Length of Cable
|
2.5 M(standard), 5M, 10M or customized
|
|
Cable information
|
2*4mm² ,Voltage: 450/750V
|
| Weight (kg) | 2 |
|
Color
|
Black, orange or customized
|
| Working conditions | |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +70°C |
| Ingress Protection |
IP68 ( IEC 60529)
|
| Environment | outdoors or indoors |
| The Height of above sea level | 0- 3000m |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
| Type |
LZCK-36(2.5m cable)
|
|||
|---|---|---|---|---|
|
Purpose
|
Measuring current transformer
Accuracy class and rated load(VA)
|
|||
|
Ratio
|
||||
|
I1/I2
|
0.5S | 0.5 | 1 | 3 |
| 100/1 | 1.5 | 2.5 | ||
| 150/1 | 1.5 | 2.5 | ||
| 200/1 | 2.5 | 2.5 | 2.5 | 3 |
| 250/1 | 2.5 | 2.5 | 2.5 | 3 |
| 300/1 | 2.5 | 2.5 | 2.5 | 5 |
| 400/1 | 5 | 5 | 5 | 5 |
| 500/1 | 5 | 5 | 5 | 5 |
| 600/1 | 5 | 5 | 5 | 5 |
| 100/5 | 2.5 | 2.5 | ||
| 150/5 | 2.5 | 2.5 | ||
| 200/5 | 2.5 | 2.5 | 2.5 | 3 |
| 250/5 | 2.5 | 2.5 | 2.5 | 5 |
| 300/5 | 5 | 5 | 5 | 5 |
| 400/5 | 10 | 10 | 10 | 10 |
| 500/5 | 10 | 10 | 10 | 15 |
| 600/5 | 10 | 10 | 10 | 15 |
| 800/5 | 10 | 10 | 10 | 15 |
| 1000/5 | 10 | 10 | 10 | 15 |
| Model | Primary rated current | Rated load | Aperture (mm) | Description (mm) | Weight (kg) | Material | Water-proof |
|---|---|---|---|---|---|---|---|
| LZCK-55 | 100-1500A | ≤10VA | φ55 | 180×138×52 | 2 | PC | IP65 |
| LMCK185-10 | 300-3000A | ≤25VA | φ185 | 350×283×55 | 4.5 | PC | IP65 |
| LZCK310-10 | 300-600A | ≤10VA | φ50 | φ50 x φ110 x 32 | 1 | Resin | silicon case (option) |
| LZCK322-10 | 30-600A | ≤10VA | φ50 | φ50 x φ110 x 52 | 1.6 | Resin | silicon case (option) |
| LZCK350-10 | 20-600A | ≤25VA | φ50 | φ50 x φ110 x 105 | 3.1 | Resin | silicon case (option) |
| LZCG530-10 | 30-600A | ≤20VA | φ45 | φ45 x φ120 x 65 | 2.1 | Resin | silicon case (option) |
