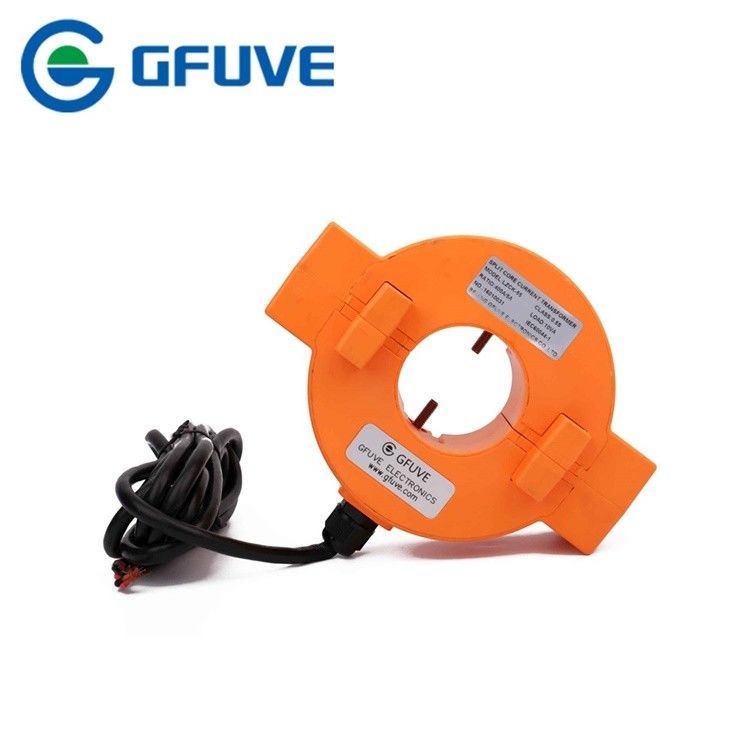

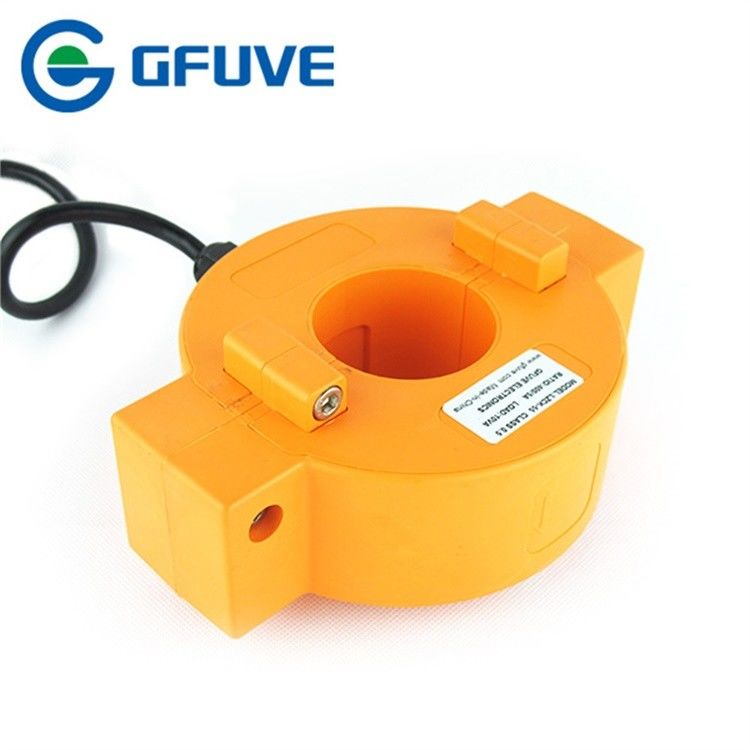

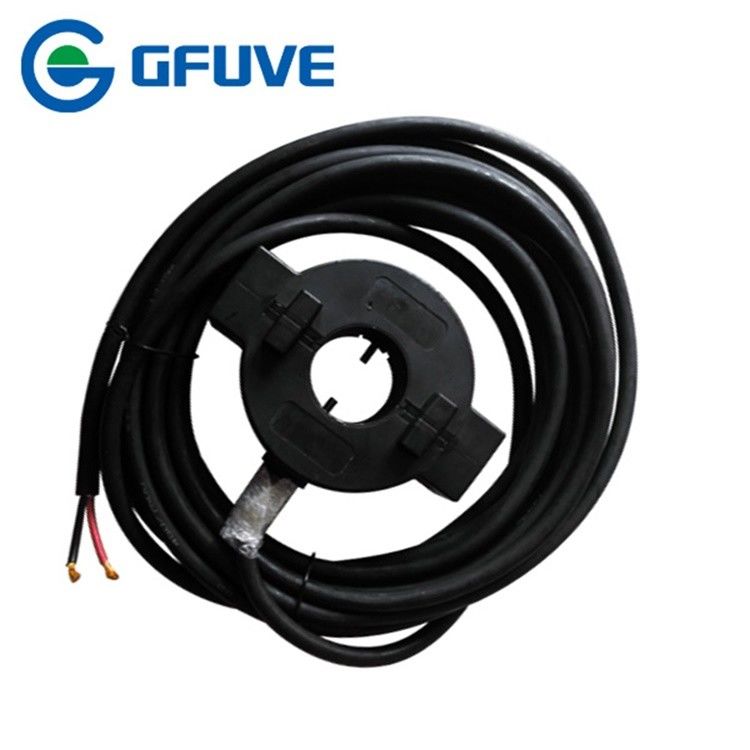

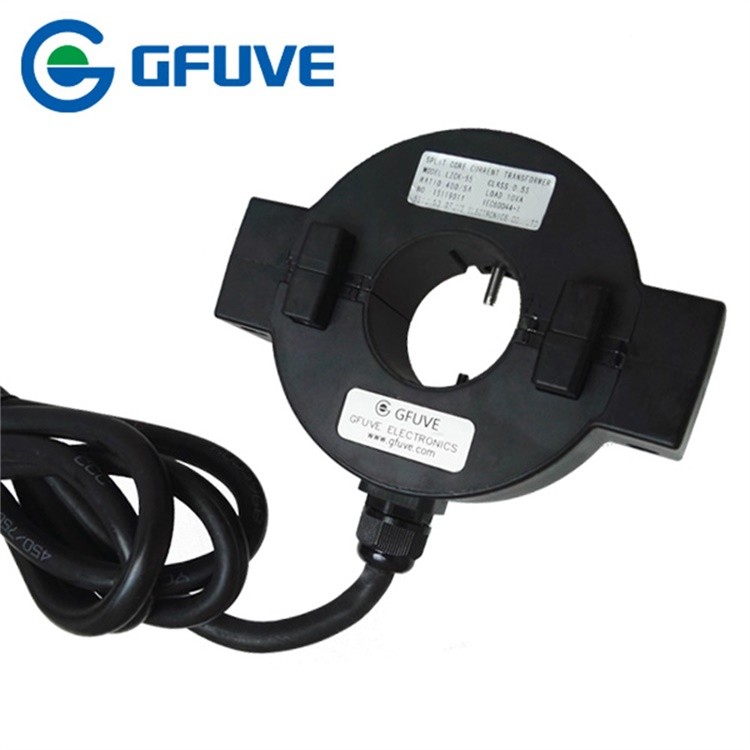

LZCK-55 GFUVE 100A/5A IP67 Outdoor installation Split Core Clamp On Current Transformer
Clamp-On Current Transformer's are designed for fast and easy installation. Clamp-On CT uses Permalloy Magnetic Core or Silicon Amorphous Core, with characteristics of small size. high precision, good stability and strong anti-interference ability.
Clamp on current transformers are used for long term energy studies which includes electric power quality monitoring device. It is ideal for power and energy measurement.
Clamp on current transformer is a high-precision AC current converter, and can meet a variety of measuring instruments, It can be used along with many kinds of instruments and devices, such as energy meter spot calibrator, multifunctional meter, oscilloscope, digital multimeter, dual clamp Ground resistance tester, dual clamp phase volt ammeter. Parameters will be measured and compared without power supply cut-off on account of the split core.
Clamp-On Current Transformer is the one-handed operating solution for temporary energy audits or long-term energy studies. The GFUVE P50 1000A Clamp on ct is specifically designed to offer broad utility in a compact shape. These CTs deliver high-accuracy, high-sensitivity, versatility, and low phase shift.
IP67 Spit core clamp on current transformers are the current-sensing units of the power system. Split core current transformers are used at generating stations, electrical substations, and in industrial and commercial electric power distribution.
LZCK-55 waterproof outdoor split core current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case(ABS or PC) which is flame retardance anti-moisture, stable performance, no maintenance.
New magnetic material is taken to be the core of the current transformer, which has high magnetic permeability, low saturation magnetization and good stability. Therefore, the measuring accuracy is higher and the instrument security factor is lower. Since the high quality silicon processed by advanced technology is taken to be the core of the protection windings, which assured the accuracy limit factor is higher.
The semicircular ring core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance.Small size, light weight, small footprint, fixed in the ring network switchgear cable.The cable can cross the current transformer through its internal poles quickly and uniformly.
The Cast Resin Straight-Through Current Transformer can be divided several kinds according to the various current ratio, accuracy and rated loads. The specific parameters are showed in the corresponding to each model parameter tables.
