Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker

Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker
Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker
Basic Information
Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CNAS, IEC61869-1,3
Model Number: JSZW-10WF
Minimum Order Quantity: 1PC
Price: negotiate
Packaging Details: STANDARD EXPORT WOODEN BOX
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS/MONTH
Get Best Price Contact Now
KEYWORD: OUTDOOR THREE PHASE VOLTAGE TRANSFORMER RATIO: 8.4KV/120V√3/120V/√3/120V
VOLTAGE LEVEL: 10KV, 8.4KV, 6KV, 3KV BURDEN: 200VA
INSTALLATION: OUTDOOR STANDARD: IEC 61869-1,3; ANSI/IEEE C57.13
WEIGHT: 158KG COLOR: RED
FUNCTION: WITH ZERO SQUENCE PROTECTION PT USAGE: 3 Phase Potential Transformer
High Light:

electromagnetic voltage transformer

,

power voltage transformer

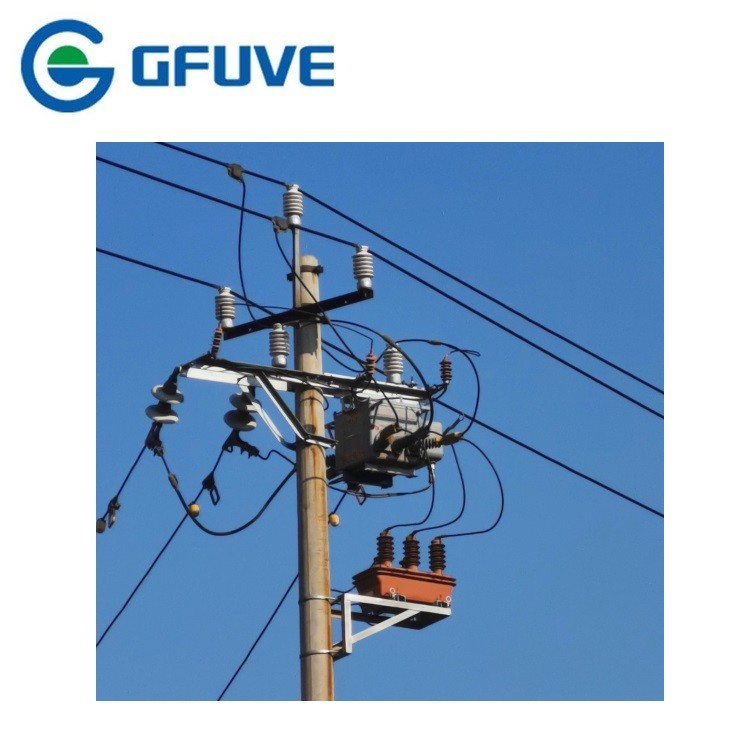

JSZW-10WF FIVE LEG TYPE OUTDOOR THREE PHASE VOLTAGE TRANSFORMER FOR CIRCUIT BREAKER





The type JSZW-10WF Outdoor three phase voltage transformer is single phase and epoxy resin silicon rubber insulated product, it's used for metering electric energy, voltage control and relay protection in 50/60HZ rated voltage 10kV electric system; and also it can be used for medial voltage AIS, or can be used for medial voltage switchgears. They can operate in all kinds of environments (such as wide range temperature (-50~70℃), high altitude, high humidity, high pollution or salt).



Medium Voltage Product Outdoor voltage transformers Description ... configuration in a three-phase system. one terminal of each secondary winding and one of the open-delta connected terminals must be earthed during the transformer operation.- ... Voltage transformers: Outdoor
V L is the line-to-line voltage, and V P is the phase-to-neutral voltage. A transformer can not act as a phase changing device and change single-phase into three-phase or three-phase into single phase. To make the transformer connections compatible with three-phase supplies we need to connect them together in a particular way to form a Three Phase Transformer Configuration.

PARAMETERS

Technical parameters　
Standards IEC60044-2; IEC 61869-1,3; ANSI/IEEE C57.13
Rated Voltage 10KV, 6KV
Rated load ≤3×600VA
Secondary voltage output 100V, 110V, 120V, 220V
Rated frequency 50Hz or 60Hz
Cosø 0.8 (lag)
Phase number Three phase
Phase number Three phase
With fuse Yes, 0.5A
Using type Outdoor
Class of pollution IV
Mechanical parameters　
Material Epoxy resin
Weight (kg) 158
Operating conditions　
Operating temperature -40°C to +60°C
Daily average temp <+40°C
Storage temperature -50°C to +70°C
Altitude <1000 meters
Condition No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

TECHNICAL PARAMETERS

Model Rated voltage
radio(V)		 Accuracy class and Accuracy class combination
rated secondary output(VA)		 Limited output
(VA)		 Rated insulation level(KV) Surface creepage distance
(mm)		 Once fuse
(A)		 Wt
(KG)
JSZW-3WF 3000/√3 100/√3 /100
0.2/6P(3P)---3×30/100
0.5/6P(3P)---3×60/100
1/6P(3P)---3×100/100
3/6P(3P)---3×200/100		 3×600 3.6/23/40 570 0.5 155
JSZW-6WF 6000/√3 100/√3 /100 7.2/32/60
JSZW-10WF 10000/√3 100/√3 /100 12/42/75 0.2
JSZW-6WF 6000/√3 100/√3 100/√3 /100 0.2/0.2/6P(3P)---3×15/3×15/100
0.2/0.5/6P(3P)---3×15/3×15/100
0.5/0.5/6P(3P)---3×30/3×30/100		 3×200/3×200 7.2/32/60 0.5
JSZW-10WF 10000/√3 100/√3 100/√3 /100 12/42/75 0.5

Five Leg Type Outdoor Voltage Transformer Three Phase For Circuit Breaker 0
