Beijing GFUVE Instrument Transformer Manufacturer Co.,Ltd.
an exclusive current transformer, split core current transformer, current clamp & voltage transformer manufacturer.
| Place of Origin: | BEIJING, CHINA |
|---|---|
| Brand Name: | GFUVE |
| Certification: | CE, UL, ISO9001 |

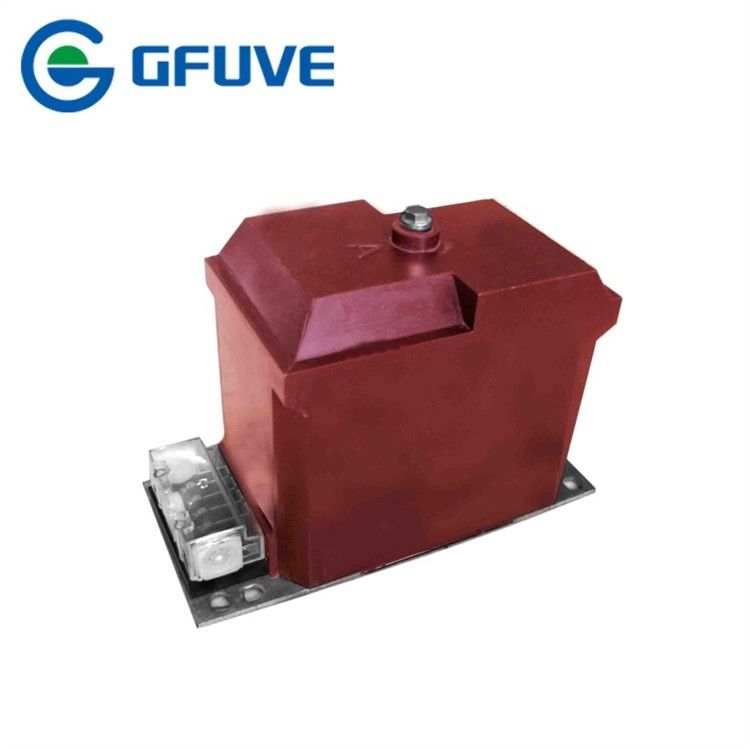

| Model Number: | GFJDZ1053-10A |
| Minimum Order Quantity: | 3PCs |
| Packaging Details: | standard wooden package |
| Delivery Time: | 5-8 work day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000+PC+per month |
| Standards: | IEC60044-2; IEC 61869-1,3; ANSI/IEEE C57.13 | Rated Voltage: | 10KV, 6KV, 3KV |
|---|---|---|---|
| Rated Load: | 150VA | Rated Frequency: | 50Hz Or 60Hz |
| Rated Insulation Level: | 12/42/75KV, 7.2/32/60KV, 3.6/25/40KV | Material: | Epoxy Resin |
| Weight: | 18.5 | Usage: | Electronic,Instrument |
| Coil Structure: | Toroidal | Phase: | Single |
| Type: | Dry-type | Core Material: | Silicon Steel Core |
| High Voltage: | 6KV To 35KV | ||
| High Light: | electromagnetic voltage transformer,power voltage transformer |
||
| Technical parameters | |
|---|---|
| Standards | IEC60044-2; IEC 61869-1,3; ANSI/IEEE C57.13 |
| Rated Voltage | 10KV, 6KV, 3KV |
| Rated load | ≤150VA |
| Rated frequency | 50Hz or 60Hz |
| Cosø | 0.8 (lag) |
| Phase number | Single |
| Rated insulation level | 12/42/75KV, 7.2/32/60KV, 3.6/25/40KV |
| Class of pollution | II |
| Mechanical parameters | |
| Material | Epoxy resin |
| Weight (kg) | 18.5 |
| Operating conditions | |
| Operating temperature | -25°C to +55°C |
| Daily average temp | <+40°C |
| Storage temperature | -40°C to +70°C |
| Altitude | <1000 meters |
| Condition | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
| Model | Rated Voltage Ratio(KV) | Accuracy class and Rated output (VA) |
Limiting Therminal Output(VA) | |||||
|---|---|---|---|---|---|---|---|---|
| 0.2 | 0.5 | 1 | 3 | 3P | 6P | |||
| GFJDZ1053-10A | 10/0.1 | 15 | 30 | 60 | 150 | 50 | 50 | 200 |
| GFJDZ1053-6A | 6/0.1 | |||||||
| GFJDZ1053-3A | 3/0.1 | |||||||
