ABS Cover Split Core Current Transformer CT 2.5VA Burden 0.5% High Accuracy

ABS Cover Split Core Current Transformer CT 2.5VA Burden 0.5% High Accuracy
ABS Cover Split Core Current Transformer CT 2.5VA Burden 0.5% High Accuracy ABS Cover Split Core Current Transformer CT 2.5VA Burden 0.5% High Accuracy ABS Cover Split Core Current Transformer CT 2.5VA Burden 0.5% High Accuracy ABS Cover Split Core Current Transformer CT 2.5VA Burden 0.5% High Accuracy ABS Cover Split Core Current Transformer CT 2.5VA Burden 0.5% High Accuracy ABS Cover Split Core Current Transformer CT 2.5VA Burden 0.5% High Accuracy
Basic Information
Place of Origin: China
Brand Name: GFUVE
Certification: IEC,ISO
Model Number: FU - 32
Minimum Order Quantity: 3 Pieces
Price: Negotiable
Packaging Details: Standard Export Wooden Box
Delivery Time: 3 - 7 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 Pieces per Month
Get Best Price Contact Now
Nominal Input Current（Primary Current）: 100A/150A/200A/300A/400A/500A/600A Output Signal: 1A Or 5A ,333mV AC Or 100mV-2V Optional
Holding Wire Diameter: φ32mm Burden: 2.5VA
Dielectric Strength: 3KV 50Hz/60Hz At 1 Minute Max. Jaw Opening: 32 Mm
High Light:

ring core current transformer

,

donut type current transformer





ABS Cover Split Core Current Transformer CT With Accuracy 0.5%





The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.





Parameters



Technical parameters 　
Standards IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13
Ratio 400: 5 or 200:5 , customized
Nominal input current(Primary current) 100A/150A/200A/300A/400A/500A/600A
Overload withstand 1.2 times rated current continuously
Accuracy 0.2%, 0.5 %, 1%
System Voltage 720V(0.72kV)
Output signal 1A or 5A
333mV AC or 100mV-2V optional
Burden 2.5VA
Frequency range 40 Hz-500 Hz
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Output Standard 2.5 meter cable
Max. jaw opening 32 mm
Mechanical parameters 　
Dimensions (W×D×H) (mm) 110mm x 130mm x 41 mm
Weight (g) 700
Operating conditions 　
Operating temperature -25 to +55°C
Relative Humidity 0-85% non-condensing
Altitude <3500 meters
Condition No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

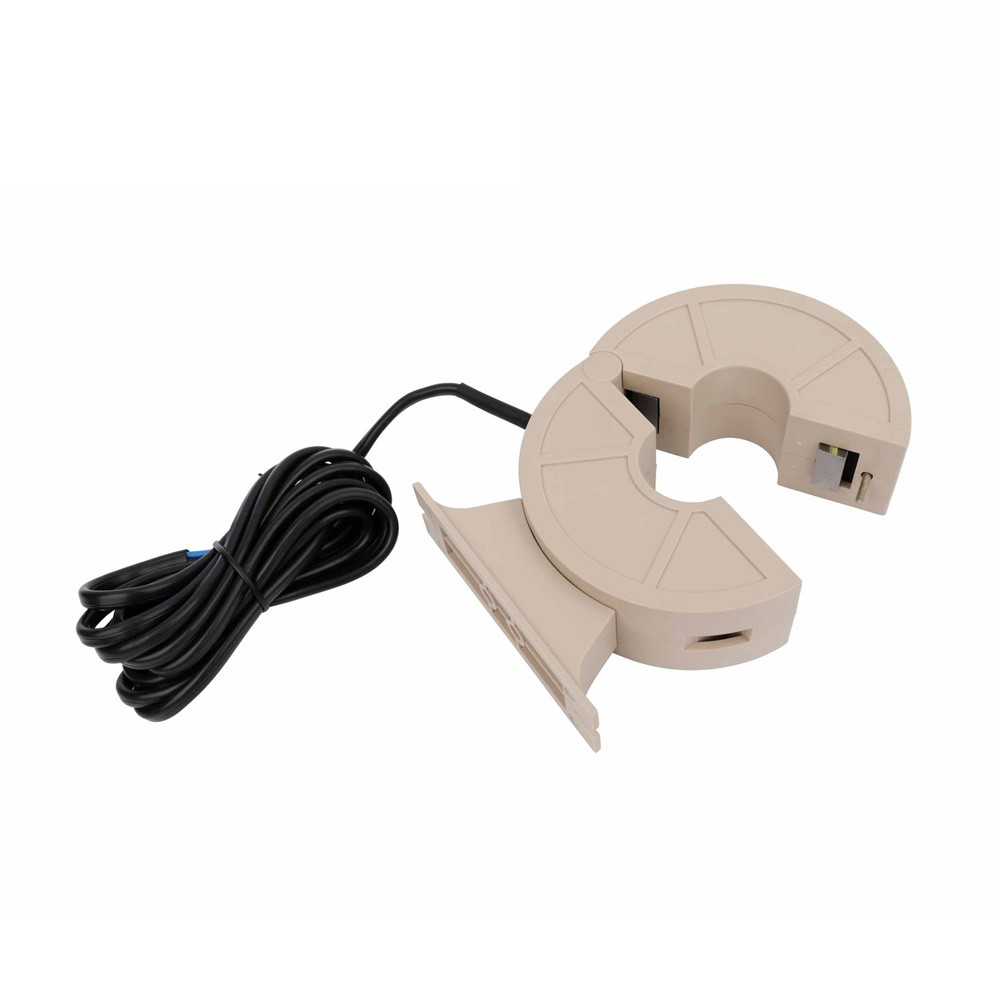

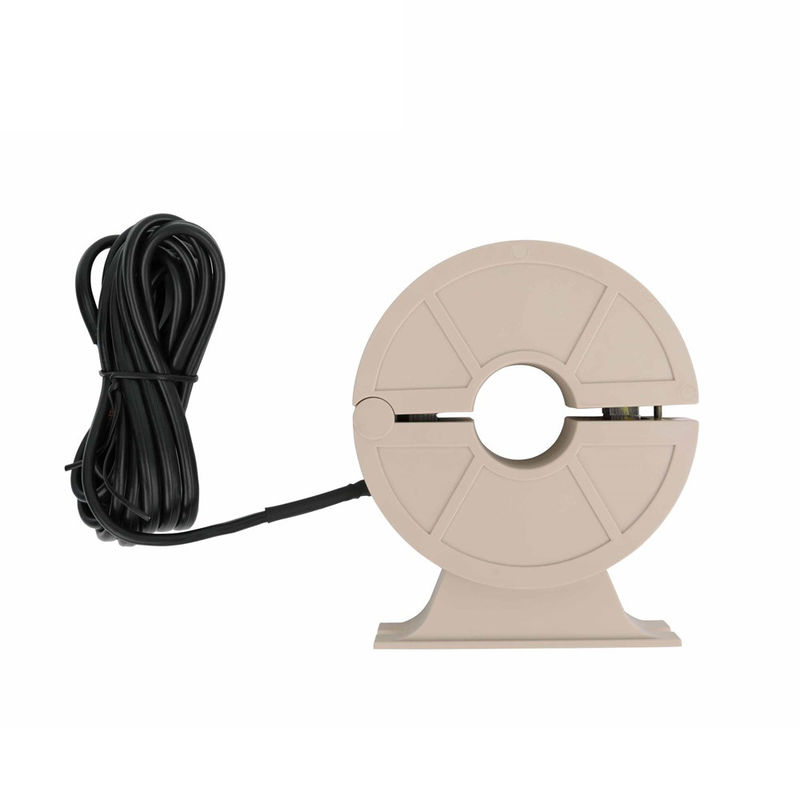

The Product Picture:



ABS Cover Split Core Current Transformer CT 2.5VA Burden 0.5% High Accuracy 0
