32mm Clamp Split Core Current Transforme , Open Core Transformer 200/5A Indoor

32mm Clamp Split Core Current Transforme , Open Core Transformer 200/5A Indoor
32mm Clamp Split Core Current Transforme , Open Core Transformer 200/5A Indoor 32mm Clamp Split Core Current Transforme , Open Core Transformer 200/5A Indoor 32mm Clamp Split Core Current Transforme , Open Core Transformer 200/5A Indoor 32mm Clamp Split Core Current Transforme , Open Core Transformer 200/5A Indoor 32mm Clamp Split Core Current Transforme , Open Core Transformer 200/5A Indoor 32mm Clamp Split Core Current Transforme , Open Core Transformer 200/5A Indoor
Basic Information
Place of Origin: China
Brand Name: GFUVE
Certification: IEC,ISO
Model Number: FU - 32
Minimum Order Quantity: 3 Pieces
Price: Negotiable
Packaging Details: Standard Export Wooden Box
Delivery Time: 3 - 7 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 Pieces per Month
Get Best Price Contact Now
Ratio: 400: 5 Or 200:5 , Customized Nominal Input Current（Primary Current）: 100A/150A/200A/300A/400A/500A/600A
Overload Withstand: 1.2 Times Rated Current Continuously Accuracy: 0.2%, 0.5 %, 1%
System Voltage: 720V(0.72kV) Output Signal: 1A Or 5A ,333mV AC Or 100mV-2V Optional
Highlight:

ring core current transformer

,

split core current transducer





FU - 32 200/5A Indoor 32mm Clamp on Split Core Current Transformer CT Output 333mV







The GFUVE FU-series split core CTs are compact and low cost current transformers with high accuracy.



Features


1 . Faster installation
2 . Safe and easy installations
3 . Holding wire diameter: φ32mm
4 . Ratio’s ranging from 60/1A to 600/5A







Parameters



Technical parameters 　
Standards IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13
Ratio 400: 5 or 200:5 , customized
Nominal input current(Primary current) 100A/150A/200A/300A/400A/500A/600A
Overload withstand 1.2 times rated current continuously
Accuracy 0.2%, 0.5 %, 1%
System Voltage 720V(0.72kV)
Output signal 1A or 5A
333mV AC or 100mV-2V optional
Burden 2.5VA
Frequency range 40 Hz-500 Hz
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Output Standard 2.5 meter cable
Max. jaw opening 32 mm
Mechanical parameters 　
Dimensions (W×D×H) (mm) 110mm x 130mm x 41 mm
Weight (g) 700
Operating conditions 　
Operating temperature -25 to +55°C
Relative Humidity 0-85% non-condensing
Altitude <3500 meters
Condition No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

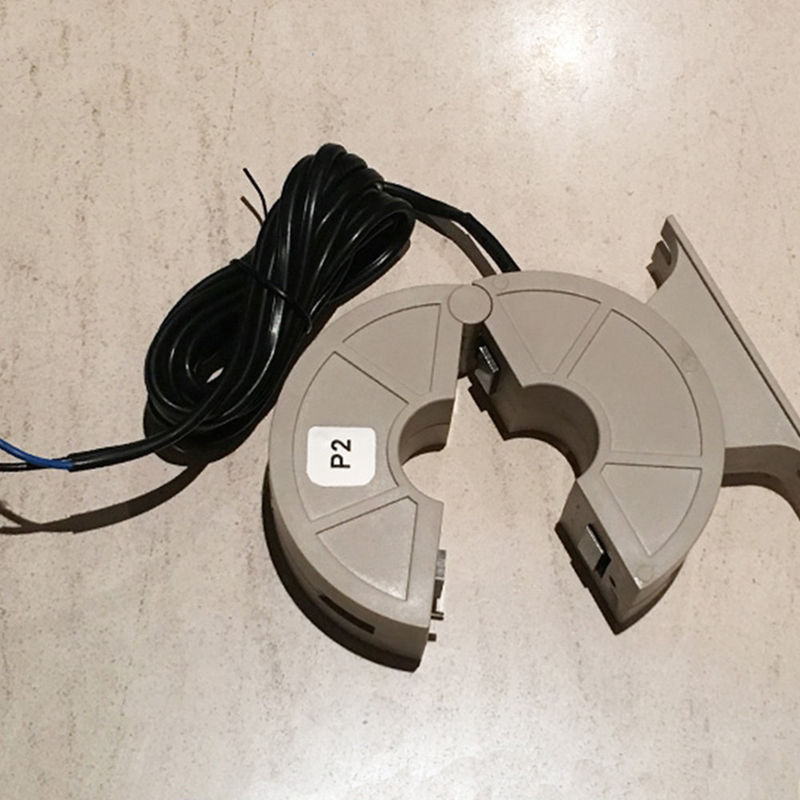

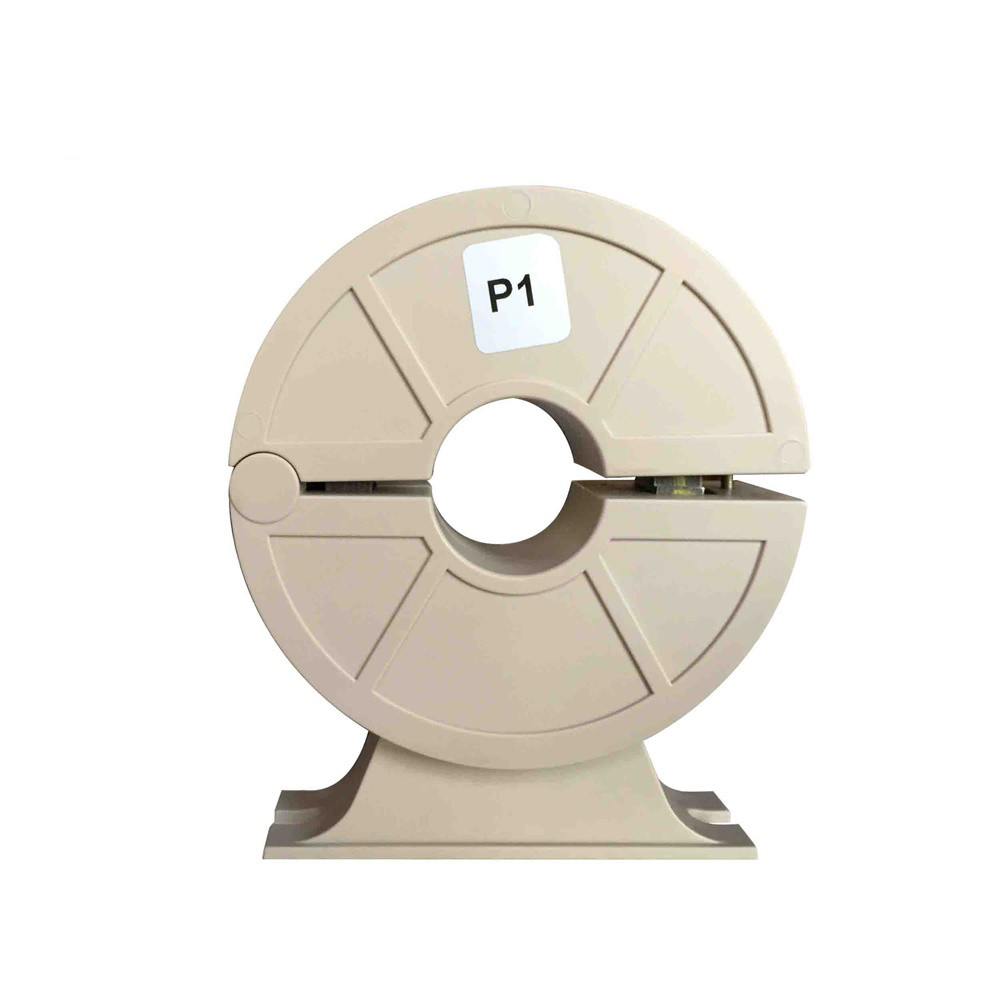

The Product Picture:



32mm Clamp Split Core Current Transforme , Open Core Transformer 200/5A Indoor 0
