Beijing GFUVE Instrument Transformer Manufacturer Co.,Ltd.
an exclusive current transformer, split core current transformer, current clamp & voltage transformer manufacturer.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GFUVE |
| Certification: | CE ISO |
| Model Number: | TEST-901 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Industrial Case |
| Payment Terms: | Western Union, T/T, L/C, MoneyGram |
| Supply Ability: | 200Sets/Month |
| Name: | CT PT Ana;yzer | Accuracy: | Accuracy |
|---|---|---|---|
| Current Output (AC): | 1000A·5V Or 500A·10V | Capacity: | 5KVA |
| Range: | 0-1100A | Resolution: | 0.1A |
| High Light: | transformer test instruments,circuit breaker analyzer |
||

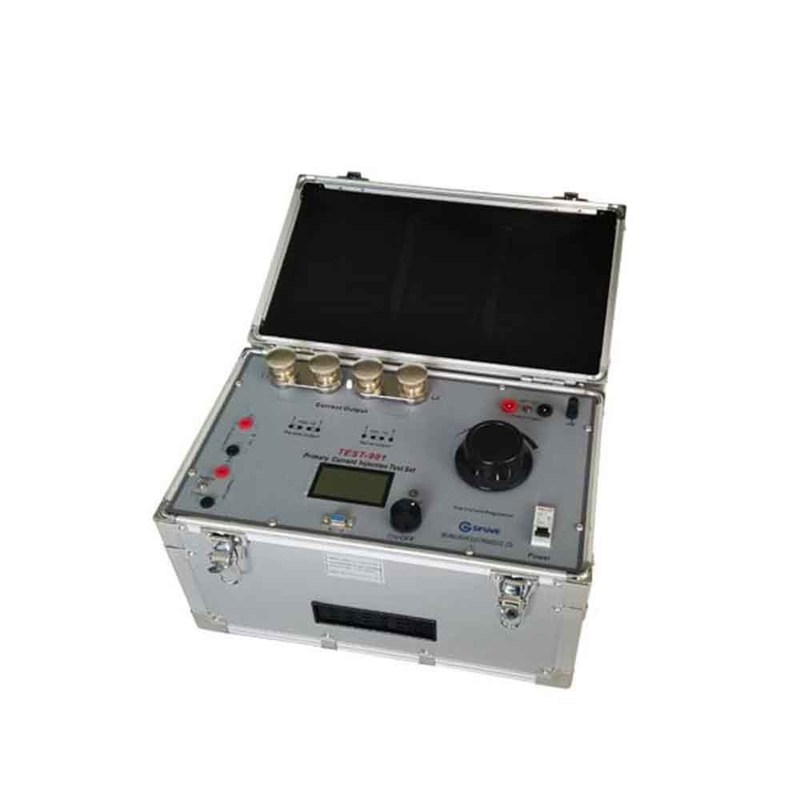

High-current generator is a necessary equipment in all walks of life in electrical commissioning needs
large current place, used in power plants, substations, electrical manufacturers and scientific research,
laboratory and other units, belonging to short-term or intermittent working system, It has a small size, light
weight, good performance, easy to use and maintenance features.
| Electrical parameters | |
|---|---|
| Accuracy | ±0.5% |
| Power Supply(AC) | 220V±10%·25A, 50Hz/60Hz or 110V±10%·50A, 50Hz/60Hz |
| Current Output (AC) | 1000A·5V or 500A·10V |
| Capacity | 5KVA |
| The current output waveform distortion | ≤5% |
| Dual protection | overload electronic protection and software protection |
| Primary current | |
| Range | 0-1100A |
| Resolution | 0.1A |
| Accuracy | <0.5% |
| Secondary measurement | |
| Range | 0-6A |
| Resolution | 0.001A |
| Accuracy | <0.5% |
| Current duration | |
| 1000A range | 1000A 2-3minutes 500A 3-6minutes |
| 500A range | 500A 2-3minutes |
| With timer | |
| Range | 0.0001～999.99S |
| Resolution | 0.001S |
| Accuracy | <0.5%±5 words |
| Mechanical parameters | |
| Dimensions (W×D×H) (mm) | 430×260×260 |
| Weight(kg) | 25 |
| Environmental conditions | |
| Temperature | -10°C to 40°C |
| Relative humidity | ≤80% |
