|Name:||1000A Clamp On Current Transformer||Application:||Electronics Power Quality Analyzer|

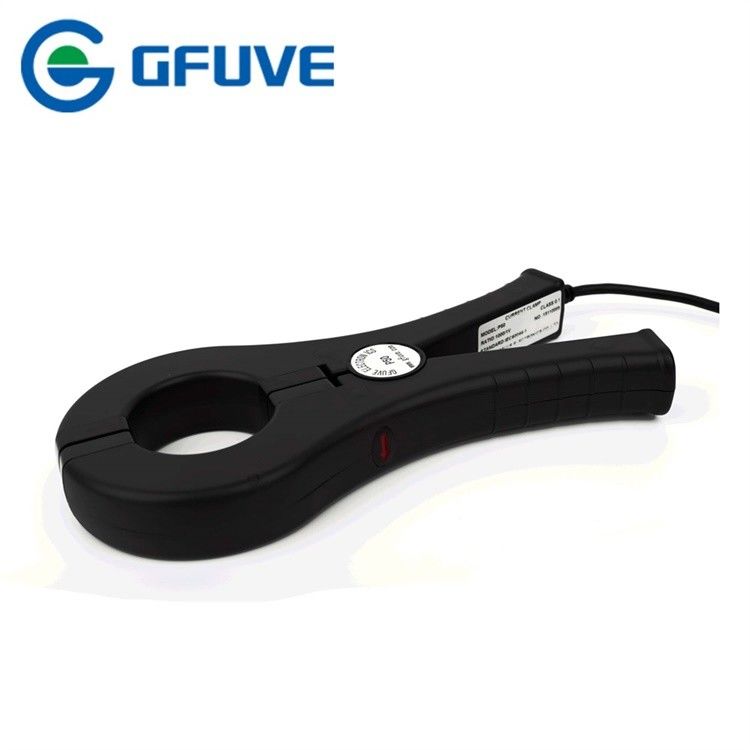

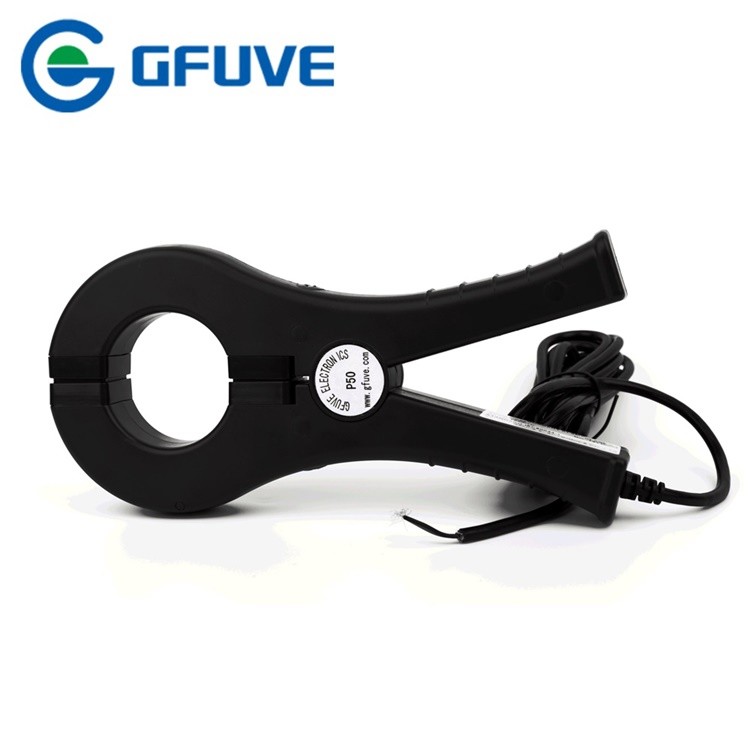

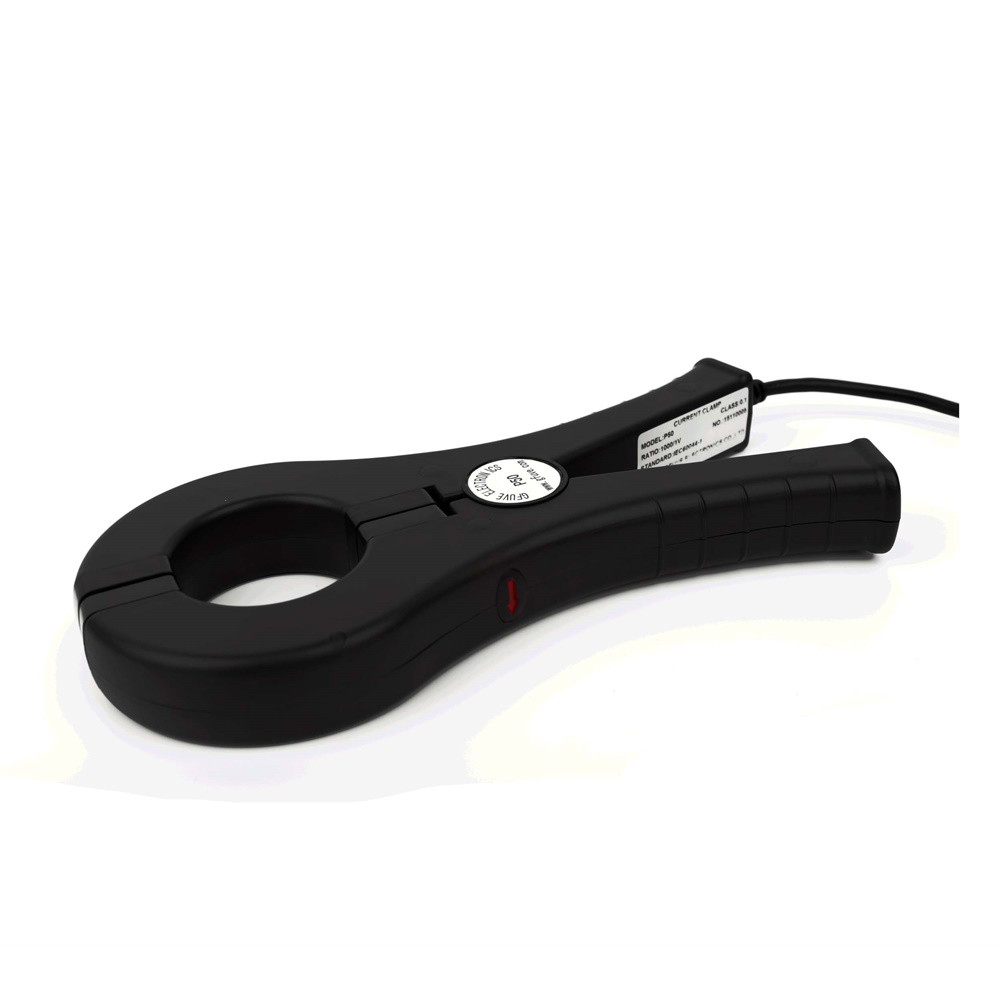

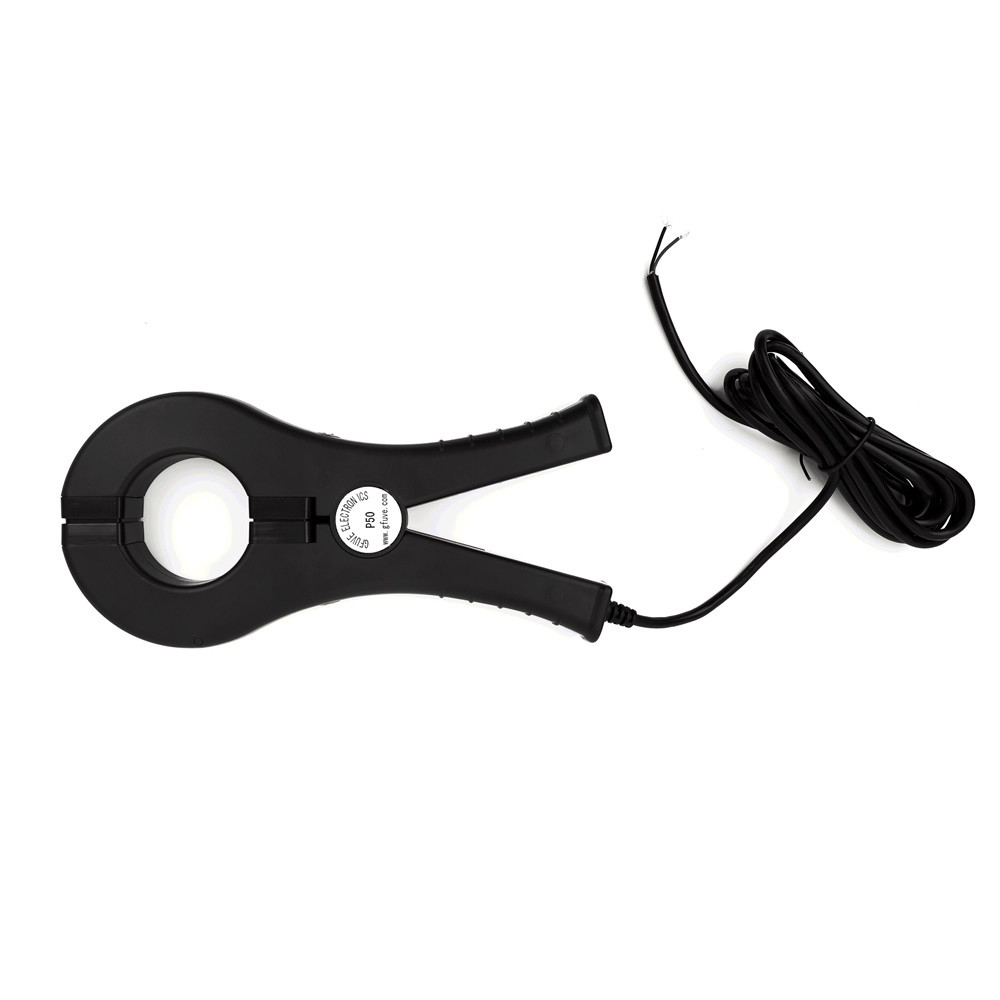

P50-3 Electronics power quality analyzer 1000A Clamp On Current Transformer Amp Clamp 40Hz - 2000Hz For Voltage Output
Current clamps are typically used to read the magnitude of alternating current (AC) and, with additional instrumentation, the phase and waveform can also be measured.
The GFUVE AC-only Current Sensor P50-3 apply current measurement for direct readings on DMM's, loggers, Best-in-class bandwidth up to 200mHz. They are built to the latest safety and performance standards, and carry the CE mark.
GFUVE Clamp-on Current Transformer are designed for fast and easy installation.Clamp-on Current Transformer uses Permalloy magnetic core or Silicon and amorphous core, with characteristics of small size, high precision, good stability and strong anti-interference ability.
Why Choose GFUVE Current Probes. The Most Comprehensive Line of Current Probes. GFUVE ® the world's largest supplier, offers current probe models capable of accurately measuring from the low µA to kA range. A wide variety of configurations and jaw sizes are available. Probe types include iron core, Hall Effect, Flux Gate, and Rogowski etc.
GFUVE Current transformer clamp meters are equipped with rigid jaws of made of ferrite iron. The jaws are individually wrapped by coils of copper wire. Together, they form a magnetic core during measurements. Their basic operation is like that of a transformer. It works with one primary turn, or winding, which in nearly all cases is the conductor .
Measurement range of 1mA to 1200A AC
Large jaw opening accommodates conductors up to two 500kcmil
Improved ergonomic design and easy operation
High content nickel metal core
Conforms to EN 61010, 600V CAT III
Low phase shift for power measurement
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
UL, CE mark
Power quality measuring
Large industrial loads
Measuring around cable bundles
Power load monitoring
Energy meter calibrator
|Ratio||1000: 1 or 2000:1 (customized)|
|Accuracy class||0.1%, 0.2%, 0.5%|
|Primary current||0 - 1000A AC|
|Secondary output||1mV/A AC, 5mV/A or (customized)|
|Max. Cont. Input current||1200A|
|Over voltage category||CAT III 600V|
|Output signal||333mV, 500mV,1V,2V,5V AC at nominal input current|
|Accuracy (1000A Range)|
|Phase Shift(1000A Range)|
|Dielectric strength||3KV 50Hz/60Hz at 1 minute|
|Temperature range||-20°C to +55°C|
|Output||2.5 meter cable with D01 connector|
|Max. voltage not insulated conductors||600 V|
|Standard||EN 61010-1, EN 61010-2-032, IEC60044-1|
|Output mode||Lead output (2.5m)|
|Dimensions (L x W x H) (mm)||102.9 x 219.6 x 28|
|Holding wire diameter (mm)||φ50|
|Max. jaw opening (mm)||50|
|Color||Gray or blue|
|Material||PC+ABS+Polycarbonate, UL94 V0|
|Model||Rate Current||Max Current||Secondary Voltage||Coil Ratio||Burden Resistance||Accuracy|
FAQ, following questions will help you to select the matched probe for your applications.
1. Please determine if you are measuring AC or DC?
GFUVE P50-3 is for AC measuring. If DC, we have hall effect models to suggest.
2. What is the maximum current you will measure?
P50-3 maximum current is 1200A
3. What size conductor will you clamp onto? This parameter determines the probe jaw size needed.
P50-3 can clamp conductor diameter size is 50mm
4. What type of probe output do you need or can you work with (mA, mV, A, AC, etc.)?
P50-3 can customize output with mA, mV. A, V.
5. What is the working voltage of the conductor to be measured?
GFUVE probes should be used below 600 volts
6. What type of termination do you need: jacks, leads or BNC?
P50-3 standard has 2.5meter leads. We can offer jacks or BNC… as options.
7. If you cannot find information you need or would like assistance, contact us today. We have designed many more probes than those shown in this catalog, and we manufacture in Beijing, China.
