2200A large Primary Current injection CT PT Analyzer for testing using

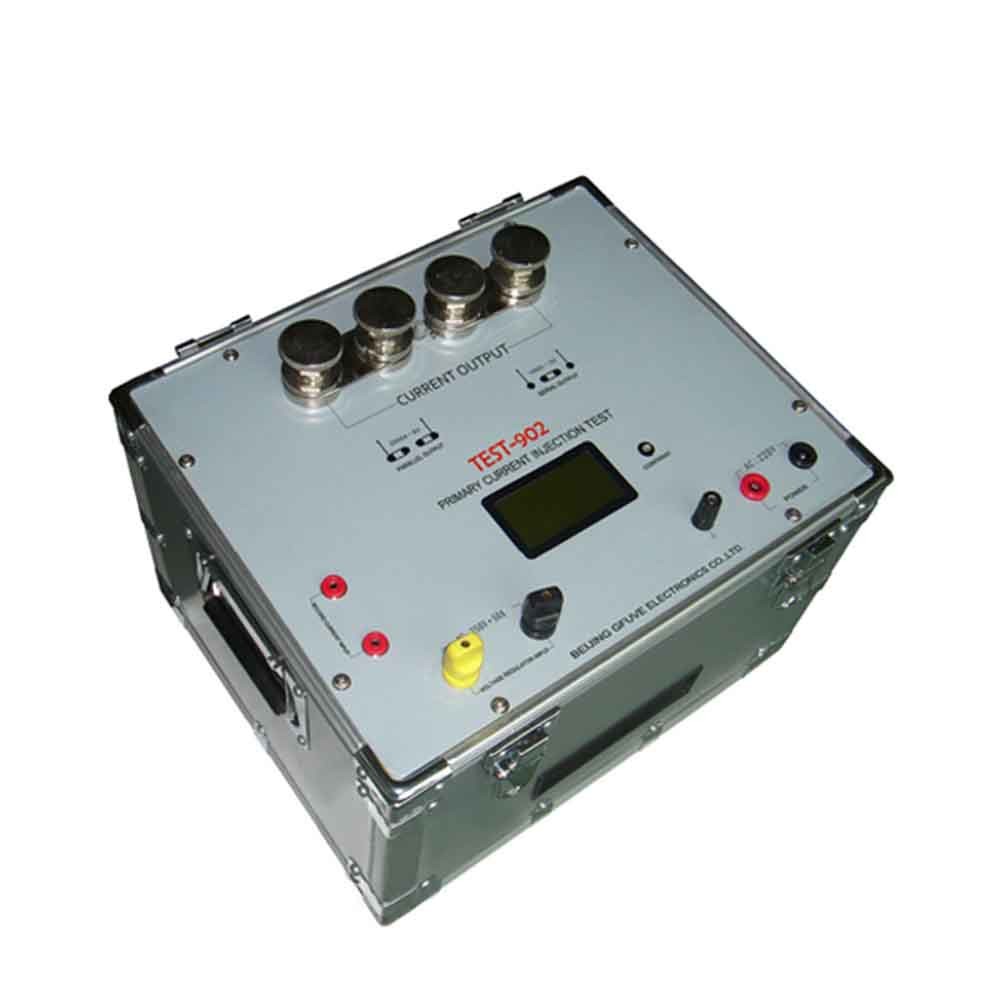

TEST-902 primary current injection test set adopts ARM chip to control the output process and large capacity of toroidal transformer. It is equipped with LCD screen display current meter, also showed primary current value, secondary current value, turn ratio and the action time. Aluminum alloy body with PC panel component the shell.TEST-902 is mainly applied to test CT turn ratio in the power system and the contact resistance etc, which need large current.
High-current generator is a necessary equipment in all walks of life in electrical commissioning needs
large current place, used in power plants, substations, electrical manufacturers and scientific research,
laboratory and other units, belonging to short-term or intermittent working system, It has a small size, light
weight, good performance, easy to use and maintenance features.
Power Supply (AC)
220V±10%·50A, 50Hz/60Hz or
Current Output (AC)
2000A·6V or 1000A·12V
The current output waveform distortion
Dimensions (W×D×H) (mm)
Control Host 35kg,

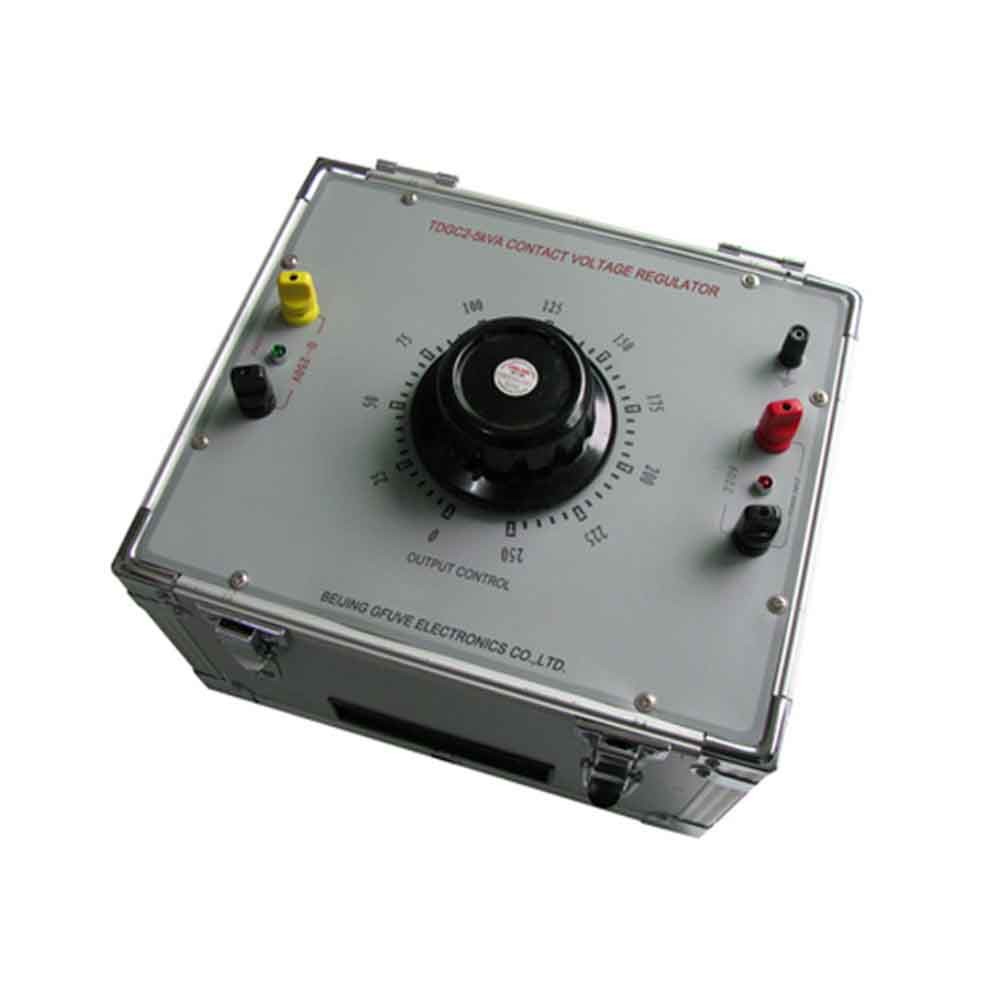

External voltage regulator weight 15kg
