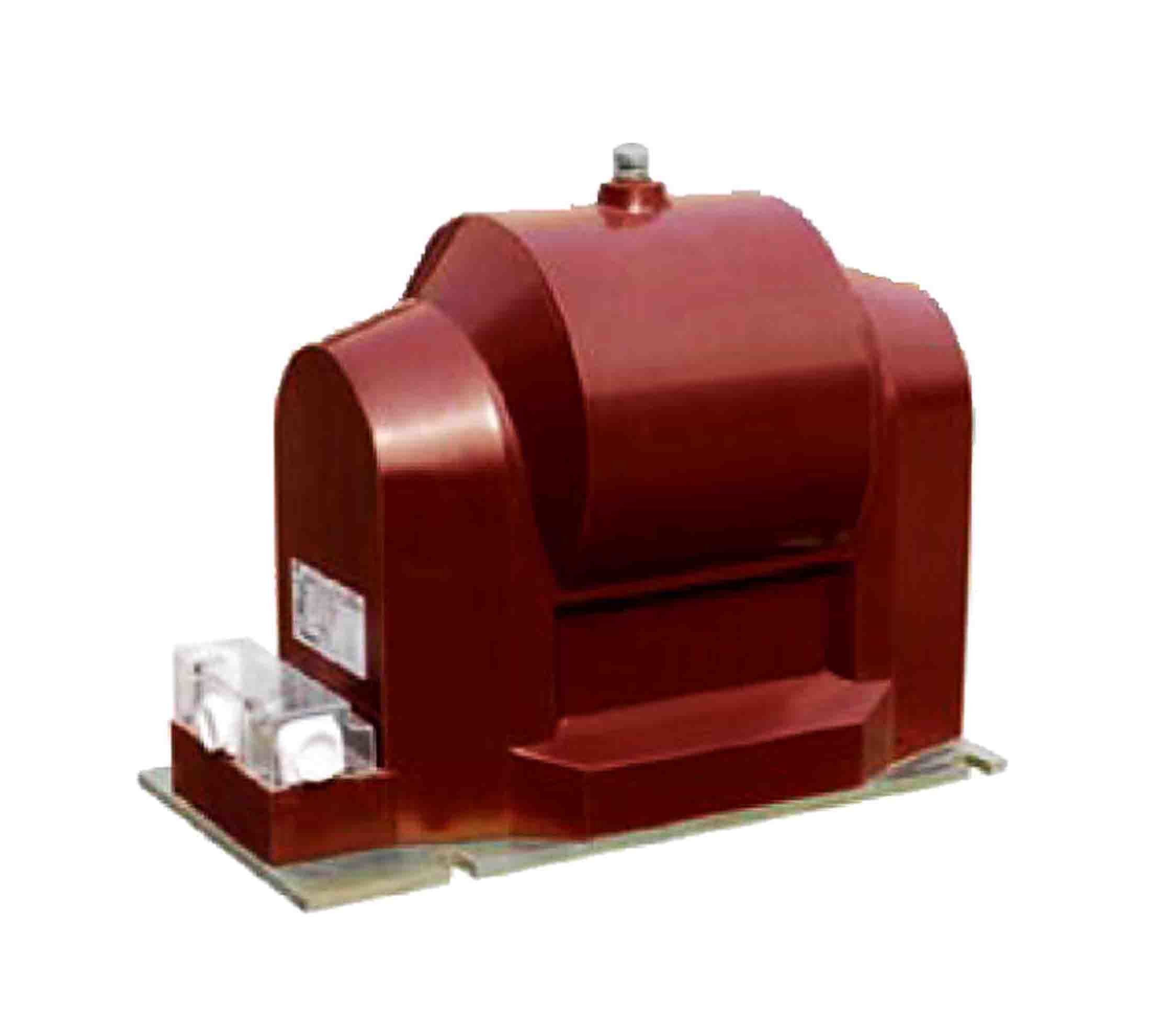

Medium Voltage 6 KV Electronic Voltage Transformer with international standards
GFUVE Electronics is a medium voltage potential transformer Manufacturer. manufactures an extensive line of cast epoxy resin insulated transformers across the voltage range of 10 kV . This mode GFJDZX1176-10C are outdoor Voltage Transformers with performance ratings coinciding with industry standard product offerings. GFUVE Electronics, because of product depth, familiarity with international standards and custom design capability can also design a solution to your specific needs.
IEC60044; IEC 61869; ANSI/IEEE C57.13
50Hz or 60Hz
Rated insulation level
Class of pollution
-25°C to +55°C
Daily average temp
-40°C to +70°C
No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.
This model of instrument voltage transformer includes two versions: JDZW-20 and JDZXW-20G. The units are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 24kV and below. They are used in indoor or outdoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
New magnetic material using
protection or measurement windings
Measurement accuracy is 0.2s higher.
Phase shift is stability
Designed life is 30years long
