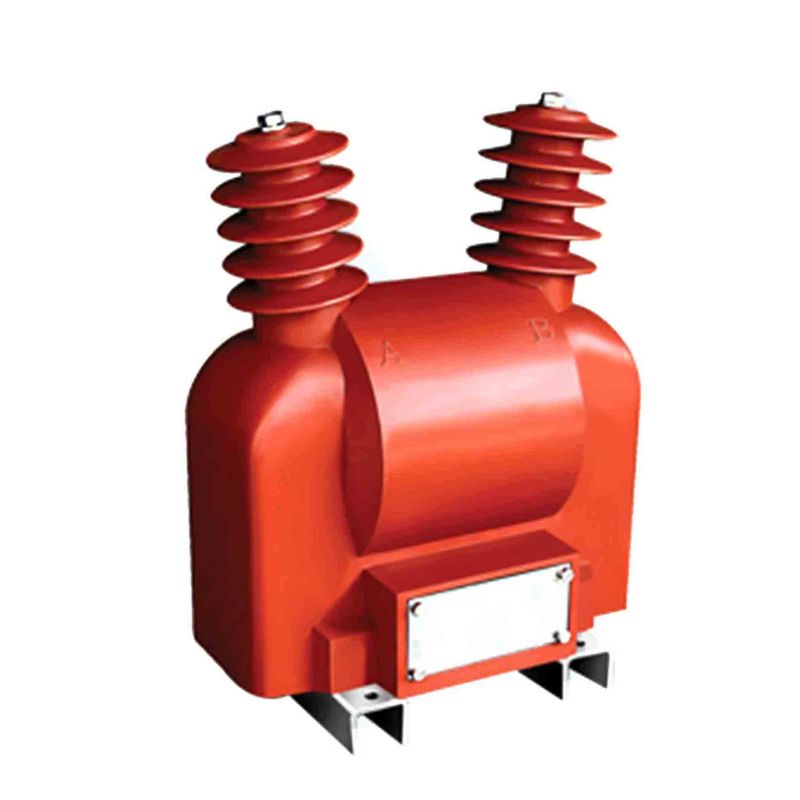

10KV Resin Cast Medium Voltage Outdoor Electronic Voltage Transformer
Applications
This model of instrument voltage transformer includes two versions: JDZW-20 and JDZXW-20G. The units are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 24kV and below. They are used in indoor or outdoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
Features
New magnetic material using
protection or measurement windings
Measurement accuracy is 0.2s higher.
Phase shift is stability
Designed life is 30years long
| Model | Rated voltage radio(V) |
Accuracy class and Accuracy class combination |
Limited output (VA) |
Rated insulation level(KV) | Surface creepage distance (mm) |
Once fuse (A) |
Wt (KG) |
|
| JDZW-3 | 3000/100 | 0.2---40 0.5---80 1---200 3---300 |
1000 | 3.6/23/40 | 510 | 0.5 | 38 | |
| JDZW-6 | 6000/100 | 7.2/32/60 | ||||||
| JDZW-10 | 10000/100 | 12/42/75 | 0.2 | |||||
| 10000/220 | 0.2---40 0.5---80 1---200 3---600 |
|||||||
| 10000/100/100 | 0.2/0.2---2S/2S 0.2/0.5---2S/2S 0.5/0.5---40/40 |
500/500 | ||||||
| 10000/100/200 | 0.2/3---40/300 0.2/3---80/300 |
500/800 | ||||||
| JDZXW-3G | 0.2/6P(3P)---20/100 0.5/6P(3P)---50/100 1/6P(3P)---150/100 3/6P(3P)---250/100 |
600 | 3.6/23/40 | 0.5 | ||||
| JDZXW-6G | 7.2/32/60 | |||||||
| JDZXW-10G | 12/42/75 | 0.2 | ||||||
| 0.2/0.2/6P(3P)---15/15/100 0.2/0.5/6P(3P)---15/15/100 0.5/0.5/6P(3P)---40/40/100 |
300/300 | |||||||
| JDZW2-3 | 3000/100 | 0.2---20 0.5---50 1---80 3---150 |
400 | 3.6/23/40 | 525 | 0.5 | 22 | |
| JDZW2-6 | 6000/100 | 7.2/32/60 | ||||||
| JDZW2-10 | 10000/100 | 12/42/75 | 0.2 | |||||
| 10000/220 | ||||||||
| 10000/100/100 | 0.2/0.2---10/10 0.2/0.5---10/15 0.5/0.5---25/25 |
200/200 | ||||||
| 10000/100/220 | 0.2/3---20/150 0.5/3---50/150 1/3---80/150 |
200/350 | ||||||
