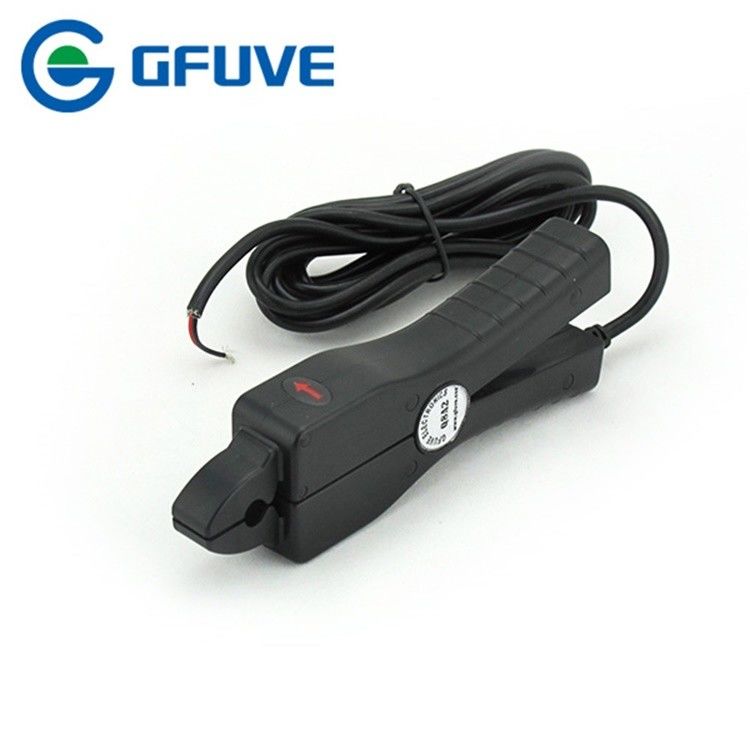

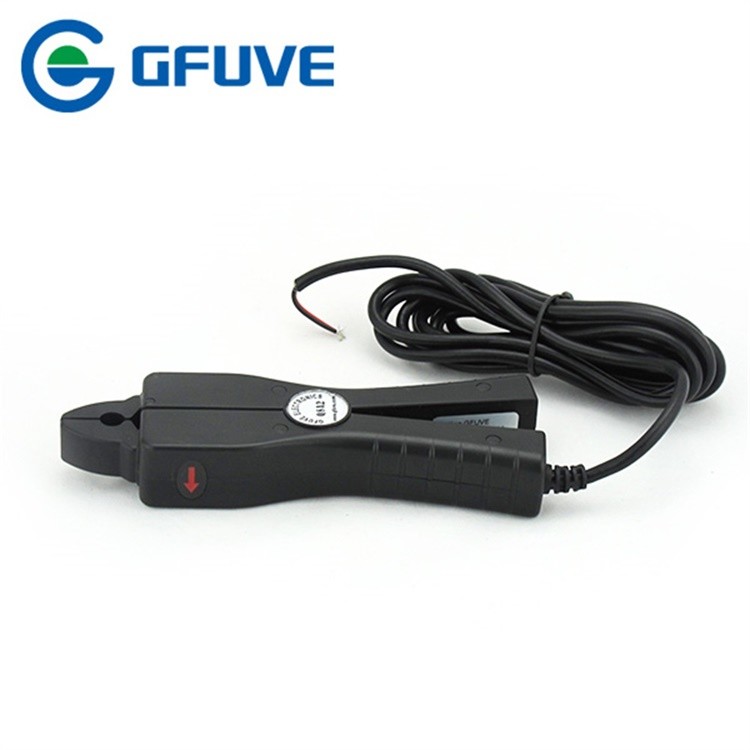

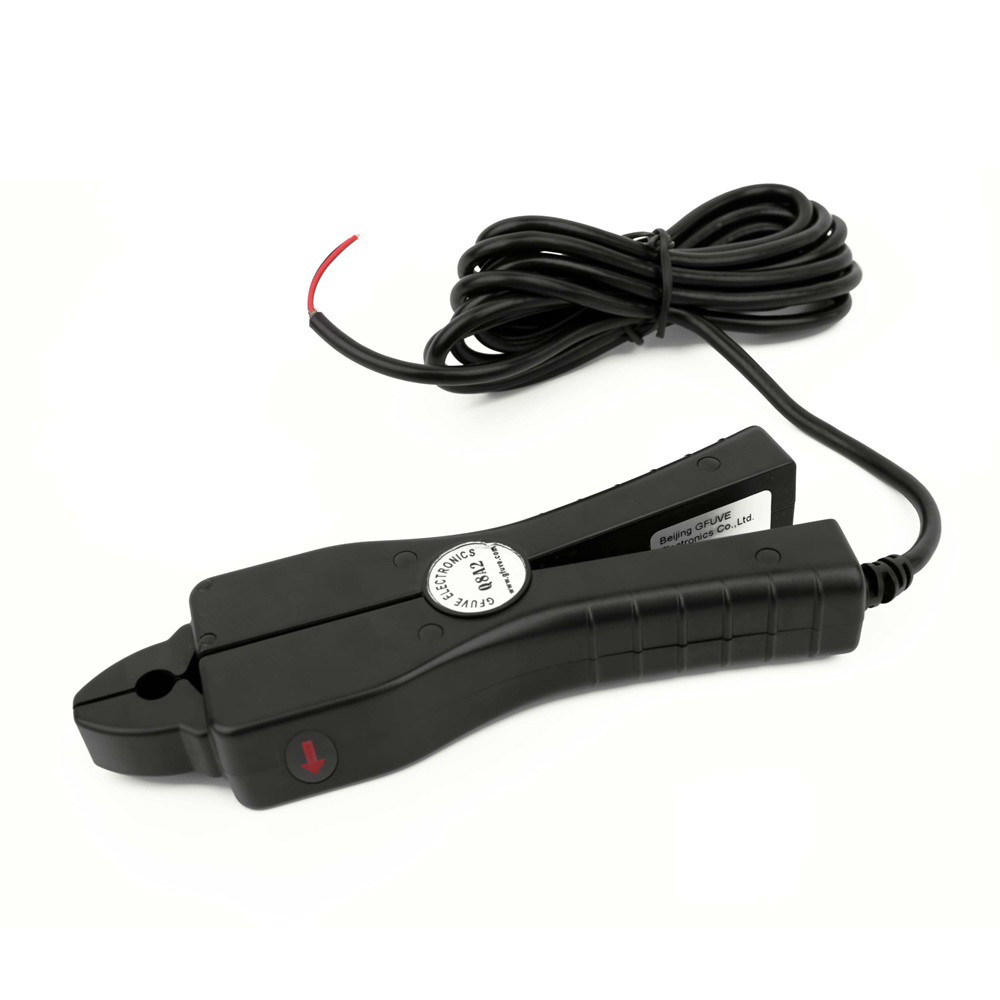

2.5m Lead Output Oscilloscope Current Clamp High Accuracy For Current Monitoring

China 2.5m Lead Output Oscilloscope Current Clamp High Accuracy For Current Monitoring supplier
2.5m Lead Output Oscilloscope Current Clamp High Accuracy For Current Monitoring supplier 2.5m Lead Output Oscilloscope Current Clamp High Accuracy For Current Monitoring supplier

Large Image :  2.5m Lead Output Oscilloscope Current Clamp High Accuracy For Current Monitoring

Product Details:

Place of Origin: China
Brand Name: GFUVE
Certification: CE UL
Model Number: Q8A-2-1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Carton Box
Delivery Time: Within 7 Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000 pieces per month
Contact Now
Detailed Product Description
Name: Split Core Current Sensor For Oscilloscope Current Monitoring Ratio: 1000: 1 (customized)
Max. Cont. Input Current: 12A Output Mode: Lead Output (2.5m)
Weight: 250g Holding Wire Diameter: 8mm





Split Core Current Sensor for Oscilloscope Current Monitoring

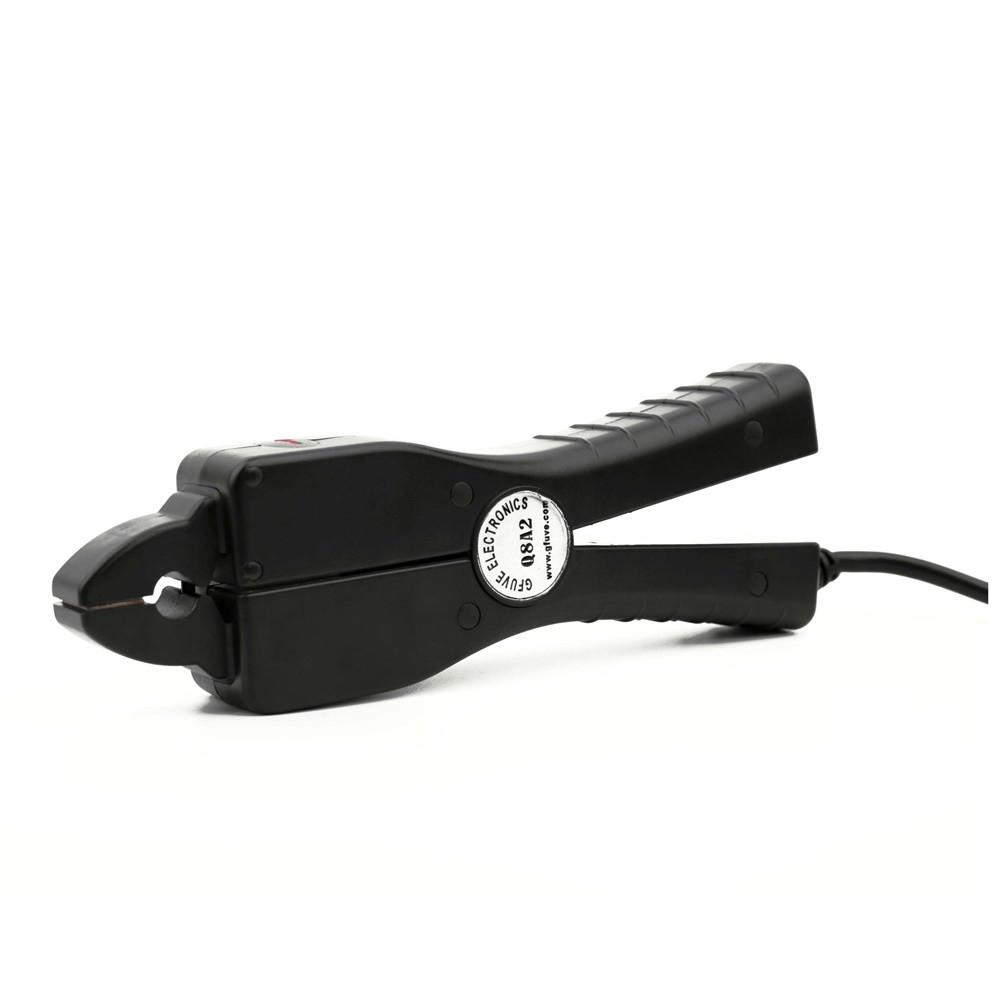

The model Q8A2 permalloy core current clamp with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power analysers, safety testers etc.







Features

· Suitable for 5A, 10A cable online measurement

· Holding wire diameter: φ8mm

· Dimension: 45mm×158mm×25mm

· Load capacity: ≤4Ω

· Installation: clamp type

· Output mode: lead output







Parameter



Electrical parameters
Ratio 1000: 1 or 2000:1 (customized)
Accuracy 0.1 %,0.2%
Primary current 0 - 10A AC
Secondary current 0 - 10mA AC or 0 - 100mV AC (customized)
Max. Cont. Input current 12A
Over voltage category CAT III 600V
Output signal (AC current) From 0 to 10mA AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage) From 0 to 100mV AC at nominal input current
Frequency range 40Hz-2000Hz
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 600 V
Standard EN 61010-1, EN 61010-2-032, IEC60044-1
Installation Clamp type
Output mode Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm) 45x158x25
Weight (g) 250
Holding wire diameter (mm) φ8
Max. jaw opening (mm) 8
Color Black
Material PC+ABS+Polycarbonate, UL94 V0




2.5m Lead Output Oscilloscope Current Clamp High Accuracy For Current Monitoring
