Place of Origin: | China |
---|---|
Brand Name: | GFUVE |
Certification: | CE UL |
Model Number: | Q125B |
Minimum Order Quantity: | 1 PC |
Price: | Negotiable |
Packaging Details: | Export Carton Box |
Delivery Time: | Within 7 Days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 5000 pieces per month |
Ratio: | 1000: 1 Or 2000:1 (customized) | Accuracy: | 0.2%, 0.5%, 1% |
---|---|---|---|
Primary Current: | 0 - 3000A AC | Secondary Current: | 0 - 5A AC (customized) |
Jaw Color: | White | Max. Cont. Input Current: | 3600A |
Over Voltage Category: | CAT III 600 V | Frequency Range: | 40Hz-2000Hz |
Temperature Range: | -20°C To +55°C | Weight (g): | 1100 |
Dimensions (L X W X H) (mm): | 180 X 319 X 35 | Holding Wire Diameter (mm): | φ125 |
Max. Jaw Opening (mm): | 125 | ||
High Light: | 3000A AC Current Clamp Probe,HVAC Current Clamp Probe,125mm Cable Positioning AC Current Probe |
Description
The Q125B is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.
features
1. Measurement range of 1A to 3600A AC
2. Large jaw opening designed
3. Improved ergonomic design and easy operation
4. Conforms to EN 61010, 600V CAT III
5. Low phase shift for power measurement
6. Nominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to3000AAC
7. Transformation ratio: 1000:5, 2000:5, 3000:5
8. Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC
9. Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
10. UL, CE mark
applications
1. Large industrial loads
2. Measuring around cable bundles
3. Power load monitoring
4. Electrical utility
5. HVAC
6. Industrial maintenance
7. Laboratory
8. Plant maintenance
9. Cable fault tester
Electrical parameters | |
---|---|
Ratio | 1000: 1 or 2000:1 (customized) |
Accuracy class | 0.2%, 0.5%, 1% |
Primary current | 0 - 3000A AC |
Secondary current | 0 - 5A AC (customized) |
Max. Cont. Input current | 3600A |
Over voltage category | CAT III 600 V |
Output signal (AC current) | 500mA,1A, 2A, 5A AC at nominal input current |
Electrical parameters - continued | |
Output signal (AC voltage) | 333mV,500mV,1V,5V AC at nominal input current |
Frequency range | 40Hz-2000Hz |
Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
Temperature range | -20°C to +55°C |
Output | 2.5 meter cable with D01 connector |
Max. voltage not insulated conductors | 600 V |
Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
Installation | Clamp type |
Output mode | Lead output (2.5m) |
Mechanical parameters | |

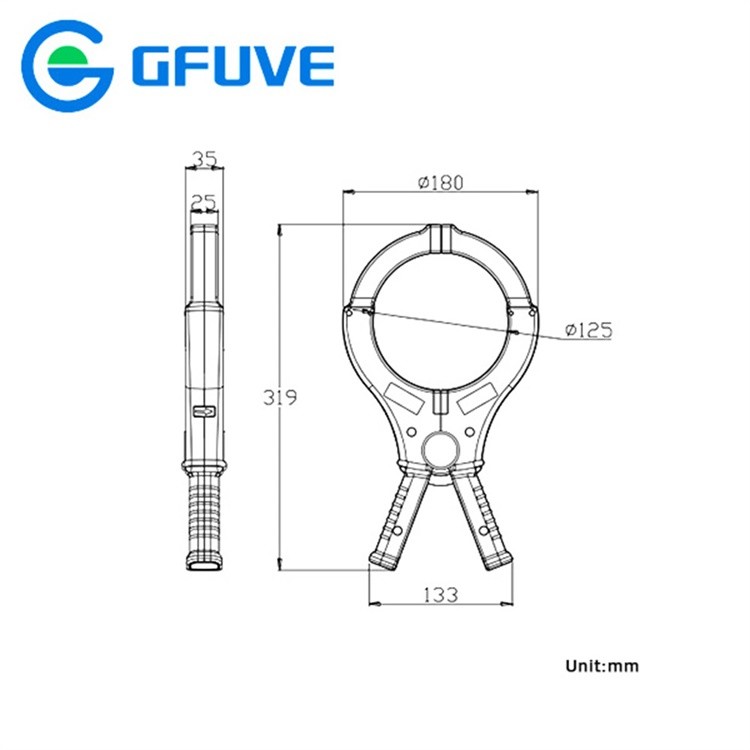

Dimensions (L x W x H) (mm) | 180 x 319 x 35 |
Weight (g) | 1100 |
Holding wire diameter (mm) | φ125 |
Max. jaw opening (mm) | 125 |
Jaw color | Black |
Material | PC+ABS+Polycarbonate, UL94 V0 |
