TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control

TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control
TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control
TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control TEST-630 Secondary Injection Test Set Relay Test Equipment Six Phase Program Control
Basic Information
Place of Origin: China
Brand Name: GFUVE
Certification: CE,CNAS
Model Number: TEST-630
Minimum Order Quantity: 1SET
Packaging Details: Wooden box
Payment Terms: T/T, Western Union
Supply Ability: 100set/month
Get Best Price Contact Now
Allowable Range: AC220V±10% AC Current Output: 6×0-30A
AC Voltage Output　: 6×0-130V DC Voltage Output　: 0-300V
Name: Secondary Injection Test Set Model: TEST-630
High Light:

secondary injection test equipment

,

secondary injection test kit

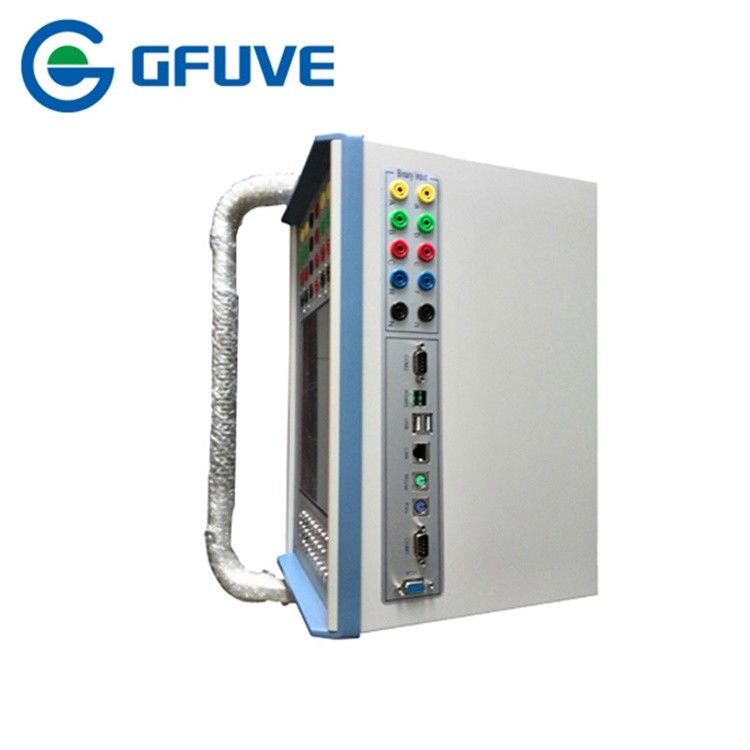

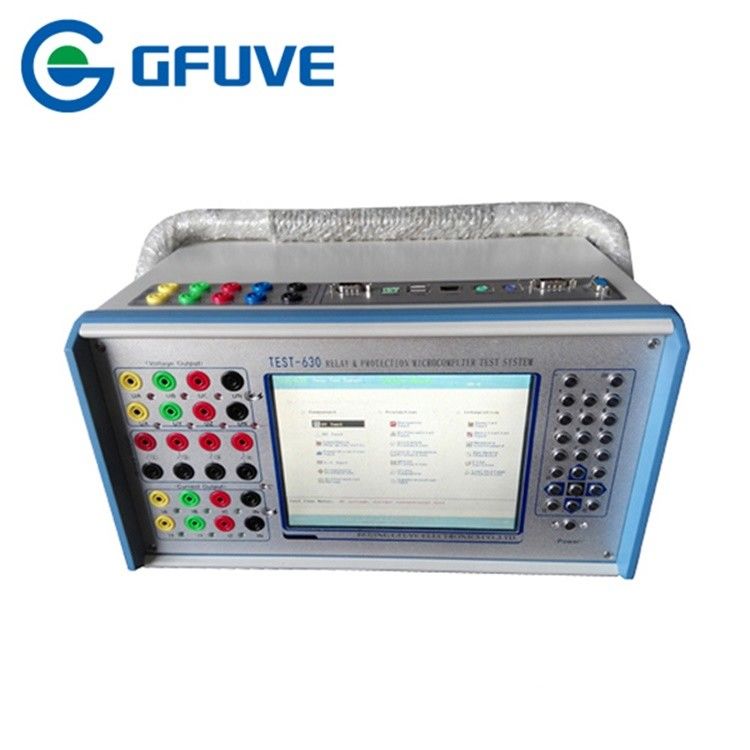

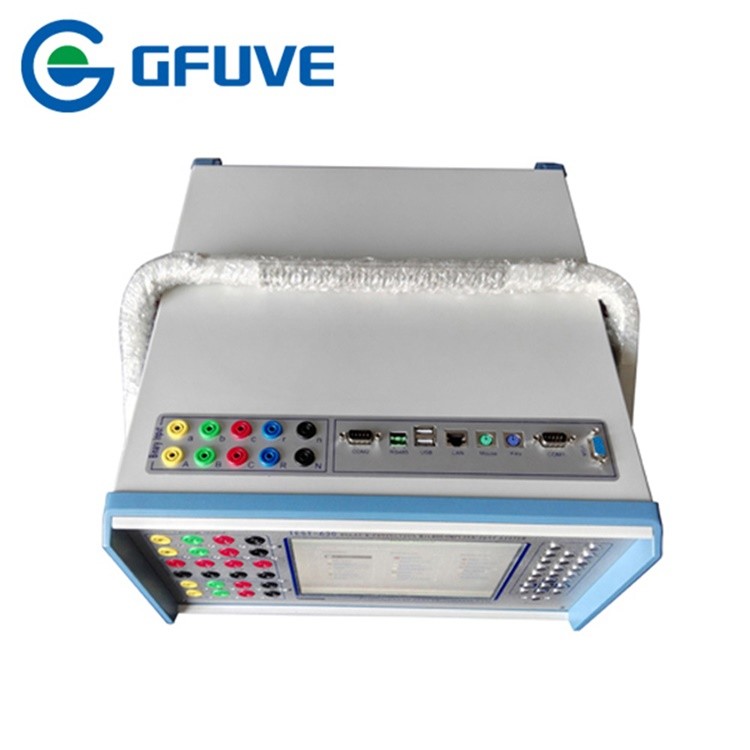

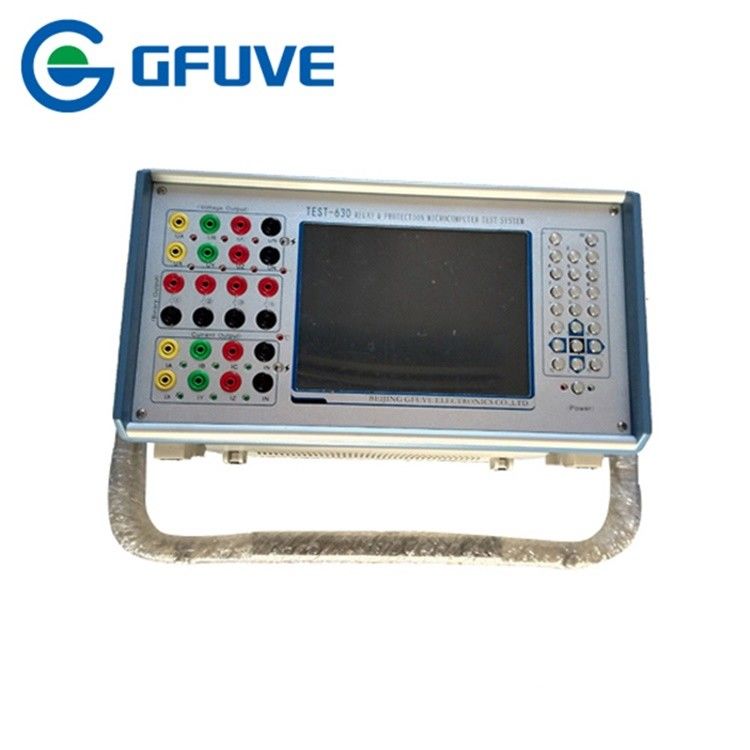

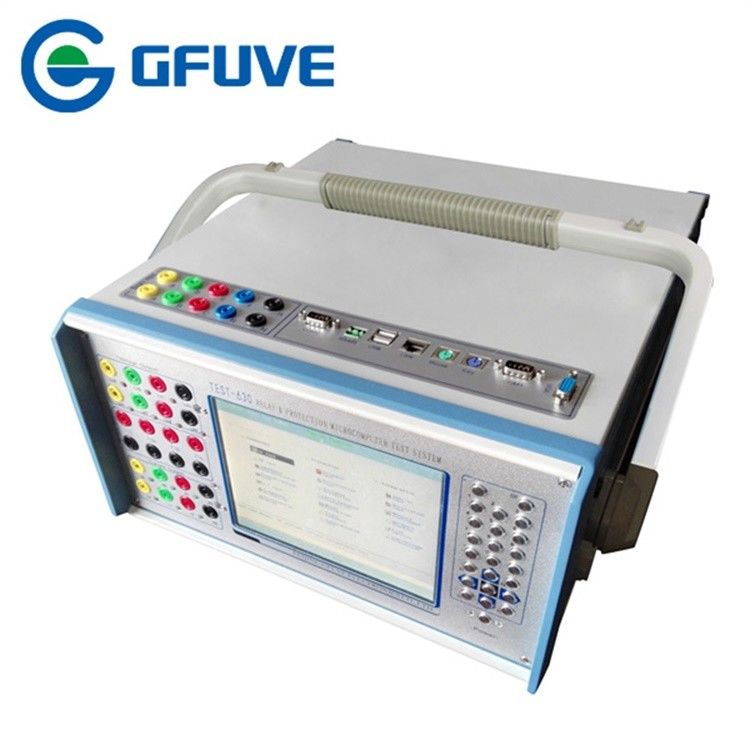

TEST-630 SIX PHASE UNIVERSAL PROTECTION DEVICE RELAY TEST KIT


Test-630 is a six phase current output and six phase voltage output protection relay tester with 5.Eight pairs of binary input and four pairs of binary output

  • Integration in the host crystal 8.4 inches true color, light weight and easy to carry.
  • Built-in high-speed and high-performance industrial computer embedded operating system, running stable and reliable, also can test by connecting PC.
  • Panel embedded user-friendly buttons, and the panel can also be an external keyboard and mouse.
  • High-precision DAC to 12 Road, simultaneously output to ensure the high precision and good linearity of the waveform.
  • 5Matching electromagnetic compatibility components, can improve on-site anti-electromagnetic interference, protection devices can connect the electromagnetic compatibility to test.
  • Analog output of the front panel, switch the amount of terminal design in the upper cover, all the wiring does not affect the operation of the panels and the test parameters of the surveillance.
  • The latest thermal structure design to ensure the best ventilation. Automatically determine over current, over voltage, overload and short circuit, if the temperature is too high, the anomalies and misuse warning of the data will show up promptly.
  • Using voltage, current amplifier AC / DC sharing, output stage uses a unique ultra-linear amplifier technology, high precision and reliability. six-phase AC output voltage and six-phase AC current.
  • 12 analog ports and other optional auxiliary DC source output (220V/110V).
  • Interface: RJ45 (Ethernet interface), USB interface (software upgrades, reporting transmission), industrial serial interface (GPS or other serial device use).


OVERVIEW

  • Six-channel current output
  • Six-channel voltage output
  • Eight pairs of binary input
  • Four pairs of binary output


FUNCTIONS

  • Host real-time operating system, fast response, when faced with an emergency situation, can better protect the instruments and equipment under test. Safe and reliable, not easy to be violated by a computer virus.
  • The newly designed software interface style, the host machine operation is fully consistent with the background and easy to use.
  • Extensive testing capabilities: the state sequence will be determined to meet the needs of various types of user for testing microprocessor-based protection relay in the trial, IT features analog oscillation, the entire group of tests, differential protection, harmonic superposition, low cycle load shedding, same equipment, measuring instruments, GPS synchronized debugging, fault playback, and custom test (special tests), etc. It can easily complete the protective device test of ABB, Siemens, AREVA and other foreign manufacturers.
  • The test report can be easily derived from the USB port to print.


TEST ITEM

  • U/I Test
  • DC Test
  • Impedance Characteristics
  • Power Direction Test
  • I-T Test
  • Differential Relay
  • Harmonic Test
  • Differential Protection
  • Distance Protection
  • Zero Sequence Protection
  • Setting Group Test
  • State Sequence
  • Synchronization Test
  • Special Test
  • Oscillation Test
  • Metering Instrument
  • Hardware Checkout
  • Low Voltage Protection
  • Fault Recurrence


PARAMETERS

Electrical parameters　
Allowable range AC220V±10% or AC110V±10%, 50/60Hz±10%
Time measurement 0.1ms-999999.999s
AC current output　
Phase current output (effective value) 6×0-30A or 3 × 0-60A
Maximum output power 520VA/phase
Maximum parallel current output (effective value) 0-180A
Long-term allowable working value of phase current (effective value) >10A
Allowable working time of maximum current >11s
Accuracy <±0.2%
AC voltage output　
Phase voltage output (effective value) 6×0-130V
Line voltage output (effective value) 0-260V
Maximum output power 70VA/phase
Accuracy <±0.2%
DC voltage output　
Output range 0-300V or 6×0-±130V
Maximum output power 130VA
Accuracy <±0.2%
DC current output　
Output range -10-10A or 6×0-±10A
Maximum output power 150VA
Accuracy <±0.2%
Binary input　
Idle contact 1-20mA, 24V (DC)
Electric potential contact 0-250V (DC)
Binary output　
Idle contact 250V/0.5A (DC)
Rated output　
Frequency error <±0.01HzHz
Phase error <±0. 2°
Waveform distortion <±0.3% (fundamental wave)
Time error <40µs
Output frequency 0-1050Hz
Superposed harmonic wave 0-21times
Time measurement　
Test range 0.1ms-999999.999s
Mechanical parameters　
Dimensions (L×W×H) (mm) 360×195×365
Weight (kg) 16.6
Environmental conditions　
Use range 0°C to 45°C
Storage range -25°C to 70°C
