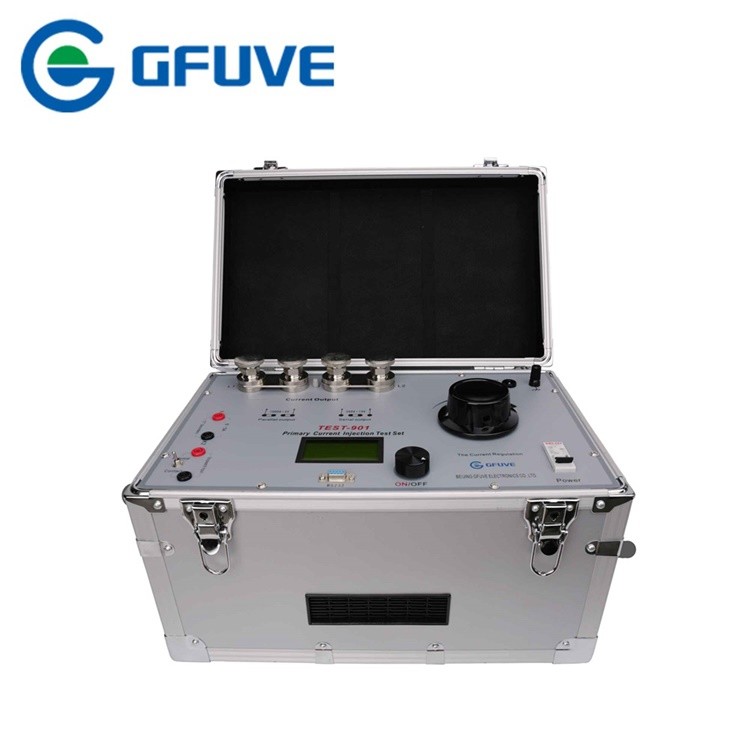

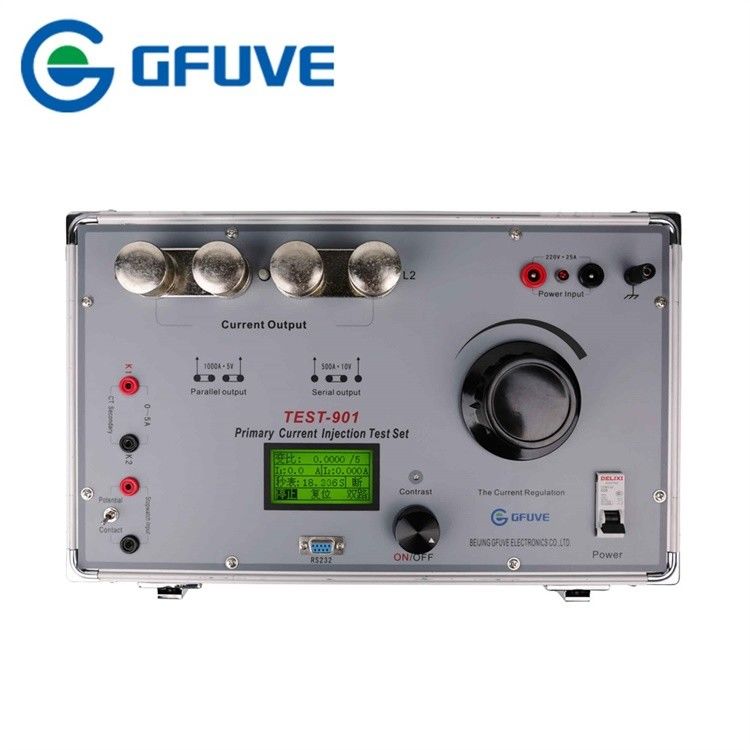

TEST-901 Large Current 1000A Primary Current Injection Test Set
TEST-901 primary current injection test set adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display and current meter; it can show primary current value, second current value, turn ratio and the action time. Packing is used as aluminum alloy body with PC panel. TEST-901 is mainly applied to CT turn ratio testing in the power system and contact resistance test which need large current.
High-current generator is a necessary equipment in all walks of life in electrical commissioning needs
large current place, used in power plants, substations, electrical manufacturers and scientific research,
laboratory and other units, belonging to short-term or intermittent working system, It has a small size, light
weight, good performance, easy to use and maintenance features.
220V±10%·25A, 50Hz/60Hz or
Current Output (AC)
1000A·5V or 500A·10V
The current output waveform distortion
overload electronic protection and software protection
