GFUVE Low Current Automotive Amp Clamp on Current Transformer Ratio 10A / 10mA PQA- Friendly Shape

Q8 GFUVE Ratio 10A / 10mA Split Core Amp Clamp On Current Transformer Supplier Class 0.2

The GFUVE Split Core Current CTs are designed to extend the current measuring capabilities of digital multimeters, power instruments, oscilloscopes, power quality analyzer, recorders, and other wide range instruments.

Clamp-On Current Transformers GFUVE® maintains a large in-stock inventory of Clamp-On Current Transformers including AC, Micro Clamp and Clamp-On CT Accessories for most common applications. Below is a list of all clamp-on current transformers available through GFUVE material, however, not all models are in-stock.

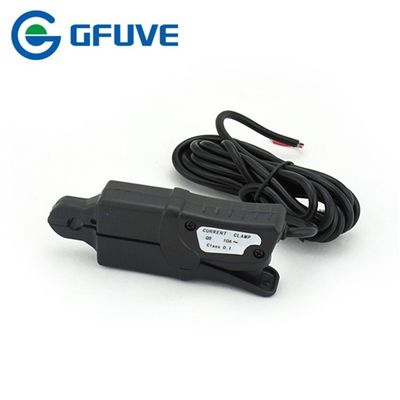

The model Q8-2 clamp-on current CT is suitable for 5A, 10A cable online measurement, the user-friendly shape make It easily clamp onto cables.

GFUVE Q8 Series of Clamp-On Current Transformer's are designed for fast and easy installation. Clamp-On CT uses Permalloy Magnetic Core or Silicon Amorphous Core, with characteristics of small size. high precision, good stability and strong anti-interference ability.

Three precision dual range current clamps (1 A/10 A) for secondary current transformer applications.... GFUVE Set of 3 1 A/10 A Current Clamps Expand the capabilities of the GFUVE GF438II and GF312V2 Series Loggers with the dual-range 1 A/10 A

Features

Suitable for 5A, 10A cable online measurement.

Holding wire diameter: φ8mm

Dimension: 42.6mm × 122.5mm × 23mm

Load capacity: ≤4Ω

Installation: clamp type

Output mode: lead output

Applications

Electric energy meter calibrator (on site)

Double clamp type ground resistance tester

Double clamp type phase volt-ampere meter

Digital multi-meter

Multi-function energy meter

Power quality analyzer

Matched instruments

Calibration instrument on site

Parameter

Photos

FAQ, following questions will help you to select the matched probe for your applications.

1. Please determine if you are measuring AC or DC?

GFUVE Q8-2 is for AC measurement. If DC, we have hall effect models to suggest.

2. What is the maximum current you will measure?

Q8-2 max current is 12A

3. What size conductor will you clamp onto? This parameter determines the probe jaw size needed.

Q8-2 can clamp conductor with diameter within 8mm

4. What type of probe output do you need or can you work with (mA, mV, A, AC, etc.)?

Q8-2 can customize output with mA

5. What is the working voltage of the conductor to be measured?

GFUVE probes should be used below 600 volts

6. What type of termination do you need: jacks, leads or BNC?

Q8-2 standard has 2.5meter leads. We can offer jacks or BNC… as options.

7. If you cannot find information you need or would like assistance, contact us today. We have designed many more probes than those shown in this catalog, and we manufacture in Beijing, China.
