Beijing GFUVE Instrument Transformer Manufacturer Co.,Ltd.
an exclusive current transformer, split core current transformer, current clamp & voltage transformer manufacturer.
| Place of Origin: | China |
|---|---|
| Brand Name: | GFUVE |
| Certification: | CE UL |
| Model Number: | Q8A-2-2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Export Carton Box |
| Delivery Time: | Within 7 Days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 5000 pieces per month |
| Name: | Inductive Current Clamp Current Monitoring For Three Phase Accuracy 0.2 | Frequency Range: | 40Hz-2000Hz |
|---|---|---|---|
| Temperature Range: | -20°C To +55°C | Output Mode: | Lead Output (2.5m) |
| Weight: | 250g | Max. Voltage Not Insulated Conductors: | 600V |
| High Light: | inductive amp clamp,inductive current probe |
||

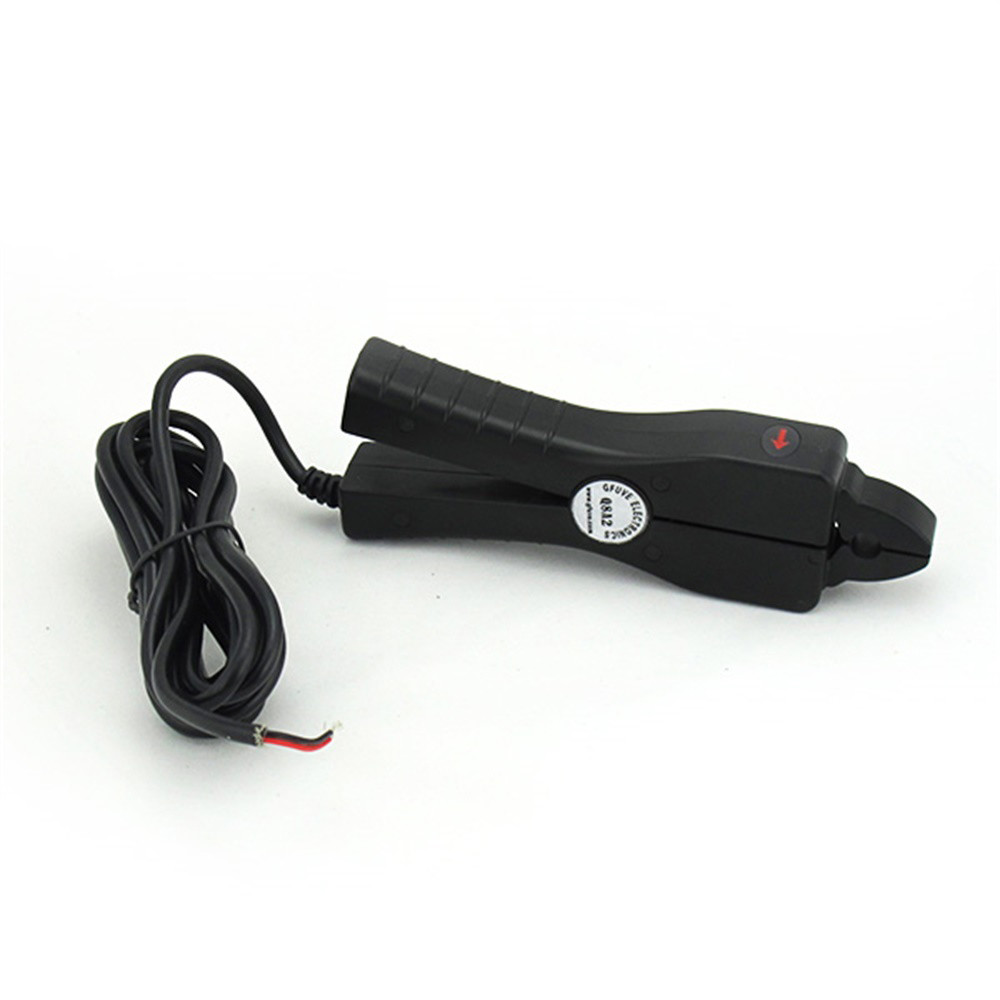

Inductive Current Clamp Current Monitoring for Three Phase Accuracy 0.2
The model Q8A2 permalloy core current clamp with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power analysers, safety testers etc.
Features
1. Suitable for 5A, 10A cable online measurement
2. Holding wire diameter: φ8mm
3. Dimension: 45mm×158mm×25mm
4. Load capacity: ≤4Ω
5. Installation: clamp type
6. Output mode: lead output
Parameter
| Electrical parameters | |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy | 0.1 %,0.2% |
| Primary current | 0 - 10A AC |
| Secondary current | 0 - 10mA AC or 0 - 100mV AC (customized) |
| Max. Cont. Input current | 12A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | From 0 to 10mA AC at nominal input current |
| Electrical parameters - continued | |
| Output signal (AC voltage) | From 0 to 100mV AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 45x158x25 |
| Weight (g) | 250 |
| Holding wire diameter (mm) | φ8 |
| Max. jaw opening (mm) | 8 |
| Color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
