Black Durable Flexible Ct Clamps 200A , Automotive Amp Clamp 0.1 Accuracy

Basic Information

Place of Origin:	BEIJING CHINA
Brand Name:	GFUVE
Certification:	CE, ISO9001
Model Number:	XQ20-3

Minimum Order Quantity:	3PCS
Price:	100-300USD/PC
Packaging Details:	Standard export box
Delivery Time:	3-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/MONTH

Get Best Price Contact Now

Name:	Inductive Current Clamp Automotive 200A With 0.1 Accuracy	Weight:	400g
Output Signal (AC Voltage):	From 0 To 2V AC At Nominal Input Current	Jaw Color:	Red, Black
Frequency Range:	40Hz-2000Hz	Output:	2.5 Meter Cable With D01 Connector
Highlight:	inductive amp probe , inductive current probe

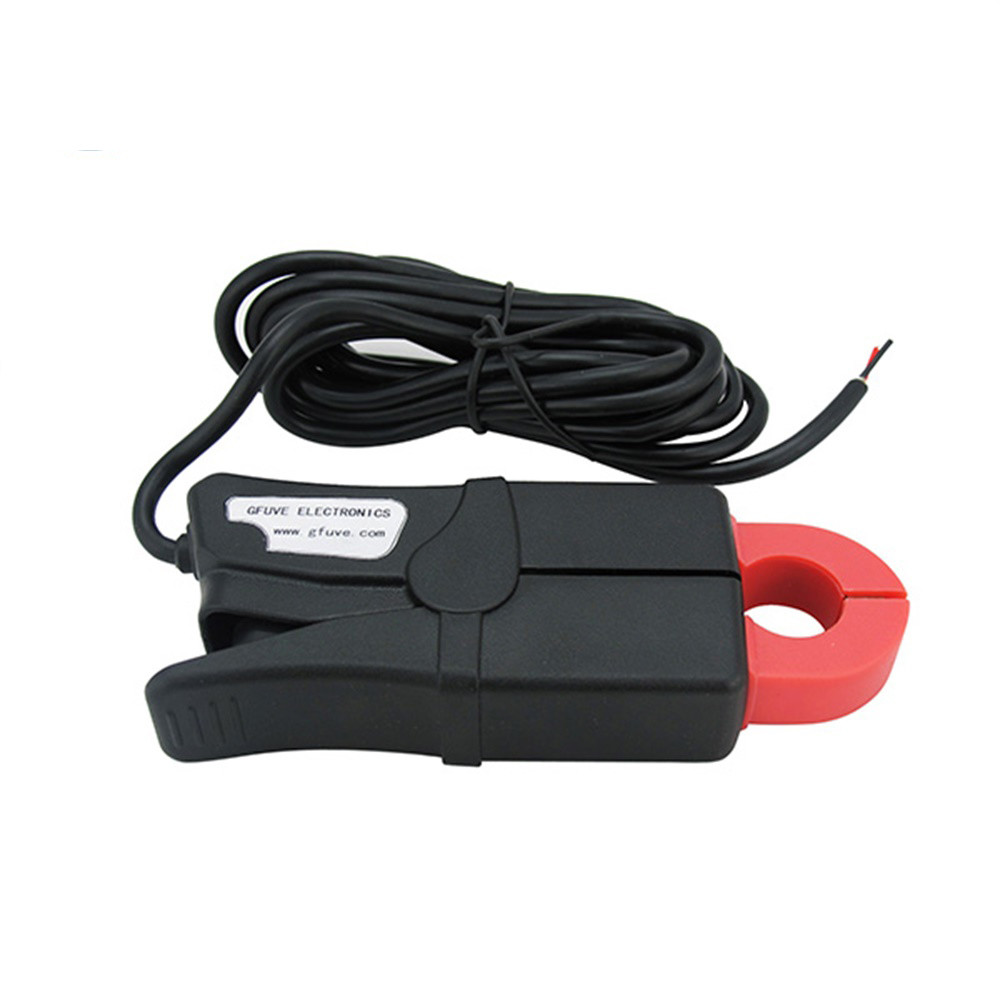

Inductive Current Clamp Automotive 200A with 0.1 Accuracy

The model XQ20 clamp on current sensor is suitable for 200A cable online measurement, the user friendly shape make It easily clamp onto cables or bus bars.

Current probes are typically used to read the magnitude of alternating current (AC) and, with additional instrumentation, the phase and waveform can also be measured. Some clamps meters can measure currents of 1000 A and more.

Features

1. Suitable for 200A cable online measurement.

2. Holding wire diameter: φ20mm

3. Dimension: 52.5mm×137.5mm×28mm

4. Load capacity: ≤4Ω

5. Installation: clamp type

6. Output mode: lead output

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%
Primary current	0 - 200A AC
Secondary current	0 - 200mA AC (customized)
Max. Cont. Input current	240A
Load capacity	≤4Ω
Over voltage category	CAT III 600V
Output signal (AC current)	From 0 to 200mA AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage)	From 0 to 2V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	52.5 x 137.5 x 28
Weight (g)	400
Holding wire diameter (mm)	φ20
Max. jaw opening (mm)	20
Jaw color	Red, yellow, blue, green, black
Material	PC+ABS+Polycarbonate, UL94 V0
