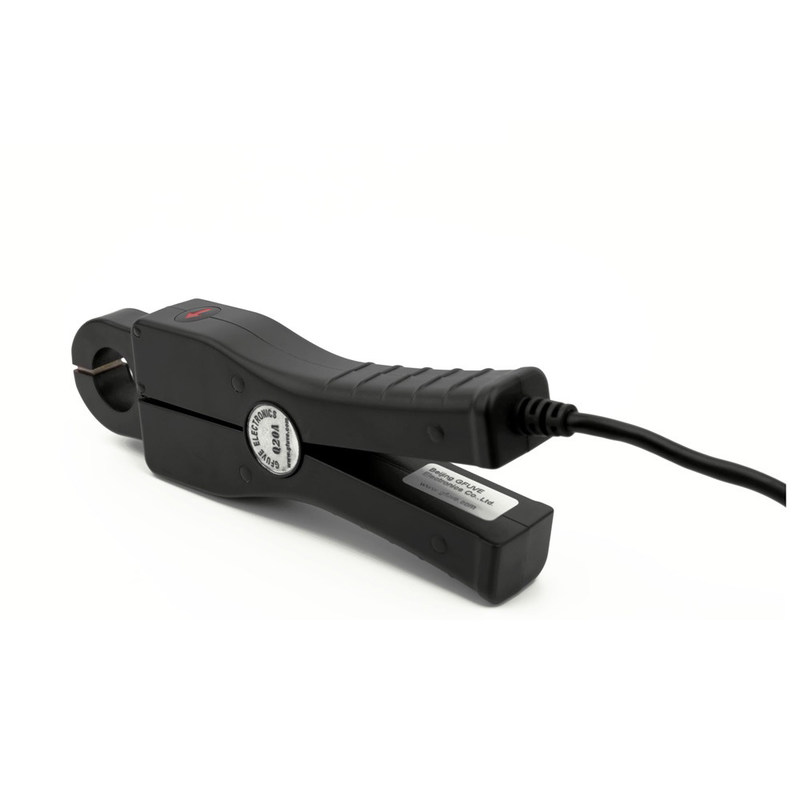

Q20A Brand New Split Core Clip On Clamp On Current Transformer with mA Output Class 0.1
Split Core Clip On Current Sensor Q20A-2 designed and manufactured by GFUVE meets the latest safety and performance standards which can measuring AC currents up to 200A. Current Sensor Q20A-2 allows any clamp meter or multimeter to enclose a thick conductor within 20mm.
Features
1. Measurement range of 1mA to 200A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω
6. Output model: Lead output(2.5m)
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Parameter
| Electrical parameters | |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2% |
| Primary current | 0 - 200A AC |
| Secondary current | 0 - 200mA AC (customized) |
| Max. Cont. Input current | 240A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | From 0 to 200mA AC at nominal input current |
| Output signal (AC voltage) | From 0 to 200mV AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 48 x 186 x 27 |
| Weight (g) | 300 |
| Holding wire diameter (mm) | φ20 |
| Max. jaw opening (mm) | 20 |
| Color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
FAQ, following questions will help you to select the matched probe for your applications.
1. Please determine if you are measuring AC or DC?
GFUVE Q20A-2 is for AC measuring. If DC, we have hall effect models to suggest.
2. What is the maximum current you will measure?
Current Sensor Q20A-2 maximum current is 240A.
3. What size conductor will you clamp onto? This parameter determines the probe jaw size needed.
Q20A-2 can clamp conductor is φ20mm
4. What type of probe output do you need or can you work with (mA, mV, A, AC, etc.)?
Q20A-2 Current Sensor can customize output with mA.
5. What is the working voltage of the conductor to be measured?
GFUVE probes should be used below 600 volts
6. What type of termination do you need: jacks, leads or BNC?
Q20A-2 standard has 2.5meter leads. We can offer jacks or BNC… as options.
7. If you cannot find information you need or would like assistance, contact us today. We have designed many more probes than those shown in this catalog, and we manufacture in Beijing, China.
