| Place of Origin: | China |
|---|---|
| Brand Name: | GFUVE |
| Certification: | CE UL |
| Model Number: | Q150-3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Export Carton Box |
| Delivery Time: | Within 7 Days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 5000 pieces per month |
| Name: | Transformer Toroidal Inductive Current Clamp For Wireless Electricity Monitor | Accuracy: | 0.2%, 0.5% |
|---|---|---|---|
| Max. Cont. Input Current: | 6000A | Output Mode: | Lead Output (2.5m) |
| Frequency Range: | 40Hz-2000Hz | Weight: | 1700g |
| High Light: | inductive amp probe,inductive current probe |
||

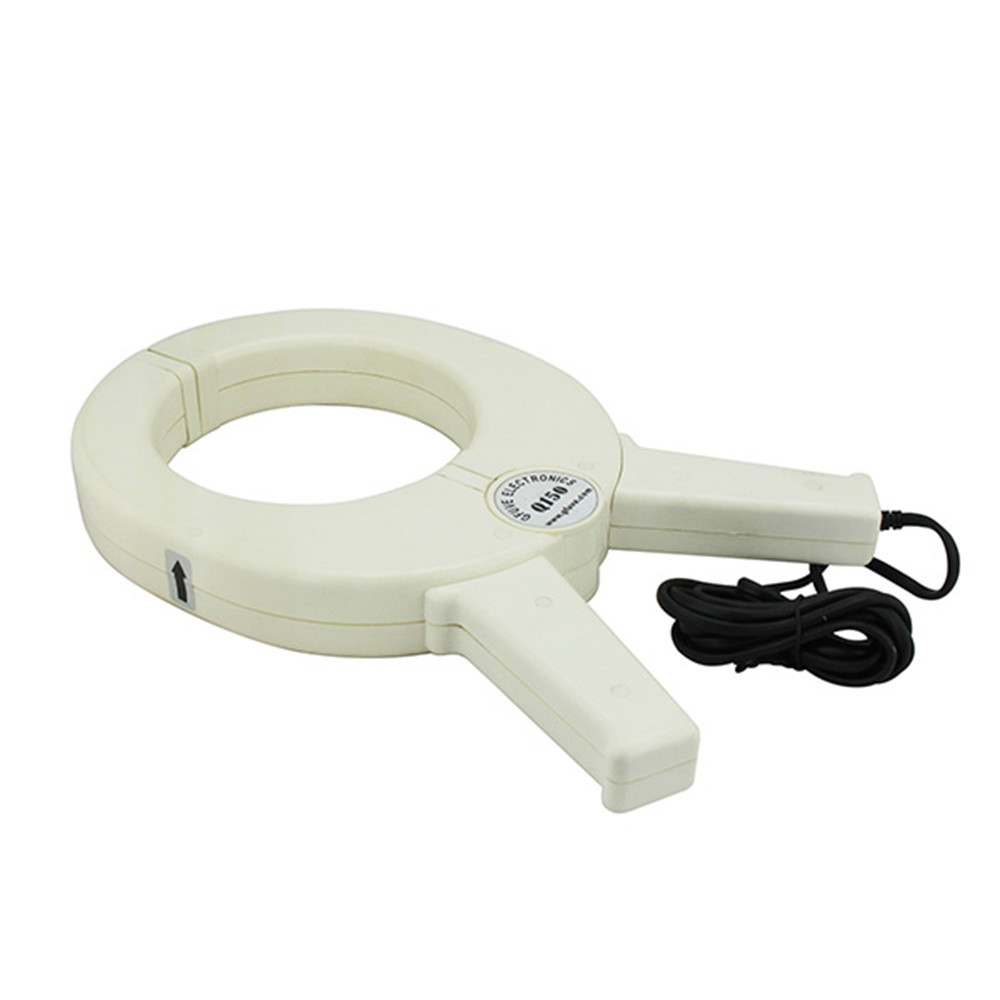

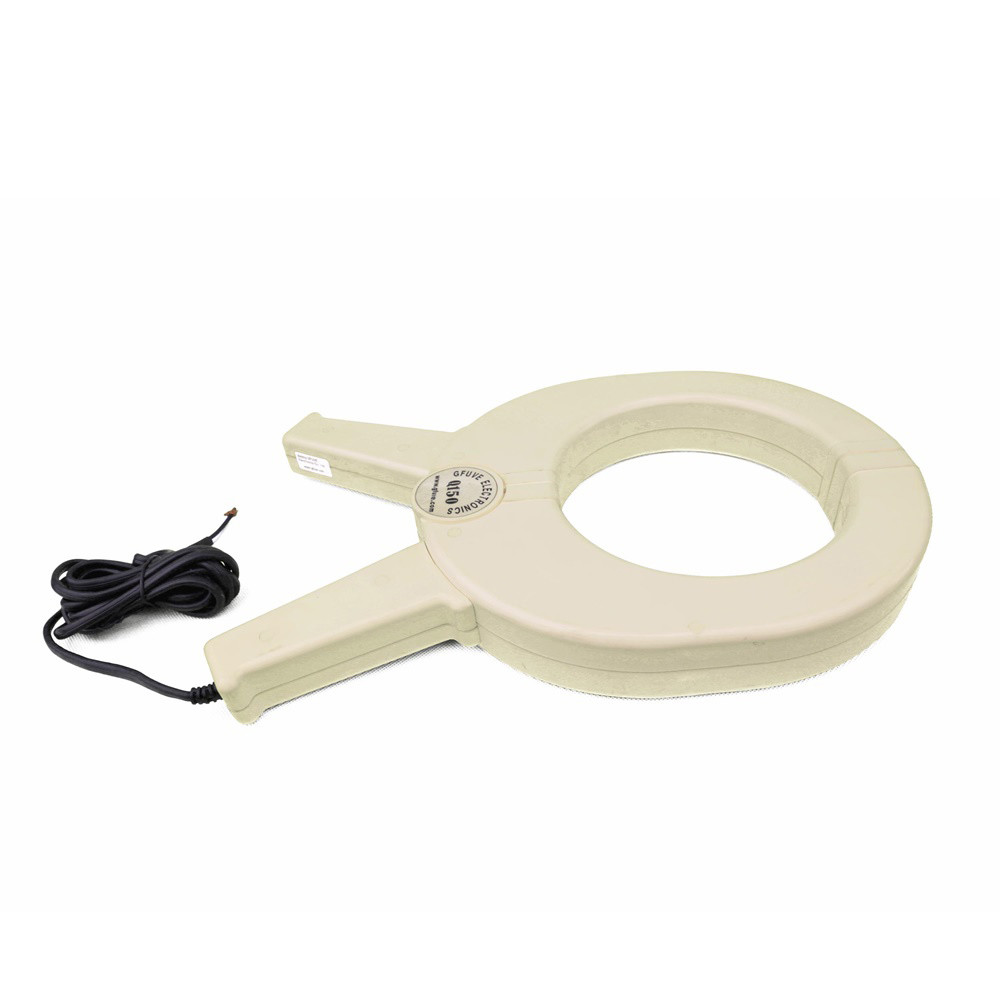

Transformer Toroidal Inductive Current Clamp for Wireless Electricity Monitor
The model Q150 current probe can be used in large current situation and cooperate to cable fault tester and cable identification device, used for cable test work.
Current probes are key to the successful design of electrical devices, testing instruments,
and electronic parts.
Probes work with testing devices are ideal for measuring currents with high accuracy making them indispensable tools for evaluating current consumption and control current. In recent years,
customers are seeking current probes with high sensitivity to increase the accuracy of design and
verification.GFUVE offers wide range of current sensors for its portable power analyzers. The
products included in this range can be used to measure current levels from a few mA to
up to several thousand amperes.
Features:
1. Holding wire diameter: φ150mm
2. Dimension: 229mm×364mm×44mm
3. Load capacity: ma output ≤4ω,
4. 1a output 0.1ω, 5a output 2.5va
5. Installation: clamp type
6. Output mode: lead output
Parameter
| Electrical parameters | |
| Ratio | 1000: 1 or 5000:1 (customized) |
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 0 - 5000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 6000A |
| Over voltage category | CAT III 600 V |
| Output signal (AC current) | 500mA,1A,5A AC at nominal input current |
| Output signal (AC voltage) | 333mV,500mV,1V,5V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 229x364x 44 |
| Weight (g) | 1700 |
| Holding wire diameter (mm) | φ150 |
| Max. jaw opening (mm) | 150 |
| Jaw color | White |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
