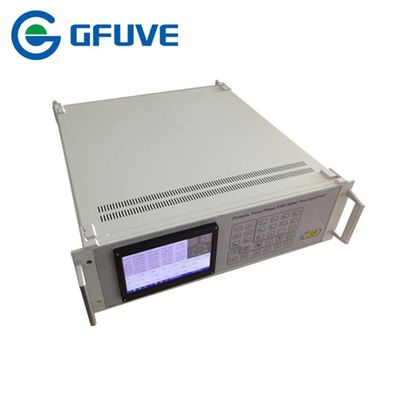

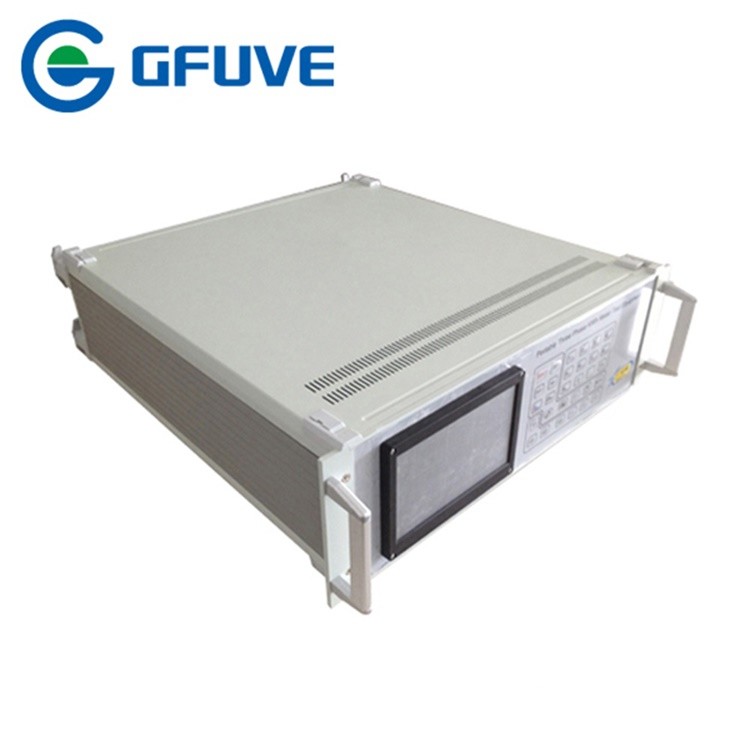

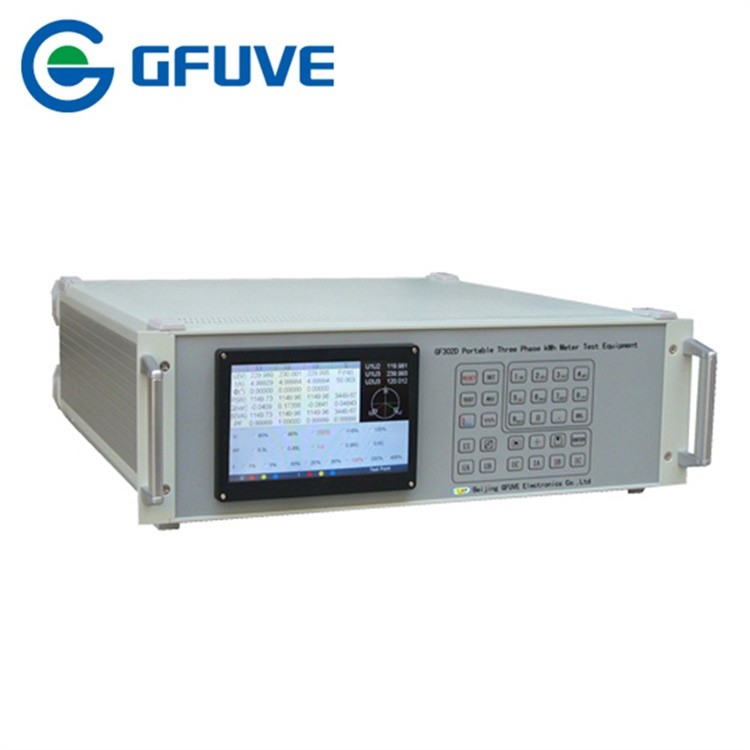

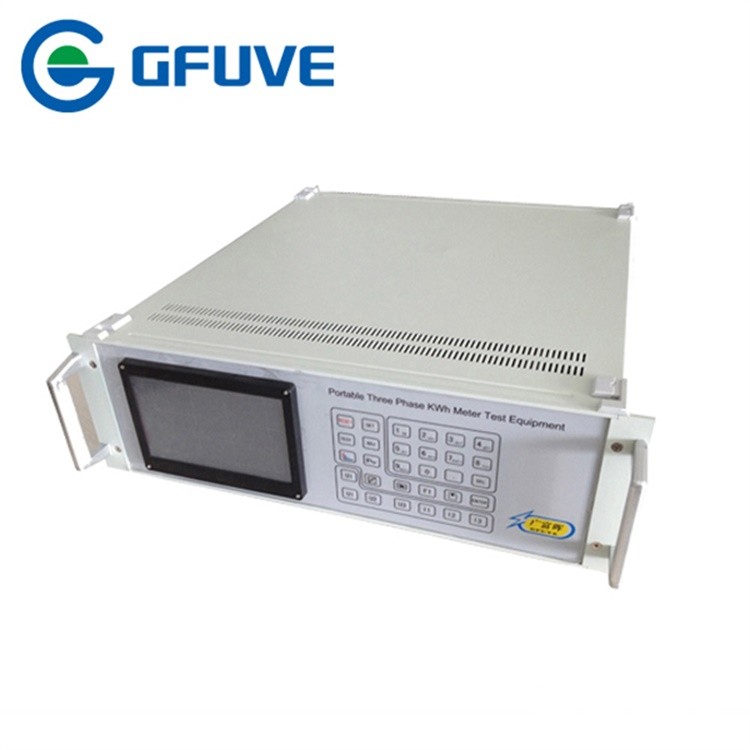

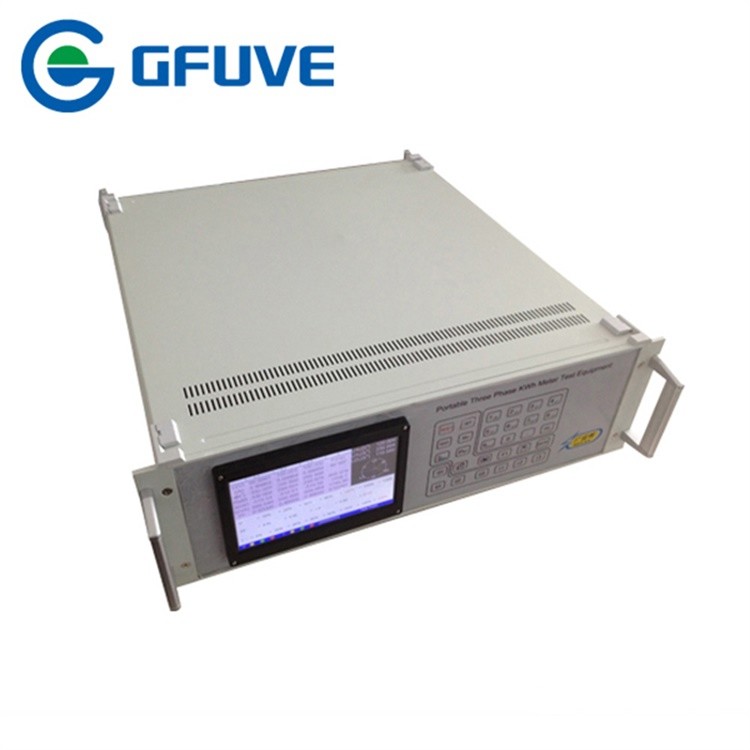

TFT Display KWh Electrical Power Calibrator 65Hz Shunt Running

Basic Information

Place of Origin:	BEIJING.CHINA
Brand Name:	GFUVE
Model Number:	GF302D

Minimum Order Quantity:	3SETS
Packaging Details:	CARTON
Delivery Time:	1-2 WEEKS
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1500SETS/MONTH

Get Best Price Contact Now

ACCURACY:	0.05%, 0.1%	DISPLAY:	7-inch TFT Color Display Touch Screen
PHASE:	THREE PHASE	MEASUREMENT RANGE:	57.7V, 100V, 220V, 380V Or 69.3V, 120V, 240V, 480V( Optional),200mA, 1A, 5A, 20A, 100A
FREQUENCY:	45Hz-65Hz	HARMONIC:	2-51times
DIMENSION:	500x600x175MM	WEIGHT:	27KG
High Light:	TFT Display Electrical Power Calibrator , Electrical Power Calibrator 65Hz , KWh Electrical Power Calibrator

INTRODUCTION

The Portable Three Phase kWh Meter test equipment is used for grid corporation of measurement and energy test center, management department of power supply bureau, national energy measurement of testing authorities, and also used to test each kind of single/three phase kWh meter of industries and mining enterprises as well as electric meter manufacturers. Meanwhile, the calibrator also can be used as one high precision standard power source.

FEATURES

Able to test basic error, shunt running, start, standard error automatically and manually in single-step of single/three phase, according to relative regulation of kWh meter.
Able to do change test caused by voltage influence, frequency influence and harmonic influence.
Output of power source is speedy and stable, AC maximum output of each phase can reach 120A in maximum.
Voltage, current and phase position of each phase can be adjusted in split-phase, improving the flexibility of power source.
Frequency of each impulse input port can reach 40Hz.
7-inch TFT color display touch screen, English menu, simple and convenient operation, commonly used functions and current basic load point can be controlled in one button.
Each meter position can provide one standard, dependent RS485 port, and able to perform multi-function test, such as communication test.
Impulse port of each meter position, external polarity can be set randomly, able to adapt kWh meter of impulse cascade and common-anode.

TECHNICAL PARAMETERS

AC Voltage Output
Accuracy	0.05%, 0.1%
Power Supply	One Phase AC 180-265V, frequency 50/60Hz.
Range(U1,U2,U3)	57.7V, 100V, 220V, 380V or 69.3V, 120V, 240V, 480V( optional)
Adjustment range	(0-120)%RG⁽¹⁾
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	0.01%/120s
Distortion	0.3% (Non-capacitive load)
Output load	each phase 25VA
Measuring accuracy	0.05%RG
AC Current Output
Range(I1,I2,I3)	200mA, 1A, 5A, 20A, 100A
Adjustment range	(0-120)%RG
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	<0.01%/120s
Distortion	≤0.3% (Non-capacitive load)
Output load	45VA
Accuracy	0.05%RG
Power Output
Active power output stability	<0.01%RG/120s
Reactive power output stability	<0.02%RG/120s
Active power measuring accuracy	0.05%RG
Reactive power measuring accuracy	0.1%RG
Phase Output
Output adjustment range	0°-359.999°
Output adjustment fineness	10, 1, 0.1, 0.01 as optional.
Resolution	0.01°
Accuracy	0.05°
Power Factor
Adjustment range	-1 ~ 0 ~ 1
Resolution	0.0001
Measurement accuracy	0. 0005
Frequency Output
Adjustment range	45Hz-65Hz
Output adjustment fineness	5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.
Resolution	0.001Hz
Accuracy	0.005Hz
Voltage /Current/Harmonic Setting
Harmonic number	2-51times
Harmonic content	0-40%
Harmonic phase	0-359.99
Harmonic setting accuracy	(10%±0.1%)RD⁽²⁾
Power Energy Measurement Error
Active power energy	0.05%RG
Reactive power energy	0.1%RG
Power Pulse Output
Power pulse type	active pulse, reactive pulse
Active power pulse output	5V, 10mA
Power Pulse Input
Energy pulse type	support active and reactive pulse, the highest frequency power pulse input is 180K.
Mechanical parameters
Dimensions (W×D×H) (mm)	500x600x175
Weight (kg)	About 27
