GFUVE Single Phase 1000A Current Clamp P50 Warranty 12 Months With High Quality
1000:1 ; 1000:5
0-5A AC Or 0-1A AC

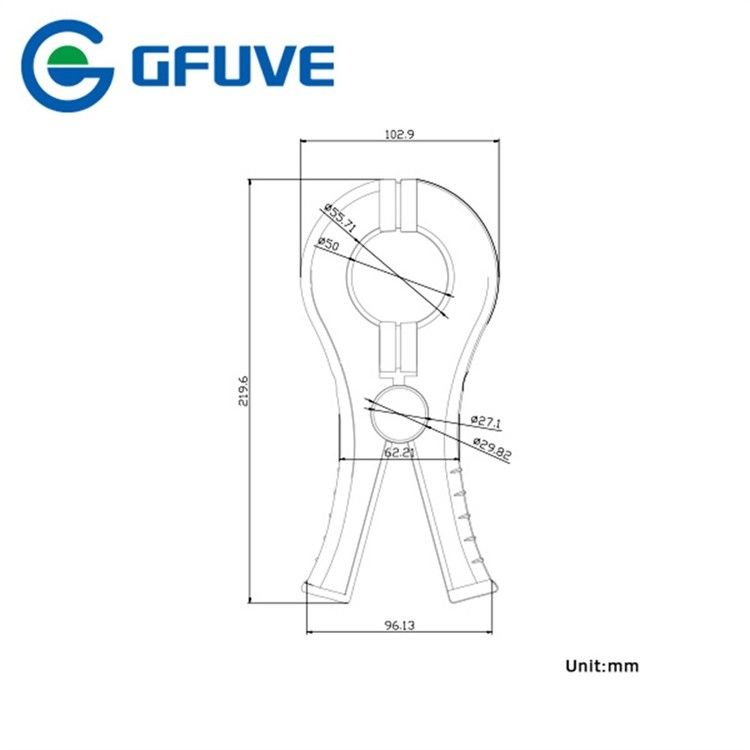

Dimensions (L X W X H) (mm):
102.9 X 219.6 X 28
oscilloscope current probe
oscilloscope amp probe

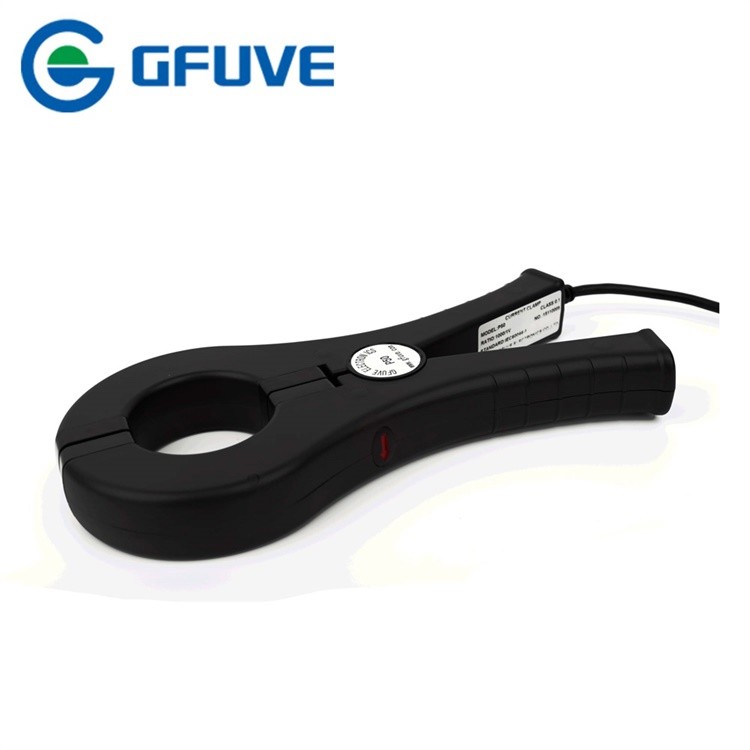

GFUVE single phase 1000A current clamp P50 warranty 12 months with high quality
In electrical and electronic engineering, a CT Sensor is an electrical device having jaws which open to allow clamping around an electrical conductor. This allows measurement of the current in a conductor without the need to make physical contact with it.
Clamp On Current Transformer P50 features 50 mm jaw size and high linearity. It is a current sensor which can measure 0-1200A cable. Product comes with a year warranty.
GFUVE P50 Series of Clamp-On Current Transformer's are designed for fast and easy installation. Clamp-On CT uses Permalloy Magnetic Core or Silicon Amorphous Core, with characteristics of small size. high precision, good stability and strong anti-interference ability.
Clamp-on Current Transformer Current Clamp is a high-precision AC current converter, and can meet a variety of measuring instruments, It can be used along with many kinds of instruments and devices, such as energy meter spot calibrator, multifunctional meter, oscilloscope, digital multimeter, dual clamp Ground resistance tester, dual clamp phase volt ammeter.
Clamp on current transformers are used for long term energy studies which includes electric power quality monitoring device. It is ideal for power and energy measurement.
Electric energy meter calibrator (on site)
Double clamp type ground resistance tester
Double clamp type phase volt-ampere meter
Multi-function energy meter
Power quality analyzer
Calibration instrument on site
Suitable for 1000A cable online measurement.Holding wire diameter: φ50mm
Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
