| Place of Origin: | BEIJING,CHINA |
|---|---|
| Brand Name: | GFUVE |
| Model Number: | GF112 |
| Minimum Order Quantity: | 1500SETS |
| Packaging Details: | CARTON |
| Delivery Time: | 1-2WEEKS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1500SETS/MONTH |
| Accuracy: | 0.3%, 0.5% | Power Supply: | AC 110-264V 50/60Hz |
|---|---|---|---|
| Voltage Range: | 0-264V | Frequency: | 45-65 Hz |
| Current Range: | 10mA-40A Or 10mA-120A | Dimension: | 185×67×30mm |
| Weight: | 1kg | ||
| High Light: | 2pcs Clamp Electric Meter Tester,RS232 Electric Meter Tester,6.4" LCD Display Electric Meter Tester |
||

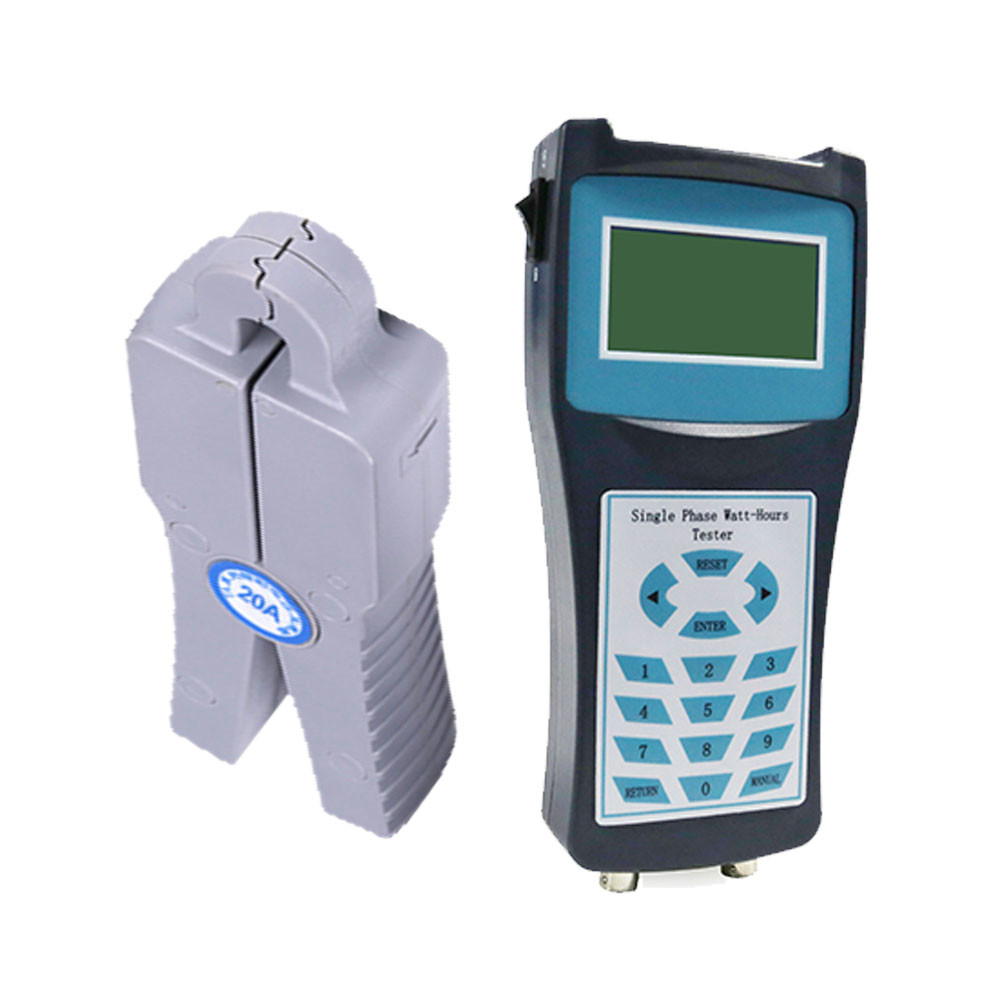

Electric Meter Tester ,2pcs Clamp Optional,Mono Phase,Wide Measurement,Available To Measure Various Parameters
INTRODUCTION

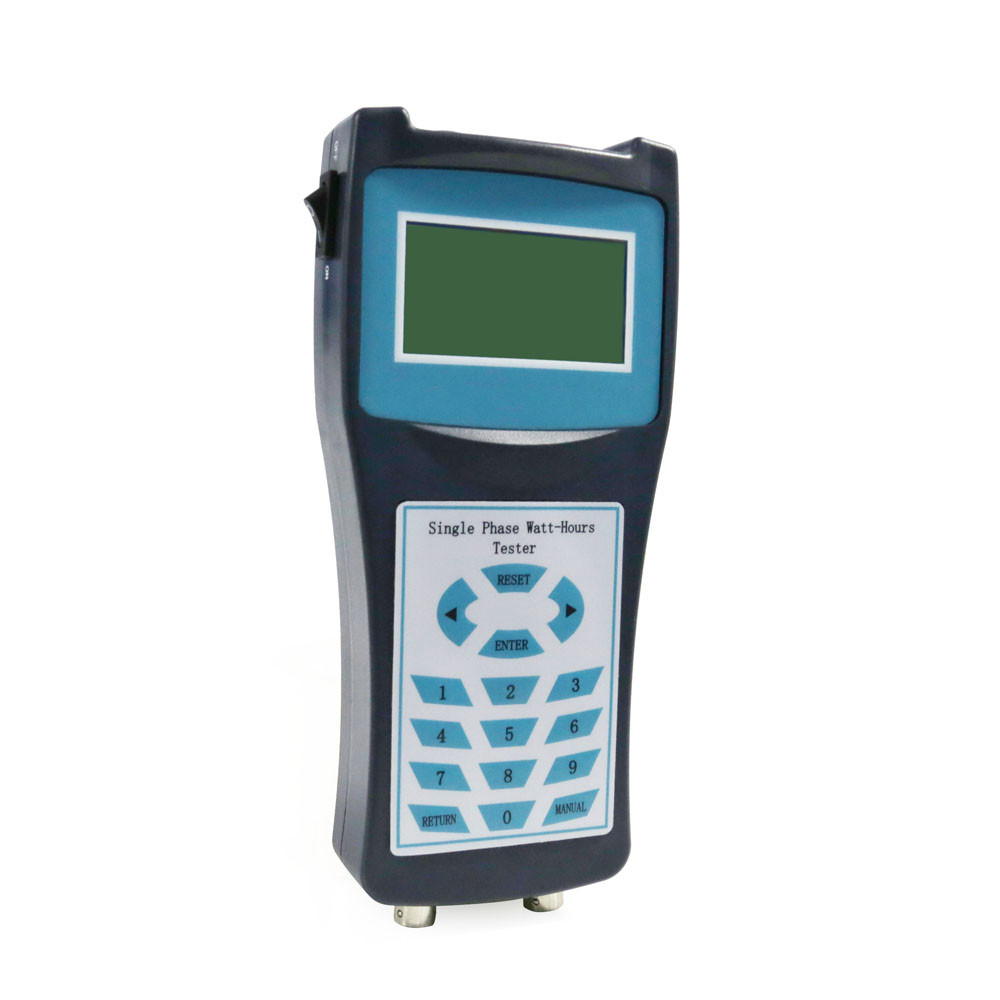

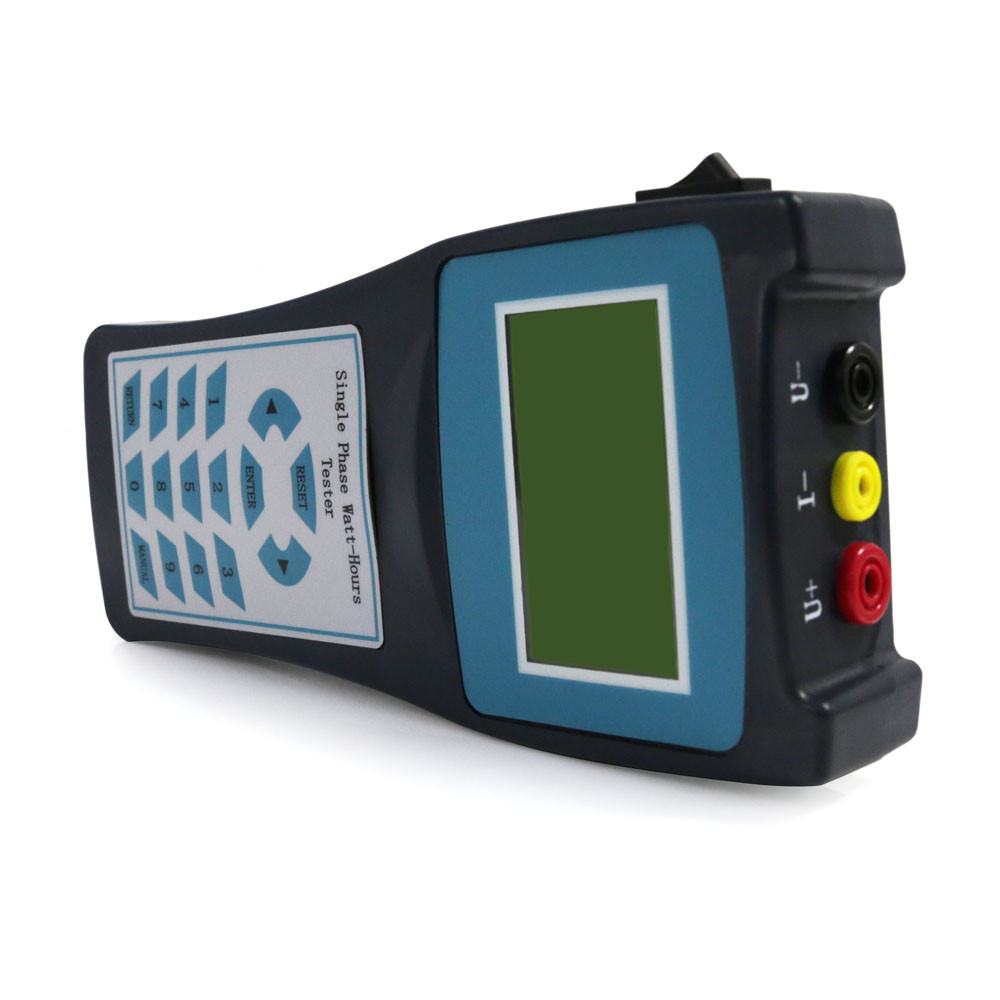

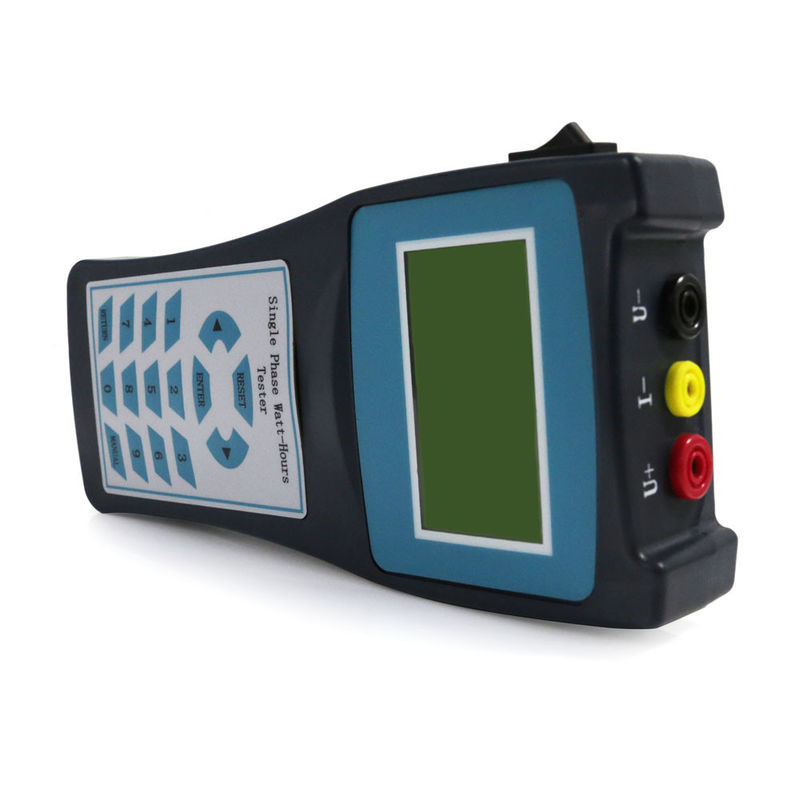

The GF112 is a portable working standard based on state of the art technology in power and energy measurement. Various measuring features combined with a user friendly operation concept is providing the greatest possible flexibility for a comprehensive testing of metering installations in the field. Its excellent measurement stability is reflecting the high quality of the system. The GF112 working standard is distinguished by its exemplary combination of functionality and design. It is offering optimal ergonomics and functionality combined with an excellent menu guided operation via built-in soft-keys and a 6.4” LCD-display.
FEATURES
PARAMETERS
| Active power measurement accuracy | 0.3%, 0.5% |
| Energy measurement accuracy | 0.3%, 0.5% |
| Power supply | AC 110-264V 50/60Hz |
| Warming-up time | < 5 min |
| Power consumption | ≤5VA |
| Voltage measurement | |
|---|---|
| Range | 0-264V |
| Accuracy | 0.30% |
| Current measurement | |
| Range | 10mA-40A or 10mA-120A |
| Accuracy | 0.3% |
| Phase measurement | |
| Range | 0°-359.9° |
| Resolution | 0.1° |
| Accuracy | 0.5° |
| Frequency measurement | |
| Range | 45-65 Hz |
| Resolution | 0.01Hz |
| Accuracy | 0.05Hz |
| Power factor measurement | |
| Range | 0.4000 ~ +1.0000 |
| Resolution | 0.001 |
| Accuracy | 0.01 |
| Electric energy pulse output | |
| Pulse constant | 900 |
| Energy pulseinput | |
| Input range of pulse constant | 1-25000 |
| Pulse input level | 5V |
| Mechanical parameters | |
| Dimensions (W×D×H) (mm) | 185×67×30 |
| Weight (kg) | 1 (mains) 2 (appendix and bag) |
| Environmental conditions | |
| Working temperature | -10°C to 50°C |
| Working humidity | 5%- 85%RHD |
| Storage temperature | -25°C to 70°C |
| Storage humidity | 5% -95%RHD |
