Place of Origin: | CHINA |
---|---|
Brand Name: | GFUVE |
Certification: | IEC60044-1;IEC61869-2;ANSI C57.13;GB1208-2006;NTC2250 |
Model Number: | LZCK-55 |
Minimum Order Quantity: | 10 |
Price: | USd /$85-$120 /PC |
Packaging Details: | standard package |
Payment Terms: | T/T |
Supply Ability: | 10000Pcs/month |
Accuracy Class: | 0.5S,0.5%,1%,3% | Range Of Primary Rated Current: | 100-1500A |
---|---|---|---|
Rated Load: | ≤10VA | Rated Secondary Current: | 5A,1A |
Output Signal: | 1A,5A,333mV,1V,5V(customized) | Color: | Orange Or Black |
Aperture(mm): | 55 | Cable Length: | 2.5m,5m,10m(customized) |
Dimensions(mm): | 180x138x52 | Weight(kg): | 2 |
Rated Short-time Thermal Current: | 40KA,1S | Rated Continuous Thermal Current: | 150%|1n |
Safety Factor Rating: | (FS)<10 | ||
Highlight: | donut type current transformer,ring core current transformer |

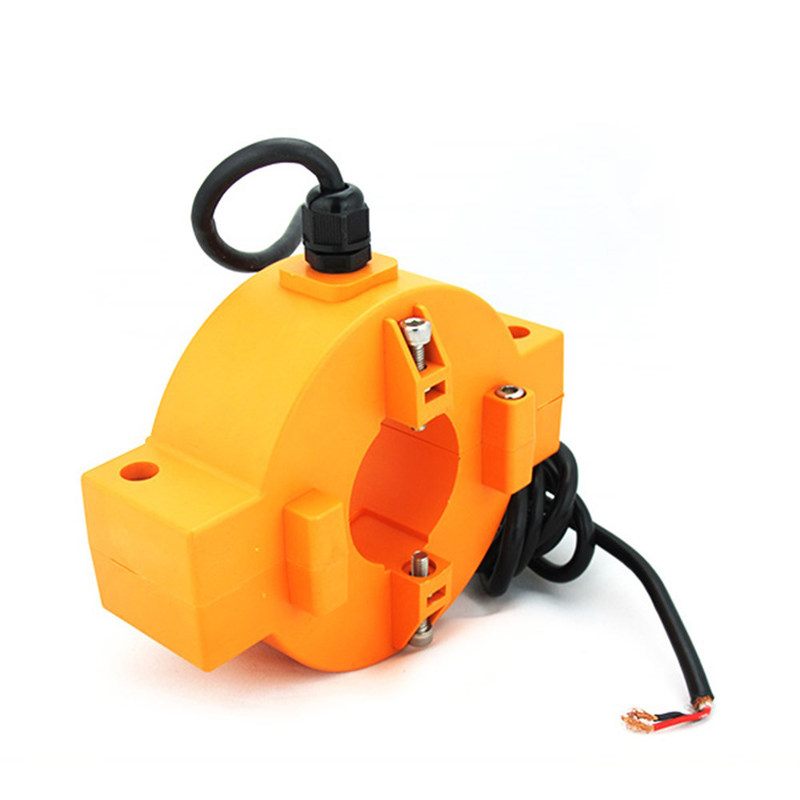

Outdoors waterproof 1500A medium voltage Φ55 permalloy split core current transformer
LZCK series current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.
Technical parameters | |
Standards |
IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
Accuracy Class | 0.5S, 0.5%, 1%, 3% |
Range of primary rated current | 100-1500A |
Range of Rated load | ≤10VA |
Rated frequency | 50/60Hz |
Rated secondary current | 5A or 1A |
Rated short-time thermal current | 40kA, 1S |
Rated continuous thermal current | 150%I1n |
Secondary winding power frequency withstand voltage | 3kV, 1min |
Safety Factor Rating | (FS) <10 |
Output signal | 1A, 5A, 333mV, 1V or 5V(customized) |
Cable length | 2.5m, 5m, 10m(customized) |
Flame retardant ABS plastic shell inside, jaw waterproof apron. Mechanical parameters |
|
Aperture (mm) | Φ55 |
Dimensions (W×D×H) (mm) | 180×138×52 |
Weight (kg) | 2 |
Working conditions | |
Operating temperature | -35°C to +65°C, average not exceeding +40°C |
Storage temperature | -40°C to +70°C |
Ingress Protection | IP65 |
Environment | outdoors or indoors |
The Height of above sea level | 0- 3000m |
Conditions |
No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
