| Place of Origin: | China |
|---|---|
| Brand Name: | GFUVE |
| Certification: | IEC,ISO |
| Model Number: | LZZW3-35Q |
| Minimum Order Quantity: | 1 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Box |
| Delivery Time: | 3 - 7 Days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 10000 Pieces Per Month |
| Color: | Red | Environment: | Outdoor |
|---|---|---|---|
| Material: | Epoxy Resin | Standards: | IEC60044-1, IEC61869-2 And ANSI/IEEE C57.13 |
| Name: | Instrument Multi Ratio Current Transformer | Weight(KG): | 90 |
| High Light: | current potential transformer,power potential transformer |
||
Description

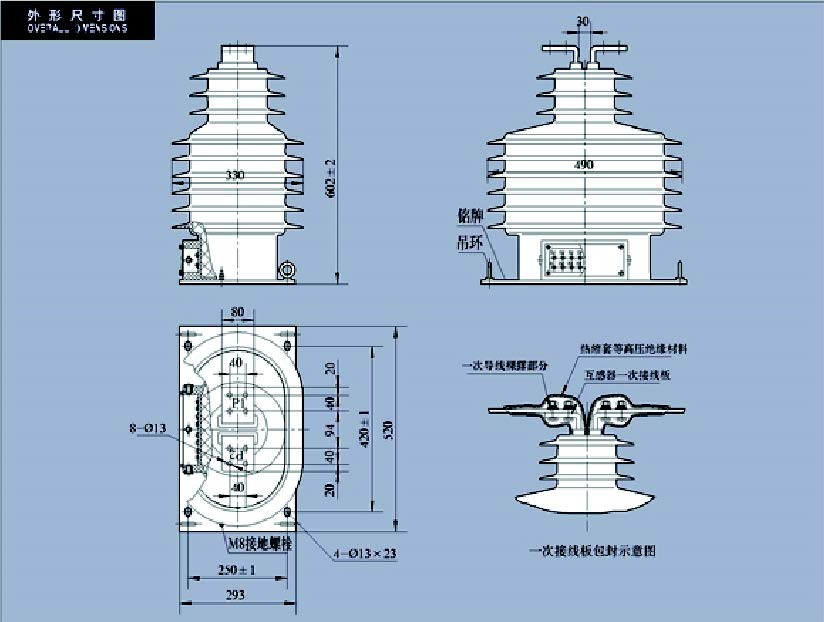

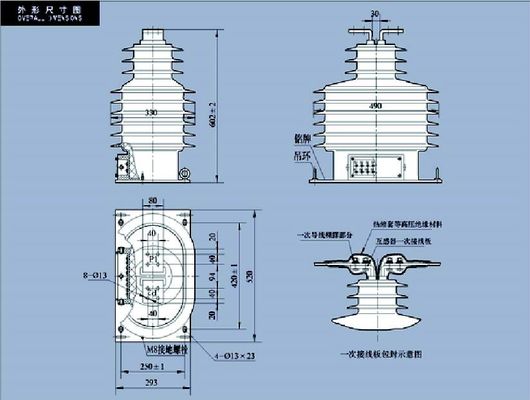

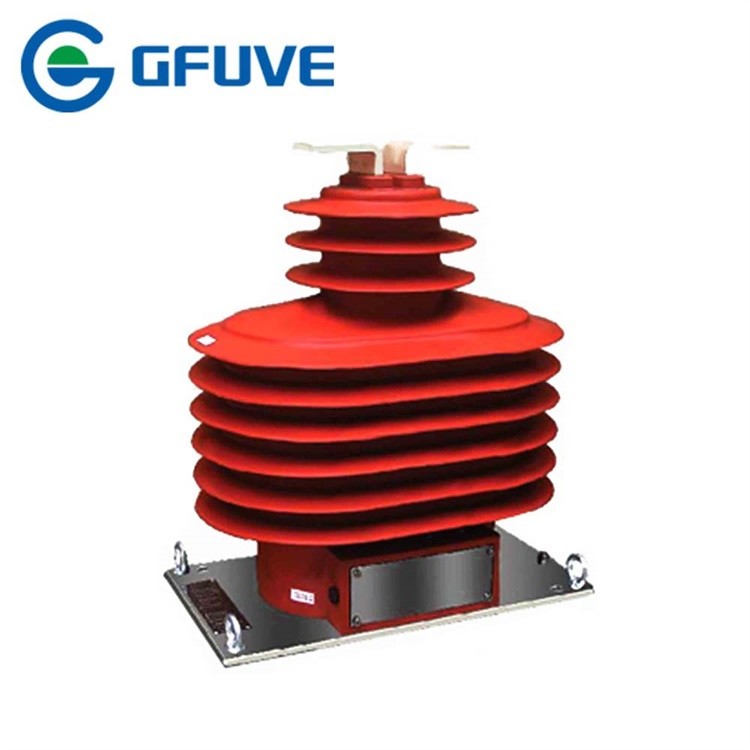

The outdoor instrument current transformers LZZW3-35Q are fully enclosed and cast in epoxy resin. Instrument transformer is equipped with one core and coil assembly rated for measurement and protection, and then output multi ratio.
Technical data
1.two windings
| Rated primary current(A) | Accuracy class combination |
Rated secondary output(VA) | Surface creepage distance (mm) |
Weight (KG) |
||||
|---|---|---|---|---|---|---|---|---|
| 1S/2S | 0.2(S)0.5S | 0.5 | 5P10 | 5P15 | 5P20 | |||
| 10-630 | 0.2(S)/0.5(S) 0.2(S)/5p 0.5(S)/5p |
10 | 20 | 100 | 60 | 40 | 1300 | 90 |
| 750-2000 | 120 | 75 | 50 | |||||
2.Three windings
| Rated primary current(A) | Accuracy class combination |
Rated secondary output(VA) | Surface creepage distance (mm) |
Weight (KG) |
||||
|---|---|---|---|---|---|---|---|---|
| 1S/2S/3S | 0.2(S)0.5S | 0.5 | 5P10 | 5P15 | 5P20 | |||
| 10-500 | 0.2(S)/0.2(S)/5P 0.2(S)/0.5(S)/5p 0.5(S)/0.5(S)5p |
10 | 20 | 50 | 30 | 25 | 1300 | 90 |
| 600-1000 | 80 | 50 | 30 | |||||
| 1200-2000 | 100 | 60 | 40 | |||||
| 100-630 | 0.2(S)/5p/5p 0.5(S)/5p/5p |
10 | 20 | 30 | 20 | 15 | ||
| 750-1000 | 50 | 30 | 20 | |||||
| 1200-1600 | 60 | 30 | 25 | |||||
| 2000 | 60 | 40 | 25 | |||||
3.four windings singls transformaiton radio
| Rated primary current(A) | Accuracy class combination |
Rated secondary output(VA) | Surface creepage distance (mm) |
Weight (KG) |
||||
|---|---|---|---|---|---|---|---|---|
| 1S/2S/3S/4S | 0.2(S)0.5S | 0.5 | 5P10 | 5P15 | 5P20 | |||
| 10-800 | 0.2(S)/0.2(S)/5P/5P 0.2(S)/0.5(S)/5p/5P 0.5(S)/0.5(S)5p/5P |
10 | 20 | 25 | 15 | 10 | 1300 | 90 |
| 1000 | 30 | 20 | 10 | |||||
| 1200-2000 | 40 | 25 | 15 | |||||
4.three windings singls transformaiton radio
| Rated primary current(A) | Accuracy class combination |
Rated secondary output(VA) | Surface creepage distance (mm) |
Weight (KG) |
||||
|---|---|---|---|---|---|---|---|---|
| 1S/2S/3S/4S | 0.2(S)0.5S | 0.5 | 5P10 | 5P15 | 5P20 | |||
| 10-15-20 | 0.2(S)/0.2(S)/5P/5P 0.2(S)/0.5(S)/5p/5P 0.5(S)/0.5(S)5p/5P |
10 | 20 | 25 | 15 | 10 | 1300 | 90 |
| 15-20-30 | ||||||||
| 20-30-40 | ||||||||
| 30-40-50 | ||||||||
| 40-50-75 | ||||||||
| 50-75-100 | ||||||||
| 75-100-150 | ||||||||
| 100-150-200 | ||||||||
| 150-200-300 | ||||||||
| 200-300-400 | ||||||||
| 300-400-500 | ||||||||
| 400-500-600 | ||||||||
| 500-600-800 | ||||||||
| 600-800-1200 | ||||||||
| 800-1200-1500 | ||||||||
| 1200-1500-2000 | ||||||||
5.ldyn
| Rated primary current(A) | Ith/ls(KA r.m.s.) | Idyn(KA peak) | |
|---|---|---|---|
| Double transformaion ratio | Single transformaion ratio | ||
| 10-15-20 | 10 | 2 | 5 |
| 15-20-30 | 15 | 3 | 7.5 |
| 20-30-40 | 20, 25 | 4 | 10 |
| 30-40-50 | 30 | 6.3 | 15.7 |
| 40-50-75 | 40 | 9.4 | 23.6 |
| 50-75-100 | 50 | 12.6 | 31.5 |
| 75-100-150 | 75 | 15.7 | 39 |
| 100-150-200 | 100 | 22 | 55 |
| 150-200-300 | 150 | 31.5 | 78.7 |
| 200-300-400 | 200, 250 | 47 | 118 |
| 300-400-500 | 300 | 63 | 157.5 |
| 400-500-600 | 400 | 63 | 157.5 |
| 500-600-800 | 500 | 80 | 200 |
| 600-800-1200 | 600-1200 | 80 | 200 |
| 800-1200-1500 | 1500-200 | 140 | 200 |
| 1200-1500-2000 | |||
