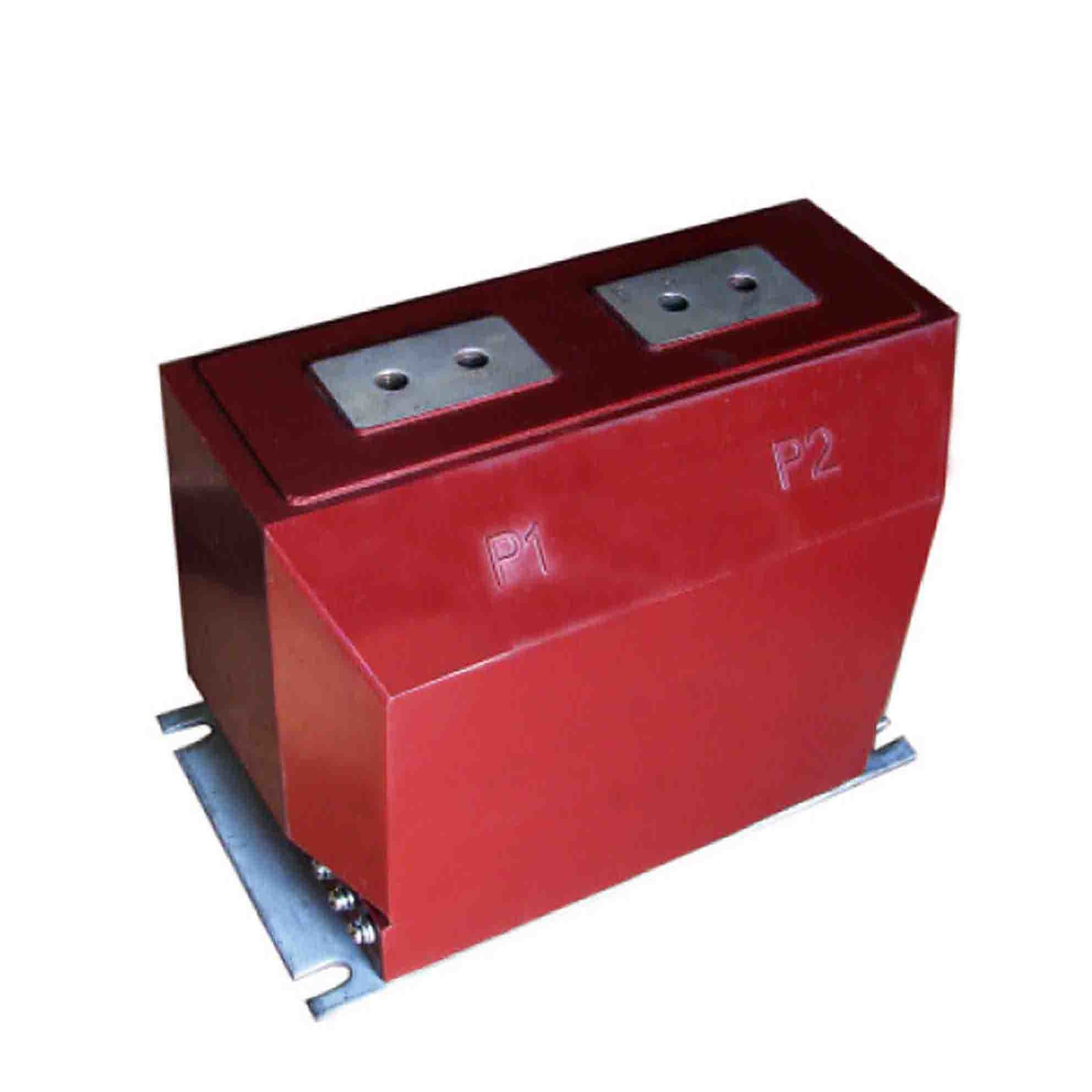

Lightweight Instrument Current Transformer , Neutral Current Transformer 10-4000A

Lightweight Instrument Current Transformer , Neutral Current Transformer 10-4000A
Lightweight Instrument Current Transformer , Neutral Current Transformer 10-4000A Lightweight Instrument Current Transformer , Neutral Current Transformer 10-4000A Lightweight Instrument Current Transformer , Neutral Current Transformer 10-4000A
Basic Information
Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CE , ISO9001
Model Number: GFLZZ0956-10C4
Minimum Order Quantity: 3 PCS
Price: Negotiable
Packaging Details: Standard Export Carton Box
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 PCs / Month
Get Best Price Contact Now
Name: MV Current Transformer Instrument Rated Primary Current: 10-4000A
Class: 0.2s , 0.5 Standards: 50Hz Or 60Hz
Rated Load: Rated Load ≤40VA Application: Current Measurement
Highlight:

current potential transformer

,

electromagnetic potential transformer



 Class 0.2s Mid Voltage Current Transformer Measurement Instrument




The current transformer of the type  GFLZZ0956-10C4    is casting resins and fully enclosed . It is used for metering electric energy and current , relay protection in the electrical system up to rated frequency 50Hz of 60Hz . The current instrument transformers can be executed according to the standards IEC60044-1 , IEC61869-2 and ANSI/IEEE C57.13 .





Rated primary current  10-4000A

Rated load ≤ 40VA

Rated frequency 50Hz or 60Hz

Rated secondary current 5A or 1A

Rated short-time thermal current 100kA, 1S

Rated dynamic current 350KA

Rated insulation level 12/42/75KV

FS ≤10





Ratied Primary Current(A) Class Combination Accuracy class and Rated output
(VA)		 Short-time thermal current
(kA/S)		 Rated dynamic current
(kA)
0.2S
 		 0.5S 0.2 0.5 5P10 5P15
10-40 0.2(S)/0.2(S)/5P
0.2(S)/0.5(S)/5P
0.5(S)/0.5(S)/5P		 10 10 10 15 15 10 150I1n 375I1n
50-75 　 　 　 8 20
100 　 　 　 21 52.5
150 　 　 　 31.5 78.8
200-250 　 　 　 40 100
300-400 15 20 25 15 45 112.5
500 　 　 　 55 130
600 　 30 20 55 130
750-1250 20 25 　 　 63 130
1500-2000 30 40 30 100 200
2500-4000 　 　 20 100 200
