High Accuracy Portable Electronic Measurement Equipment For CT PT Testing

High Accuracy Portable Electronic Measurement Equipment For CT PT Testing
High Accuracy Portable Electronic Measurement Equipment For CT PT Testing High Accuracy Portable Electronic Measurement Equipment For CT PT Testing High Accuracy Portable Electronic Measurement Equipment For CT PT Testing High Accuracy Portable Electronic Measurement Equipment For CT PT Testing High Accuracy Portable Electronic Measurement Equipment For CT PT Testing High Accuracy Portable Electronic Measurement Equipment For CT PT Testing
Basic Information
Place of Origin: CHINA
Brand Name: GFUVE
Certification: ISO CE
Model Number: GF106
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Industrial Case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 200 Sets/Month
Get Best Price Contact Now
Name: GF106 High Accuracy Portable Electronic Test Equipment For CT PT Testing Electrical Parameters Accuracy: 0.05%, 0.1%
Excitation Output Voltage: 0-220Vrms Excitation Output Current: 0-5Arms (20A Peak-value)
Relative Humidity: 90RH% Overall Dimension (L X W X H) (mm): 410 X 250 X 300
Highlight:

electronic test equipment

,

electronic measurement equipment

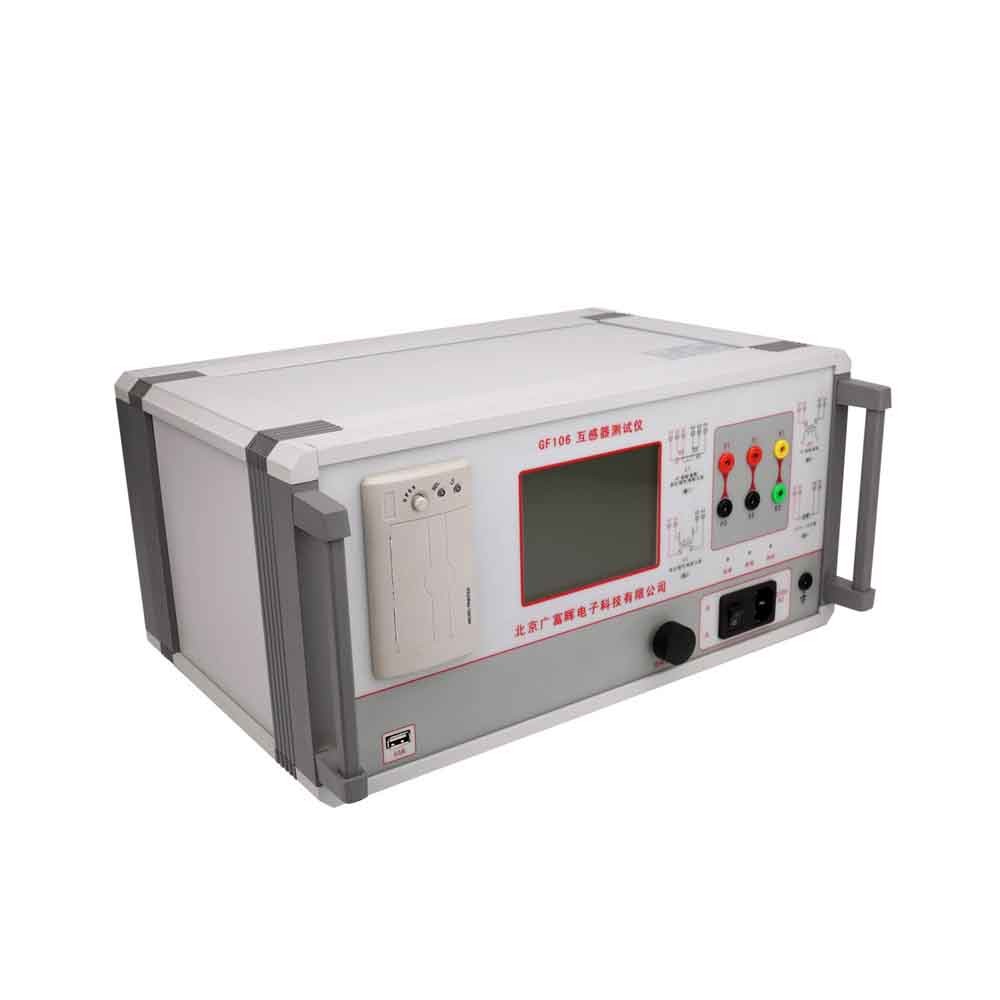

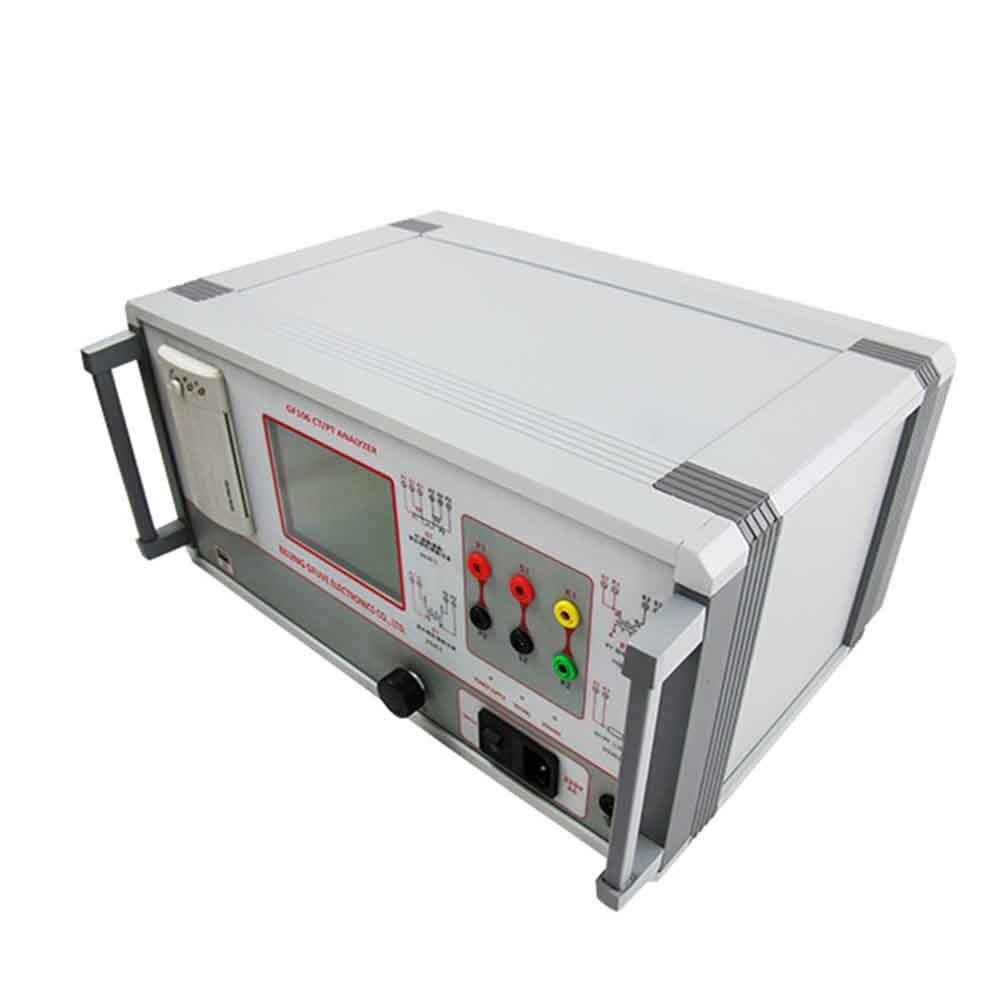

GF106 High Accuracy Portable Electronic Test Equipment for CT PT



Testing





GF106 CT/PT TESTER is mainly used for field testing, it can finish the measurements (M) and protection (P) class CT, PT and TYP class CT. Adopt LCD, self-equipped mini type printer supporting field printing; supporting to use USB flash disk to dump data, with simple and convenient operation.





FEATURES

  • Steady and transient state characteristic tests of various types of CT/PT
  • The use of advanced power technology, the test knee point reaches up to 40kV
  • No external other auxiliary equipment, stand-alone to complete all test items
  • CT test, easy to test, all the tests are using the same wire connection except the load test
  • It carries with thermal printer, so it can print test results on site
  • Parameters such as knee point current and voltage
  • Parameters such as 10% error curve, 5% error curve
  • The device can store 3000 groups of test data which would not be lost if the device is power off.
  • The data can be displayed and analyzed after the test, or transferred to PC through USB disk and produce a Word file report
  • Portability: weight < 12kg


FUNCTION

I. Current Transformer (CT) II. Voltage Transformer (PT)
1. Magnetization curve 1. Excitation characteristic test
2. Transformation ratio test 2. Transformation ratio test
3. Polarity 3. Polarity
4. 5% and 10% error curve 4. Ratio error, phases
5. Current Injecting 5. Degauss
6. Degauss 6. Calculation of knee point value
7. Ratio error, phases 7. Actual secondary load (burden), test (burden)
8. Automatic calculation of excitation knee point value 8. Resistance test
9. Actual secondary load test (burden) (load test)　
10. Resistance test　
11. Secondary winding time constant (Ts)　
12. Remanence coefficient (Kr)　
13. Transient dimensioning factor (Ktd)　
14. Peak instantaneous error (Er)　
15. Magnetizing inductance (LU)　

PARAMETERS

Electrical parameters
Accuracy 0.05%, 0.1%
Power supply AC 220V±10% or AC 110V±10%, 50/60Hz
Excitation output voltage 0-220Vrms
Excitation output current 0-5Arms (20A peak-value)
Automatic frequency variation range 0.1-60Hz
Equivalent excitation voltage ≤5000V
Accuracy ≤0.5% (0.2%RD+0.3%RG)
Secondary winding DC resistance measurement Range 0.1-300Ω
Accuracy ≤0.5% (0.2%RD+0.3%RG)
Secondary actual load measurement Range 5VA-1000VA
Accuracy ≤0.5% (0.2%RD+0.3%RG)±0.1VA
CT/PT phase error measurement Accuracy ±4min
Resolution 0.01min
CT ratio error measurement Range 1-30000
Accuracy ≤0.5%
PT ratio error measurement Range 1-10000
Accuracy ≤0.5%
Standards　
Reference standards GB1207-2006, GB1208-2006, GB16847-1997
IEC60044-1, IEC60044-6, IEC61869-2-2012
Safety standards GB 4793.1-2007
EMC EMC standard 89/336/EEC
FCC Subpart B of Part 15 Class A
IEC 1000-4-2/3/4/6
Mechanical parameters　
Overall dimension (L x W x H) (mm) 410 x 250 x 300
Weight (kg) ≤10
Environmental conditions　
Relative humidity 90RH%
Operating temperature -10°C to +40°C
Altitude ≤2000m

MAIN FUNCTIONS

The test items mainly include　
Steady Transient
excitation characteristic secondary winding time constant (Ts)
transformation ratio remanence coefficient (Kr)
polarity transient dimensioning factor (Ktd)
ratio error peak instantaneous error (Er)
phases magnetizing inductance (LU)
5% and 10% error curves other parameters
resistance　
secondary load　
