Place of Origin: | Beijing China |
---|---|
Brand Name: | GFUVE |
Model Number: | GF335 |
Minimum Order Quantity: | 1 |
Packaging Details: | Wooden Box |
Delivery Time: | 7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000/Month |
Voltage: | 0-1200V | Current: | 0-500A |
---|---|---|---|
Frequency: | 45-65Hz | Harmonic: | 2nd-64th |
Power Factor: | 0 To ±0.9999 | Phase: | 0-359.999° |
Power Supply: | One-phase Power Supply (85-265VAC/45-70Hz) | Communication Port: | RS232 |
Main Machine (L×W×H) (mm): | 240 X 157 X 60 | Weight (kg): | 1.5 |
Environment: | -10 To +55°C, 15-85%RHD | Altitude (m): | -10 To 3500 |
Temperature: | -20°C To 65°C | ||
High Light: | power quality analyser,power harmonics analyzer |

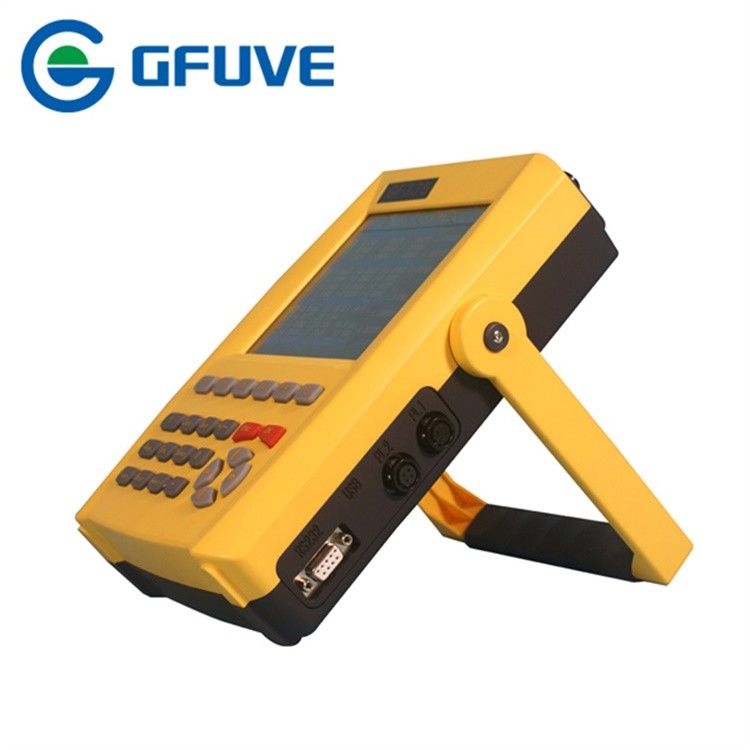

GF335 Class 0.1 Three Phase Handheld Small Size Power Quality Analyzer
Items | Range | Effective resolution | Accuracy1 | Accuracy2 | Remarks |
---|---|---|---|---|---|
Voltage | 0-1200V | 0.001V | 0.1% | 0.05% | 2 ranges |
Current | 0-500A | 0.001A | 0.1% | 0.05% | 3 ranges |
Clamp-on | 0.01-100A | 0.01A | 0.15% | 0.15% | option(2) |
Frequency | 45-65Hz | 0.001Hz | 0.01Hz | 0.002Hz | 5 bit display |
Active power | 0 to ±Umax x Imax | 0.01W | 0.5% | 0.2% | 5 bit display |
Reactive power | 0 to ±Umax x Imax | 0.01Var | 1% | 0.5% | 5 bit display |
Apparent power | 0 to ±Umax x Imax | 0.01VA | 1% | 0.5% | 5 bit display |
Active energy | 0.5% | 0.2% | |||
Reactive energy | 1% | 0.5% | |||
Harmonic | 2nd-64th | 0.5% | 0.2% | ||
Power factor | 0 to ±0.9999 | 0.0001 | ±0.001 | ±0.0005 | 5 bit display |
Phase | 0-359.999° | 0.005° | ±0.05° | ±0.02° | 6 bit display |
(1) Directly test (2) Clamp-on 500A,3000A,5000A is optional. |
|||||
Electrical parameters | |||||
Power supply | One-phase power supply (85-265VAC/45-70Hz) Lithium battery, 5000mAh |
||||
Communication port | RS232 | ||||
Energy constant | 3600imp/kWh, 360000imp/kWhx4 | ||||
Frequency influence | ≤20ppm/Hz | ||||
Pulse interface | TTL energyx6 | ||||
Mechanical parameters | |||||
Main machine (L×W×H) (mm) | 240 x 157 x 60 | ||||
Weight (kg) | 1.5 | ||||

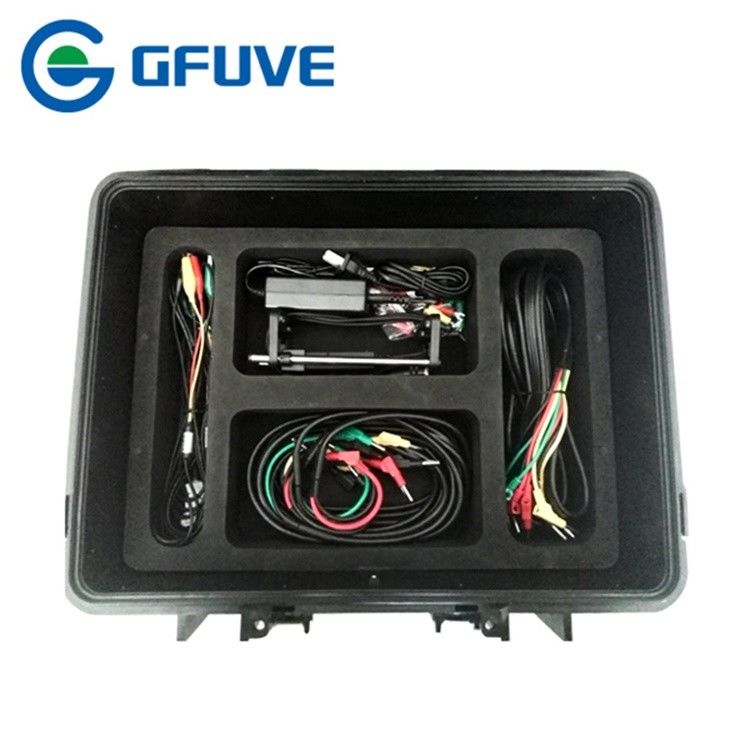

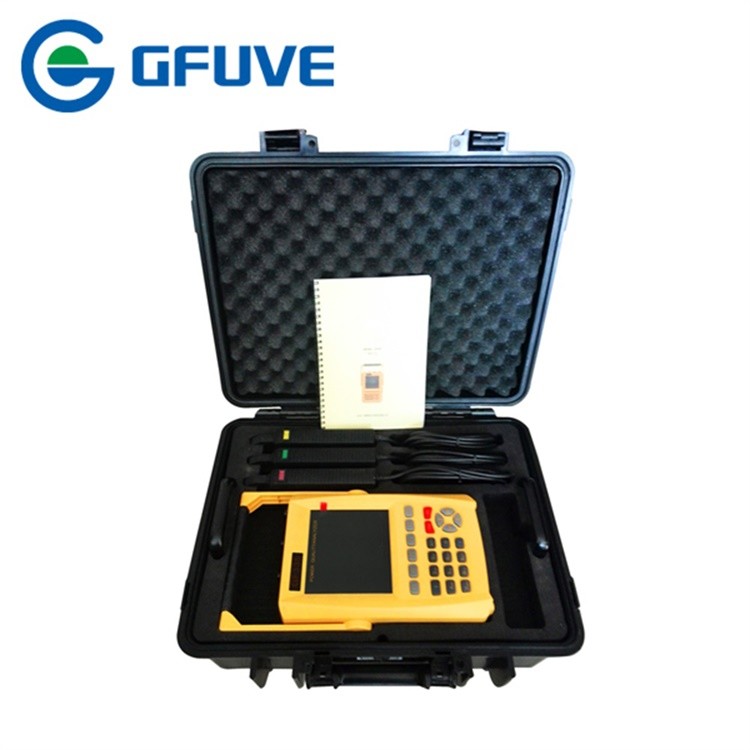

Carrier dimension (L×W×H) (mm) | 470 x 380 x 220 | ||||
Carrier weight (kg) | 10.6 (Including three clamp-on (100A), wires and software) | ||||
Environmental conditions | |||||
Environment | -10 to +55°C, 15-85%RHD | ||||
Altitude (m) | -10 to 3500 | ||||
Temperature | -20°C to 65°C | ||||
Temperature | ≤25ppm/°C (U/I), ≤50ppm/°C (others) |
