Beijing GFUVE Instrument Transformer Manufacturer Co.,Ltd.
an exclusive current transformer, split core current transformer, current clamp & voltage transformer manufacturer.
| Place of Origin: | China |
|---|---|
| Brand Name: | GFUVE |
| Certification: | CE UL |

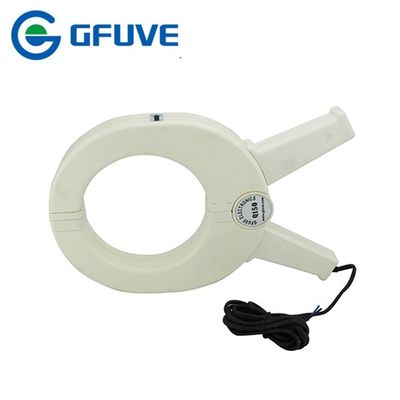

| Model Number: | Q150 |
| Minimum Order Quantity: | 1 |
| Price: | 300-350 USD/PC |
| Packaging Details: | Export Carton Box |
| Delivery Time: | Within 7 Days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 5000 pieces per month |
| Ratio: | 1000: 1 Or 5000:1 (customized) | Primary Current: | 0 - 5000A AC |
|---|---|---|---|
| Secondary Current: | 0 - 5A AC (customized) | Max. Cont. Input Current: | 6000A |
| Over Voltage Category: | CAT III 600 V | Accuracy: | 0.2%, 0.5%, 1% |
| Temperature Range: | -20°C To +55°C | Output: | 2.5 Meter Cable With D01 Connector |
| Output Signal (AC Voltage): | 333mV,500mV,1V,5V AC At Nominal Input Current | Frequency Range: | 40-2000Hz |
| Holding Wire Diameter (mm): | φ150 | Max. Jaw Opening (mm): | 150 |
| High Light: | current clamp probe,ac current clamp probe |
||
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 5000:1 (customized) |
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 0 - 5000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 6000A |
| Over voltage category | CAT III 600 V |
| Output signal (AC current) | 500mA,1A,5A AC at nominal input current |
| Output signal (AC voltage) | 333mV,500mV,1V,5V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 229x364x 44 |
| Weight (g) | 1700 |
| Holding wire diameter (mm) | φ150 |
| Max. jaw opening (mm) | 150 |
| Jaw color | White |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, energy meter test equipment, reference standard meter, phantom load power source, relay test set, CT PT analyzer, transformer test, High voltage test set, electrical calibrator, power analyzer and intelligent digital meter, transducer, current probe, split core ct, current transformer, voltage transformer and handheld terminal etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
F&Q
1. who are we?
We are based in Beijing, China, start from 2008,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
energy meter calibration,Relay test set,ct analyzer,Split core current transformer,Power quality analyzer
4. why should you buy from us not from other suppliers?
We have more than 16 years research experience in the electric power industry. meter test equipment, phantom load power source, ct pt analyzer, relay test set, HV ammeter recorder, power meter, power quality analyzer, transducer, split core ct, ct & pt.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
