Place of Origin: | China |
---|---|
Brand Name: | GFUVE |
Certification: | CE |
Model Number: | GF302D1 |
Minimum Order Quantity: | 1SET |
Price: | Negotiable |
Packaging Details: | Wooden box |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100set/month |
Accuracy Class: | 0.05%, 0.1% | Power Supply: | One Phase AC 100-265V, Frequency 50/60Hz. |
---|---|---|---|
AC Voltage Output Range(U1,U2,U3): | 57.7V, 100V, 220V, 380V Or 69.3V, 120V, 240V, 480V( Optional) | AC Current Output Range (I1, I2, I3 ): | 200mA, 1A, 5A, 20A, 100A(optional) |
Active Power Output Stability: | <0.01%RG/120s | Phase Output: | 0°-359.999° |
High Light: | electrical test equipment calibration,energy meter calibration equipment |
Description

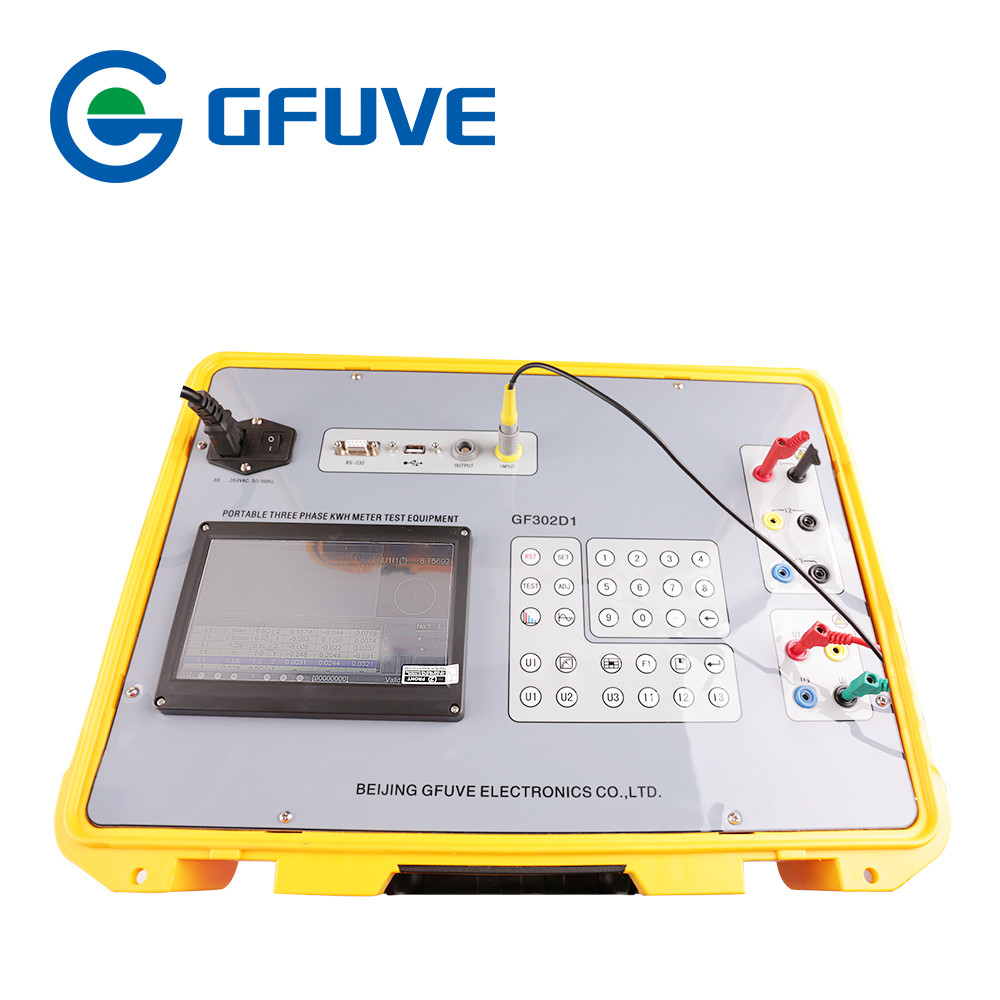

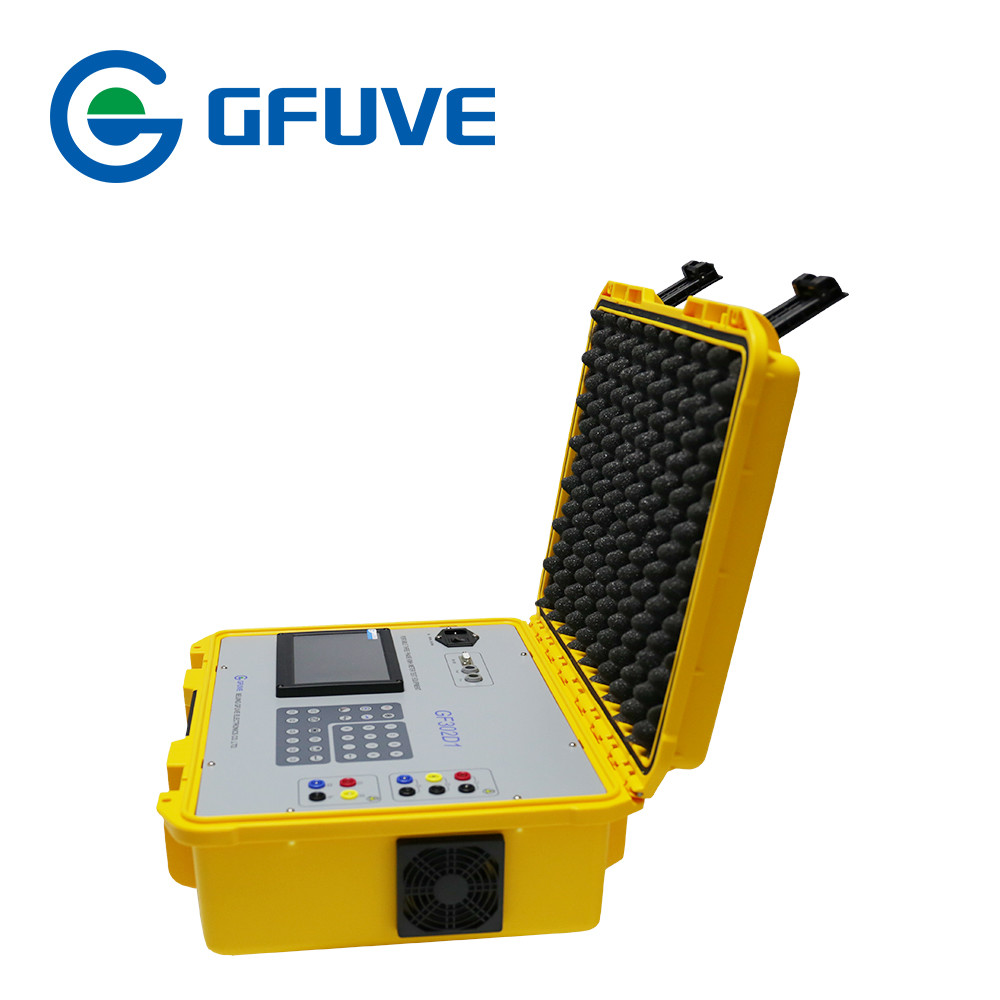

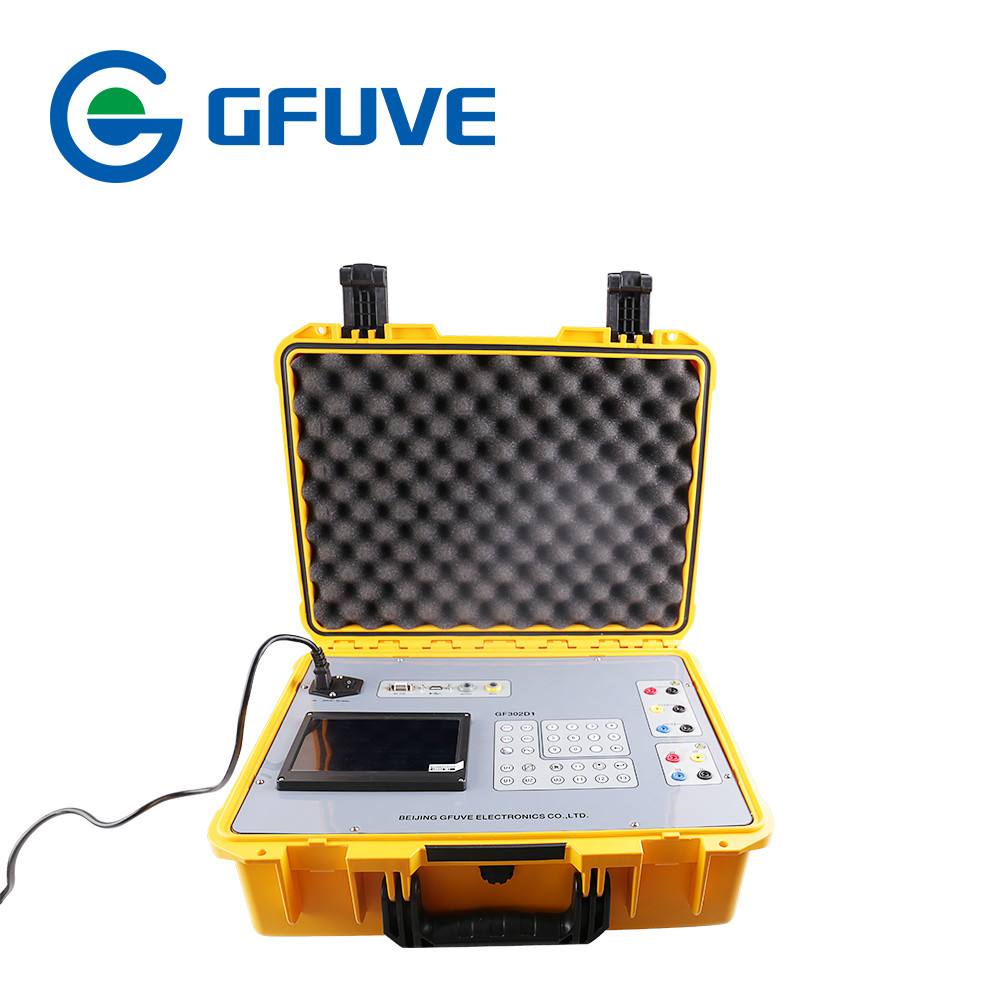

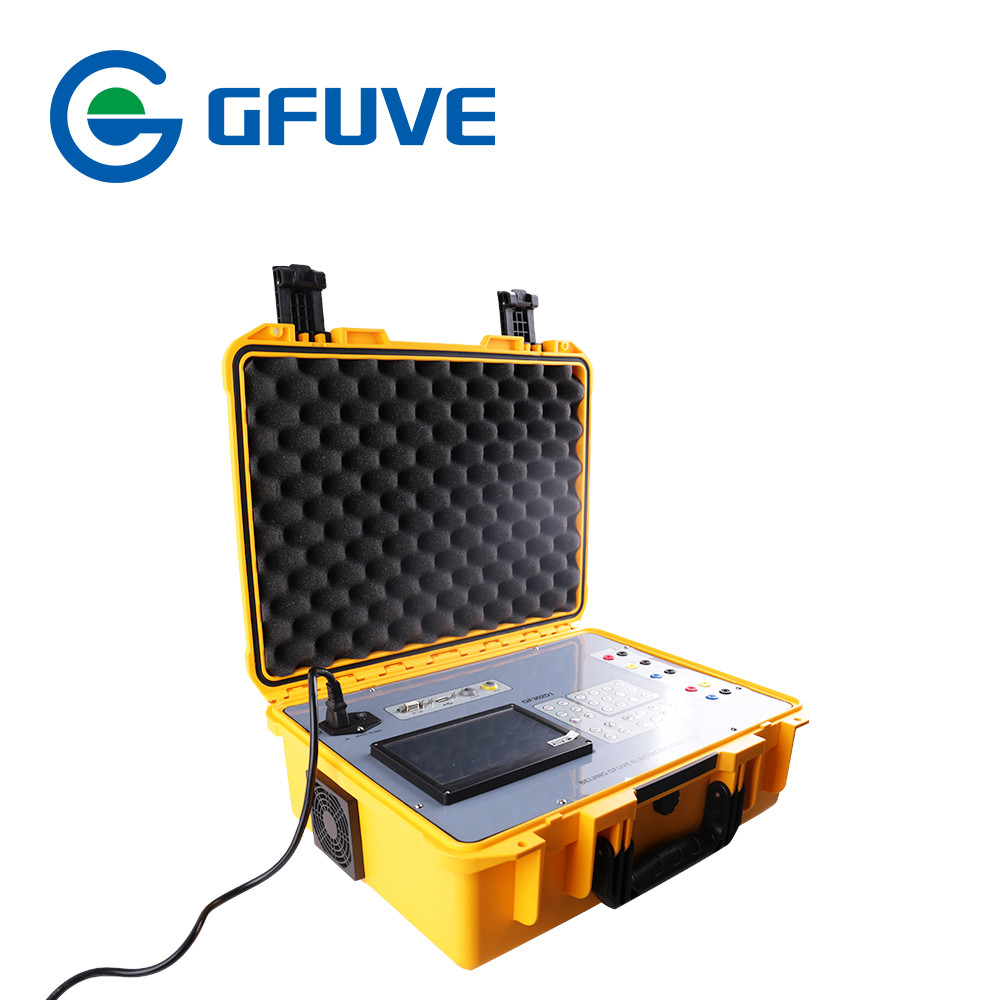

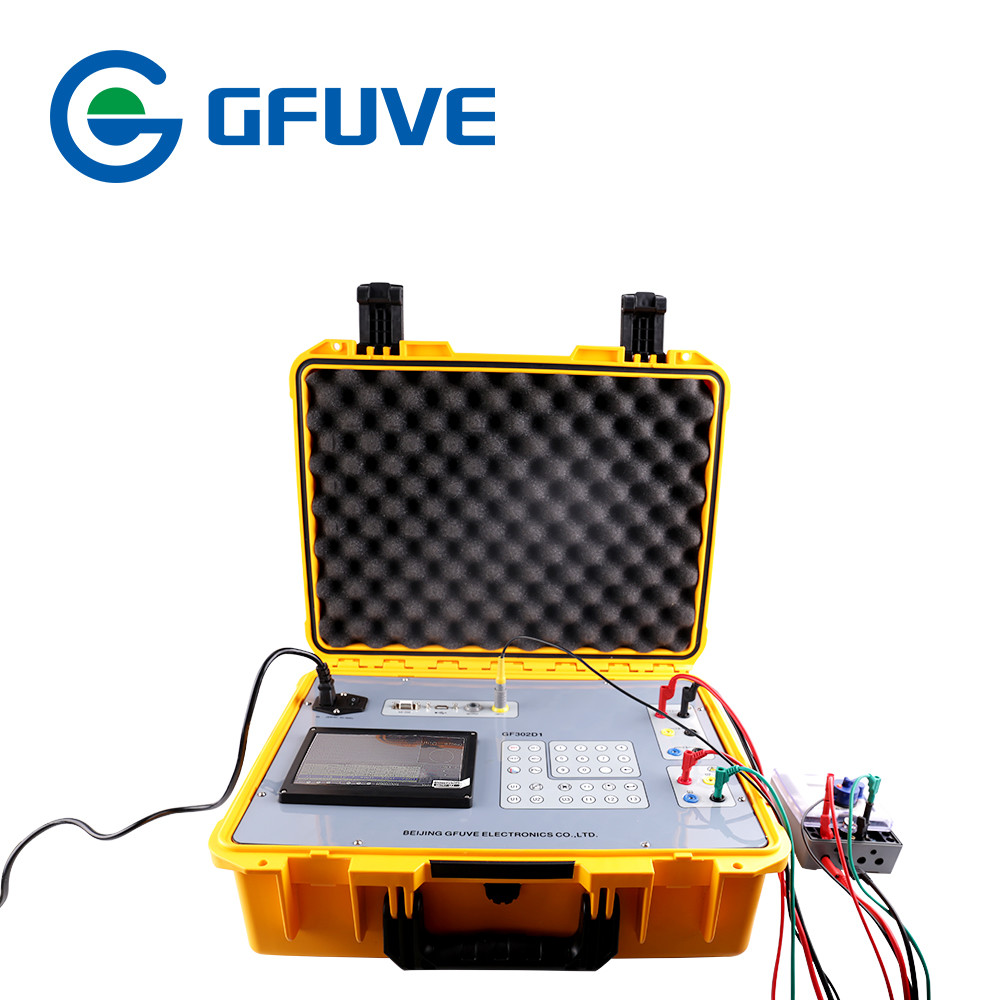

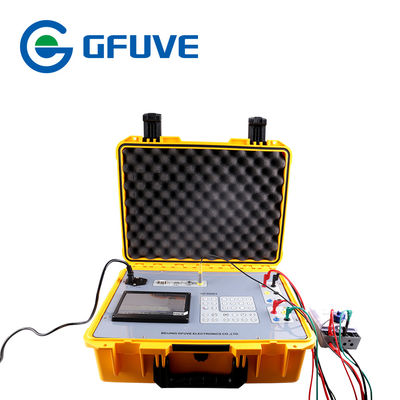

The GF302D1 three phase portable energy meter test system consists of an integrated three phase current and voltage source(up to 500V/120A or 500V/20A) and built-in three-phase electronic reference standard of accuracy class 0.05%. Characteristic features of the GF302D1 are its wide measuring range, high accuracy and high tolerance to unwanted external influences. The equipment offers high functionality combined with an excellent menu guided operation via built-in keyboards and colored 7” touch LCD-display.
features
1. Accuracy class 0.05
2. 0-20A/0-500V, 0-120A/0-500V
3. Start testing and creep testing
4. Reference standard and power source integrated
5. Test by automatic or manual
6. 7 inch TFT touch screen
7. Weight light 15Kg
8. Recorder 500 sets energy meter data
9. Overload, short circuit, open circuit protection
functions
1. Testing all kinds of energy meter in 1P2W, 1P3W, 3P3W, 3P4W
2. Measuring mechanical meter and electric meter
3. Power and energy measurements for active, reactive and apparent power
4. Measuring frequency, phase shift and power factor
5. Harmonic spectrum analysis for voltage and current up to the 51th order
6. Measuring the distortion factor
7. Vector diagram display and phase sequence indication on integrated colored screen
8. Energy dosing with built-in current source and voltage source
9. User friendly menu guided operation
10. Especially configured USB stick for storage of customer data
11. Easy verification and analysis of meter installations
12. Automatic operation without need of an external PC
Electrical parameters | |
---|---|
Accuracy class | 0.05%, 0.1% |
Power supply | One Phase AC 100-265V, frequency 50/60Hz. |
AC Voltage output | |
Range(U1,U2,U3) | 57.7V, 100V, 220V, 380V or 69.3V, 120V, 240V, 480V( optional) |
Adjustment range | (0-120)%RG(1) |
Adjust fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
Stability | 0.01%/120s |
Distortion | 0.3% (Non-capacitive load) |
Output load | each phase 30VA |
Measuring accuracy | 0.05%RG |
AC Current output | |
Range (I1, I2, I3 ) | 200mA, 1A, 5A, 20A, 100A(optional) |
Adjustment range | (0-120)%RG |
Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
Stability | <0.01%/120s |
Distortion | ≤0.3% (Non-capacitive load) |
Output load | 30VA |
Accuracy | 0.05%RG |
Power output | |
Active power output stability | <0.01%RG/120s |
Reactive power output stability | <0.02%RG/120s |
Active power measuring accuracy | 0.05%RG |
Reactive power measuring accuracy | 0.1%RG |
Phase Output | |
Output adjustment range | 0°-359.999° |
Output adjustment fineness | 10, 1, 0.1, 0.01 as optional. |
Resolution | 0.01° |
Accuracy | 0.03° |
Power Factor | |
Adjustment range | -1 ~ 0 ~ 1 |
Resolution | 10, 1, 0.1, 0.01 as optional. |
Measurement accuracy | 0. 0005 |
Frequency Output | |
Adjustment range | 40Hz-70Hz |
Output adjustment fineness | 5Hz, 1Hz, 0.1Hz, 0.01Hz as optional. |
Resolution | 0.001Hz |
Accuracy | 0.005Hz |
Voltage /Current/Harmonic Setting | |
Harmonic number | 2-51times |
Harmonic content | 0-40% |
Harmonic phase | 0-359.99 |
Harmonic setting accuracy | (10%±0.1%)RD(2) |
Power Energy Measurement Error | |
Active power energy | 0.05%RG |
Reactive power energy | 0.1%RG |
Power Pulse Output | |
Power pulse type | active pulse, reactive pulse |
Active power pulse output | 5V,10mA |
Power Pulse Input | |
Energy pulse type | support active and reactive pulse, the highest frequency power pulse input is 180K. |
Mechanical parameters | |
Dimensions (W×D×H) (mm) | 495x390x195 |
Weight (kg) | 15 |
Environmental conditions | |
Ambient temperature | -10°C to +50°C |
Relative humidity | 35%-85% |
(1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output. |
No. | Accuracy | Voltage range | Current range | Weight |
---|---|---|---|---|
302D112001 | 0.10% | 0-500V | 0-120A | 22KG |
302D1120005 | 0.05% | 0-500V | 0-120A | 22KG |
302D11201 | 0.10% | 0-500V | 0-12A | 15KG |
302D112005 | 0.05% | 0-500V | 0-12A | 15KG |
302D12401 | 0.10% | 0-500V | 0-24A | 16KG |
302D124005 | 0.05% | 0-500V | 0-24A | 16KG |
