GF112 Lightweight Electrical Test Equipment Calibration For Electric Power Departments

Basic Information

Place of Origin:	China
Brand Name:	GFUVE
Certification:	ISO
Model Number:	GF112

Minimum Order Quantity:	1 Pieces
Price:	Negotiable
Packaging Details:	Standard Export wooden Box
Delivery Time:	3 - 7 Days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	500 Pieces Per Month

Get Best Price Contact Now

Warming-up Time:	< 5 Min	Active Power Measurement Accuracy:	0.3%, 0.5%
Energy Measurement Accuracy:	0.3%, 0.5%	Power Supply:	AC 110-264V 50/60Hz
Power Consumption:	≤5VA	Product Name:	Portable Single Phase Electric Meter Tester
Highlight:	electrical test equipment calibration , energy meter calibration equipment

GF112 Portable Single Phase Electric Meter Tester

GF112 portable single phase standard meter is with human oriented design, hand-held and lightweight portable. It is suitable for electric power departments, measuring and quality examining departments and electric lab to field use.

Parameters

Electrical parameters
Active power measurement accuracy	0.3%, 0.5%
Energy measurement accuracy	0.3%, 0.5%
Power supply	AC 110-264V 50/60Hz
Warming-up time	< 5 min
Power consumption	≤5VA
Voltage measurement
Range	0-264V
Accuracy	0.3%
Current measurement
Range	10mA-40A or 10mA-120A
Accuracy	0.3%
Phase measurement
Range	0°-359.9°
Resolution	0.1°
Accuracy	0.5°
Frequency measurement
Range	45-65 Hz
Resolution	0.01Hz
Accuracy	0.05Hz
Power factor measurement
Range	0.4000 ~ +1.0000
Resolution	0.001
Accuracy	0.01
Electric energy pulse output
Pulse constant	900
Energy pulse input
Input range of pulse constant	1-25000
Pulse input level	5V
Mechanical parameters
Dimensions (W×D×H) (mm)	185×67×30
Weight (kg)	1 (mains) 2 (appendix and bag)
Environmental conditions
Working temperature	-10°C to 50°C
Working humidity	5%- 85%RHD
Storage temperature	-25°C to 70°C
Storage humidity	5% -95%RHD

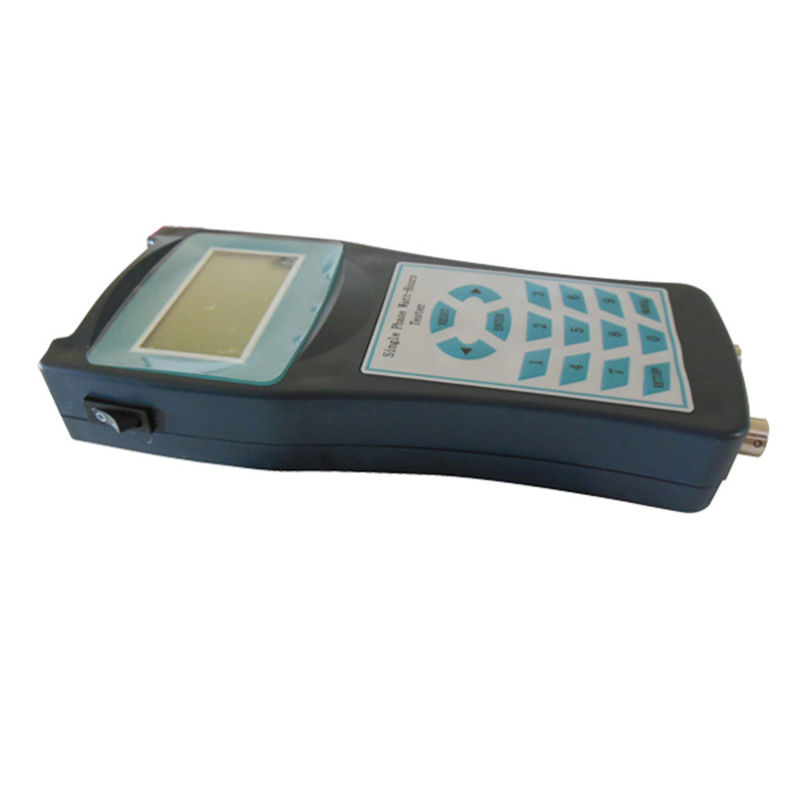

The Product Picture
