Flexible Rogowski Flexible Ct Clamps Lightweight Multi - Size Available

Basic Information

Place of Origin:	China
Brand Name:	GFUVE
Certification:	CE UL
Model Number:	FQ - RCT01 - 1

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Standard export wooden box
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	5000 pieces per month

Get Best Price Contact Now

Current Range:	10A~6000A	Frequency:	45Hz~600Hz
Current Probe:	Flexible Rogowski Type	Power Supply:	10-30VDC , 30mA Max .
Current Clamp:	Flexible Rogowski Type	Ambient Storage Temperature:	25~+75°C
Highlight:	inductive amp probe , inductive current probe

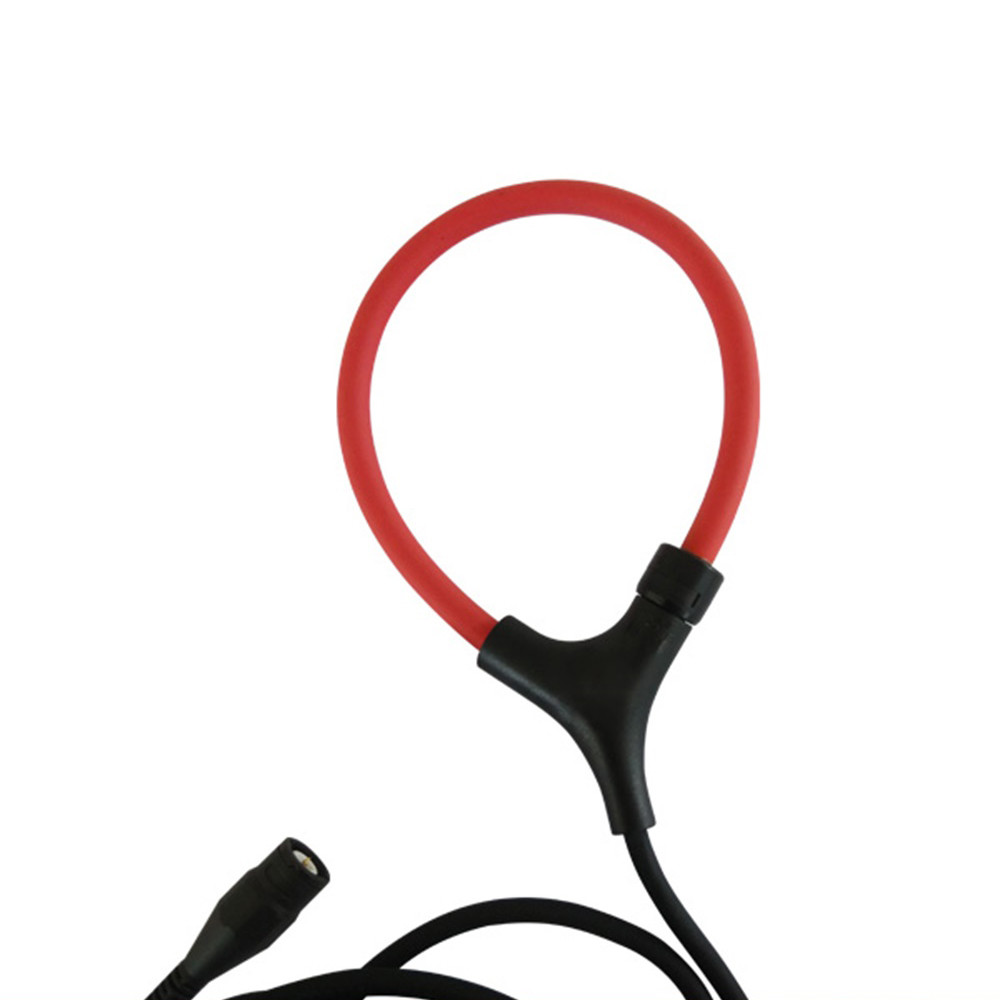

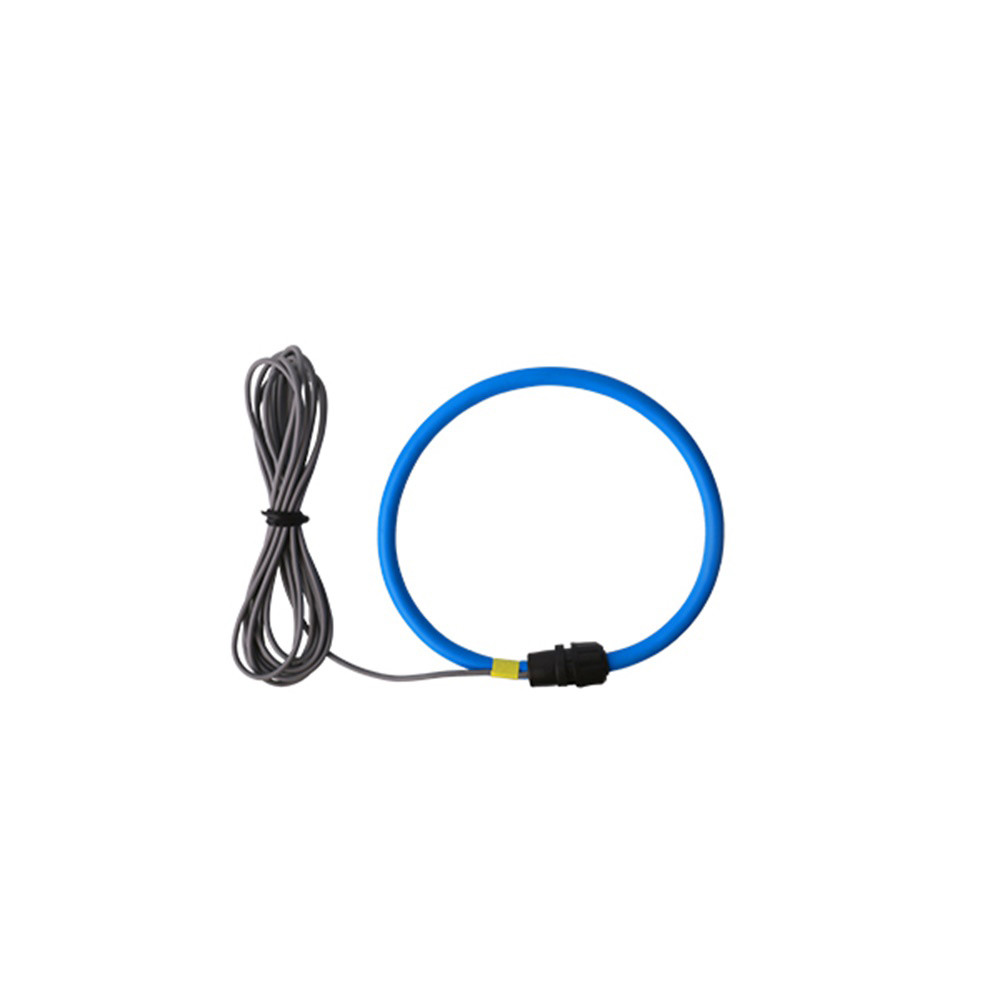

Flexible Rogowski type clamp on AC Inductive Current Clamp

The FQ-RCT01 Flexible Rogowski type clamp on AC Inductive Current Clamp are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables ..

FEATURES

Flexible and lightweights
Easy & quick installation in tight spaces
No danger from open-circuited secondary
No core saturation or damage if overloaded
Excellent linearity
Multi-size are available

GENERAL DATA

Ambient operating temperature: -20~+70°C
Ambient storage temperature: -25~+75°C
Standards safety:IEC 61010-1:2001, 600 V CAT III

PARAMETERS

Electrical parameters
Model		FQ-RCT01-55	FQ-RCT01-80	FQ-RCT01-105	FQ-RCTA01-55	FQ-RCTA01-80	FQ-RCTA01-105
Current Range		10A~10kA			10A~6000A
Frequency		25Hz~20kHz			45Hz~600Hz
Output voltage	Rated current	500A	1000A	2000A	250A, 500A, 800A, 1000A	1000A, 1500A, 2000A, 2500A	1000A, 2000A, 2500A, 3000A
	50Hz	50mV AC	100mV AC	200mV AC
	50Hz	50mV AC	100mV AC	200mV AC	333mV 1mV/A
Max output		/			3.0V AC max
Accuracy		< 1% @25°C (45-65Hz)			<1% @25°C (45-65Hz)
Phase error		< 60’ @25°C (45-65Hz)			<60’ @25°C (45-65Hz)
Output sensitivity		± 2% Max (No Calibration) ±0.5% @25°C (With Calibration)			1%
Linearity error		± 0.2% (10%-100%I1n)			±0.2%
Position sensitivity		± 2%			±2%
External influence		± 2% Max			±1.5% Max
Power supply		/			10-30VDC,30mA Max.

Flexible Rogowski Flexible Ct Clamps Lightweight Multi - Size Available 0
