| Place of Origin: | Beijing , China (Mainland) |
|---|---|
| Brand Name: | GFUVE |
| Certification: | CE |
| Model Number: | FU2040 |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Standard export carton |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 2000 Pieces per Month |
| Power Supply (AC/DC): | AC 85-265V/DC 85-330V | Measuring Range: | 30-600V, 0-6A, 45-60Hz |
|---|---|---|---|
| Connection Mode: | RS-485 Interface Port , 32 (128) Networking, ModBus-RTU Communication Protocol. | Mounting Panel: | 72x72 |
| Accuracy Class: | 0.5s | Temperature: | -25 To +50°C |
| High Light: | three phase power meter,multifunction power meter |
||
High Quality Single Phase Stop electrical Digital Solar Power Meter / Power and Harmonics
Analyzer

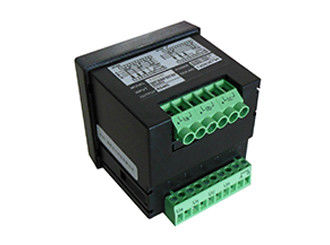

FU2040 is a LCD display single phase stop digital solar power meter, metering and displaying all the measured parameters in one circuit and computing four quadrants energy. This model can work in wide temperature range.
| Electrical parameters | |
|---|---|
| Power supply (AC/DC) | AC 85-265V / DC 85-330V Power consumption: <4VA |
| Measurement parameters | Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power (W); Reactive Power (Q); Apparent Power (S) |
| Computation | Forward / Reverse active / reactive power energy |
| Measuring range | 30-600V, 0-6A, 45-60Hz |
| Measuring accuracy | Frequency: 0.1% Electric energy: 0.5%, 1.0% Voltage : 0.2%±0.1V Current : 0.2%±0.001A Power : 0.5% ±0.4W Power Factor : 0.5% ±0.001 |
| Display | LCD display; 3 display; 4 operation keys |
| Communication | Support RS485 interface port, 32(128) networking, Modbus-RTU communication protocol. |
| Programmable | Measuring system: 3P4W/3P3W etc Transformation ratio : PT, CT Communication: Address: 1-247; Baud: 1200-19200; Parity bit: N/E/O Energy: reset |
| Connection mode | 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W |
| Mechanical parameters | |
| Dimensions (mm) | Mounting panel: 72x72 Thickness: 13 Depth: 60 |
| Mounting | Panel mounting Trepanning: 68x68mm |
| Environmental conditions | |
| Temperature | -25 to +50°C |
| Humidity | 20%-95%RH, without condensation |
