Beijing GFUVE Instrument Transformer Manufacturer Co.,Ltd.
an exclusive current transformer, split core current transformer, current clamp & voltage transformer manufacturer.
| Place of Origin: | BEIJING CHINA |
|---|---|
| Brand Name: | GFUVE |
| Certification: | CE , ISO9001 |
| Model Number: | GFLZZ0954-10CE |
| Minimum Order Quantity: | 3 PCS |
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton Box |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 PCs / Month |
| Name: | MV Current Transformer Instrument | Rated Primary Current: | 5-1250A |
|---|---|---|---|
| Class: | 0.2s , 0.5 | Standards: | 50Hz Or 60Hz |
| Rated Secondary Current: | 5A Or 1A | Rated Insulation Level: | 12/42/75KV |
| High Light: | electromagnetic potential transformer,power potential transformer |
||

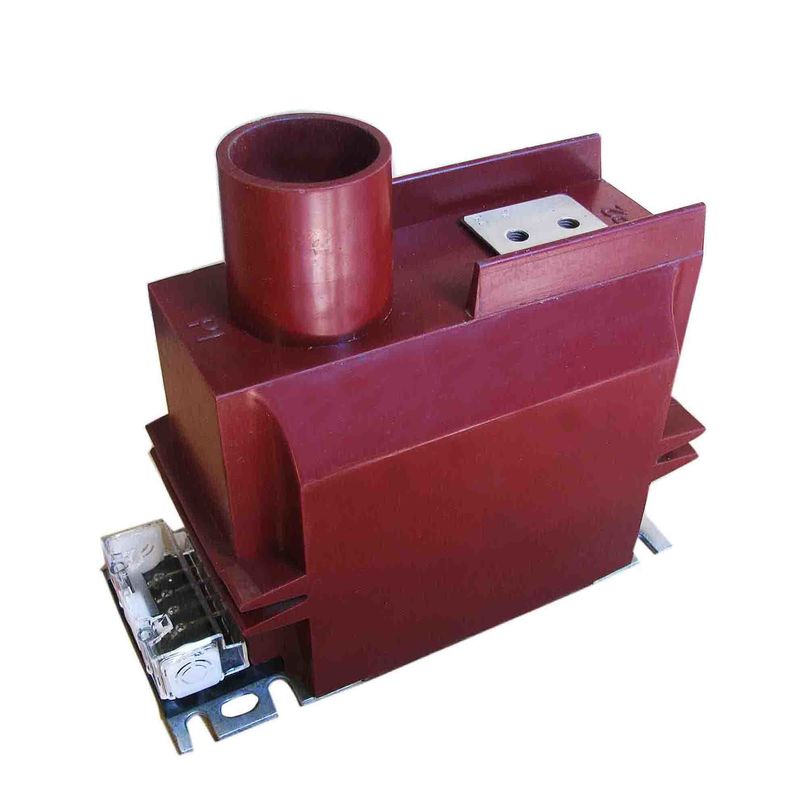

High Quality Dry Type Current Transformers Instrument
The dry type current transformers GFLZZ0954-10CE are cast in epoxy resin insulated with big surface creepage distance and are excellent in anti-pollution and humidity protection . With high grade accuracy, it is suitable for protection against large short-circuit current , secondary current output 1A or 5A . The performances of the products meet standards IEC60044-1, IEC61869-2 and ANSI/IEEE C57.13 .
| Ratied Primary Current(A) | Class Combination | Accuracy class and Rated output(VA) | Short-time thermal current (kA/S) |
Rated dynamic current (kA) |
|
| 0.5 | 10P10 | ||||
| 5-150 | 0.2(S)/10P10 0.5/10P10 |
10 | 15 | 150 I1n | 375 I1n |
| 200 | 36 | 90 | |||
| 300 | 45 | 100 | |||
| 400-600 | 63 | 150 | |||
| 800-1000 | 100 | 250 | |||
| 1250 | 140 | 350 | |||
