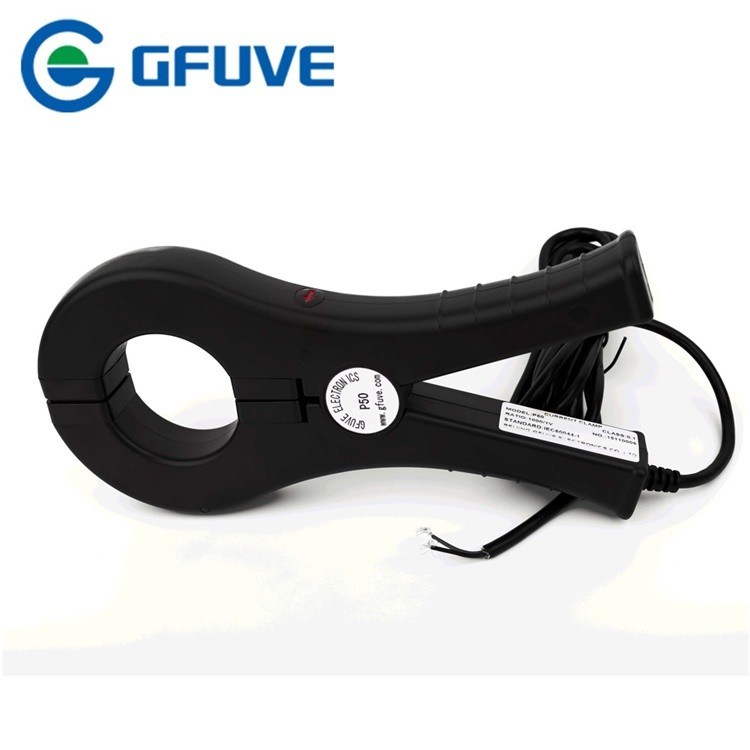

P50 BNC Connector 1000A Oscilloscope 2M HZ Clamp On Current Transformer With 1V ac signal output
In electrical and electronic engineering, a Oscilloscope AC Clamp On Current Transformer is an electrical device having jaws which open to allow clamping around an electrical conductor. This allows measurement of the current in a conductor without the need to make physical contact with it.
Oscilloscope AC Current Clamp probe P50 features 50 mm jaw size and high linearity. It is a ac current clamp which can measure 0-1000A cable. its accuracy 0.1%, with 1V ac signal ouput. Product comes with two years warranty.
Clamp-on Current Transformer Current Clamp is a high-precision AC current converter, and can meet a variety of measuring instruments, It can be used along with many kinds of instruments and devices, such as energy meter spot calibrator, multifunctional meter, oscilloscope, digital multimeter, dual clamp Ground resistance tester, dual clamp phase volt ammeter.
GFUVE Clamp-on Current Transformer are designed for fast and easy installation.Clamp-on Current Transformer uses Permalloy magnetic core or Silicon and amorphous core, with characteristics of small size, high precision, good stability and strong anti-interference ability.
Why Choose GFUVE Current Probes. The Most Comprehensive Line of Current Probes. GFUVE ® the world's largest supplier, offers current probe models capable of accurately measuring from the low µA to kA range. A wide variety of configurations and jaw sizes are available. Probe types include iron core, Hall Effect, Flux Gate, and Rogowski etc.
Applications
Electric energy meter calibrator (on site)
Double clamp type ground resistance tester
Double clamp type phase volt-ampere meter
Digital multi-meter
Multi-function energy meter
Power quality analyzer
Matched instruments
Calibration instrument on site
Oscilloscope
Phase angle
Features
Suitable for 1000A cable online measurement.Holding wire diameter: φ50mm
Dimension: 101mm×219mm×26mm
Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
Parameter
Electrical parameters | |
Ratio | 1000: 1 or 2000:1 (customized) |
Accuracy class | 0.1%, 0.2%, 0.5% |
Primary current | 0 - 1000A AC |
Secondary current | 0 - 5A AC (customized) |
Max. Cont. Input current | 1200A |
Over voltage category | CAT III 600V |
Output signal | 500mA,1A,5A AC at nominal input current |
Frequency range | 40Hz-2000Hz |
Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
Temperature range | -20°C to +55°C |
Output | 2.5 meter cable with D01 connector |
Max. voltage not insulated conductors | 600 V |
Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
Installation | Clamp type |
Output mode | Lead output (2.5m) |
Mechanical parameters | |
Dimensions (L x W x H) (mm) | 102.9 x 219.6 x 28 |
Weight (g) | 550 |
Holding wire diameter (mm) | φ50 |
Max. jaw opening (mm) | 50 |
Jaw color | Blue |
Material |
PC+ABS+Polycarbonate, UL94 V0 |
Photos
FAQ, following questions will help you to select the matched probe for your applications.
1. Please determine if you are measuring AC or DC?
GFUVE Q50A-2 is for AC measurement.
2. What is the maximum current you will measure?
Q50A-2 maximum current is 1200A
3. What size conductor will you clamp onto? This parameter determines the probe jaw size needed.
Q50A-2 can clamp conductor within diameter of 50mm
4. What type of probe output do you need or can you work with (mA, mV, A, AC, etc.)?
Q50A-2 can customize output with A, V.
5. What is the working voltage of the conductor to be measured?
GFUVE probes should be used below 600 volts
6. What type of termination do you need: jacks, leads or BNC?
Q50A-2 standard has 2.5meter leads. We can offer jacks or BNC… as options.
7. If you cannot find information you need or would like assistance, contact us today. We have designed many more probes than those shown in this catalog, and we manufacture in Beijing, China.
