| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GFUVE |
| Certification: | CE ISO |
| Model Number: | GF2011-1 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard AUL BOX |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 1000 Sets/Month |
| Name: | Ammeter Recorder | Display Mode: | 4 Bit LCD Display, With Backlight Function |
|---|---|---|---|
| Sampling Rate: | 2 Times/second | Measurement Scope: | 0.00mA-1200A (50/60Hz Automatic) |
| Resolution: | 0.01mA | Structure: | Anti-drip Type II |
| Insulation Rod Dimension: | φ50mm, 1m/piece (5m) | Clamp Dimension (mm): | 50mm |
| High Light: | recording ammeter,wireless current transducer |
||
10KV 35KV 69KV Mid Voltage Ammeter recorder for measurement of the current

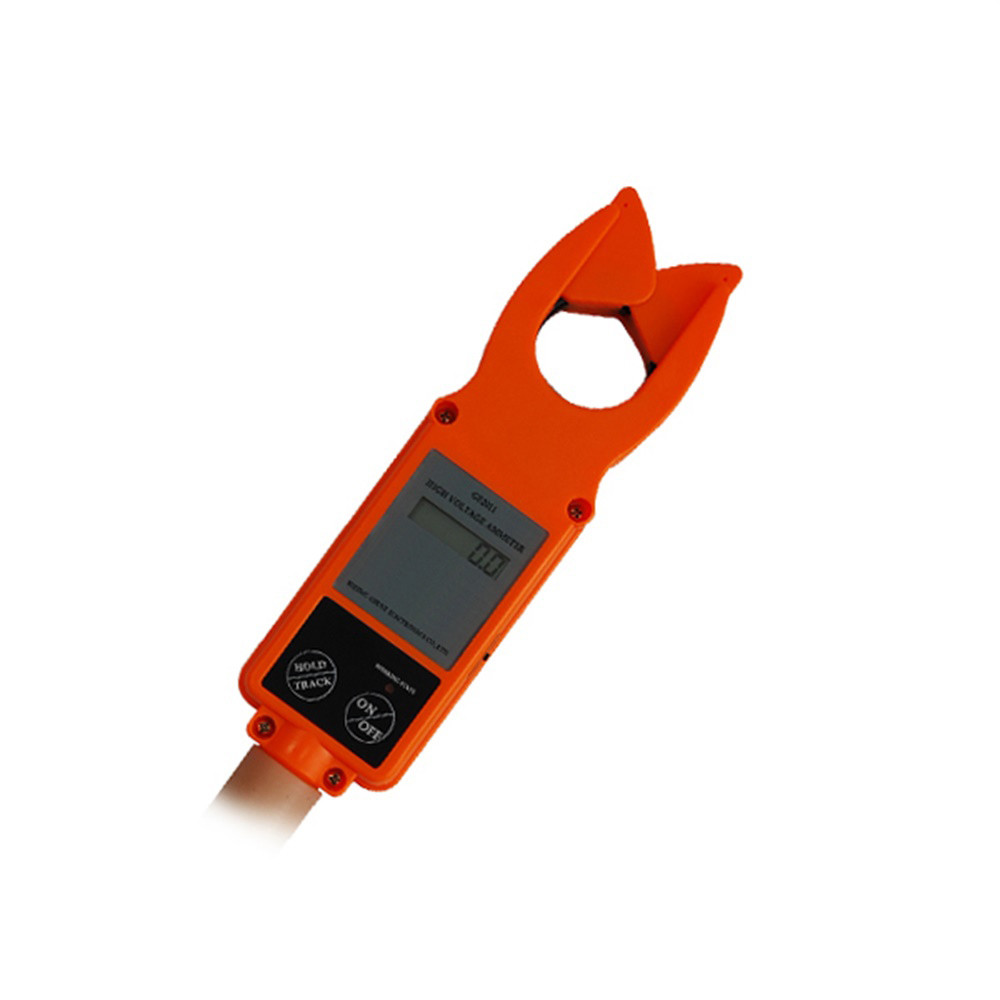

GF2011 Portable High Voltage Ammeter specially designed and manufactured for High voltage AC current measurement, low voltage AC current, current leakage measurement, online AC current measurement. It consists of special high voltage detector, wireless receiver and high voltage insulation rod.
Apply to power plant, substation, industrial and mining enterprise, inspection station, electrician maintenance department for current sensing and field working.
| Electrical parameters | |
|---|---|
| Power supply | Ammeter: DC6V Alkaline Dry Battery (1.5V AAA X 4), Receiver: DC7.5V Alkaline Dry Battery (1.5V AA X 5), working 10 hours |
| Test mode | Clamp CT, integral approach |
| Transmission mode | Wireless transmission, the maximum distance of straight line transmission is about 30m |
| Display mode | 4 bit LCD display, with backlight function |
| Sampling rate | 2 times/second |
| Measurement scope | 0.00mA-1200A (50/60Hz automatic) |
| Resolution | 0.01mA |
| Shift | 0.00mA-1200A automatic shift |
| Accuracy (23°C±5°C, below 70%RH) | 0.000mA-120.00A: ±1%±3dgt 120.00A-1200.0A: ±1%±5dgt |
| Line voltage | Below 69KV line test (with 5 insulation rods operation) |
| Data memory | 99 sets |
| Automatic shutdown | 15 minutes after boot |
| Battery voltage | <4.8V alarm active |
| Insulation strength | AC 100kV/rms (between the 5th insulation rod and high voltage Ammeter core) |
| Structure | Anti-drip type II |
| Safety provisions | IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT III (600V), IEC61326(EMC standard) |
| Mechanical parameters | |
| LCD dimensions (mm) | 47×28.5 |
| Meter dimension (LxWxH) (mm) | 87×262×37 |
| Meter weight | 2.5kg (including insulation rod and battery, tester 335g) |
| Clamp dimension (mm) | Ф50 |
| Insulation rod dimension | φ50mm, 1m/piece (5m) |
| Environmental conditions | |
| Working temperature | -25°C to 40°C |
| Working humidity | Below 80%Rh |
| Storage temperature | -10°C to 60°C |
| Storage humidity | Below 70%Rh |

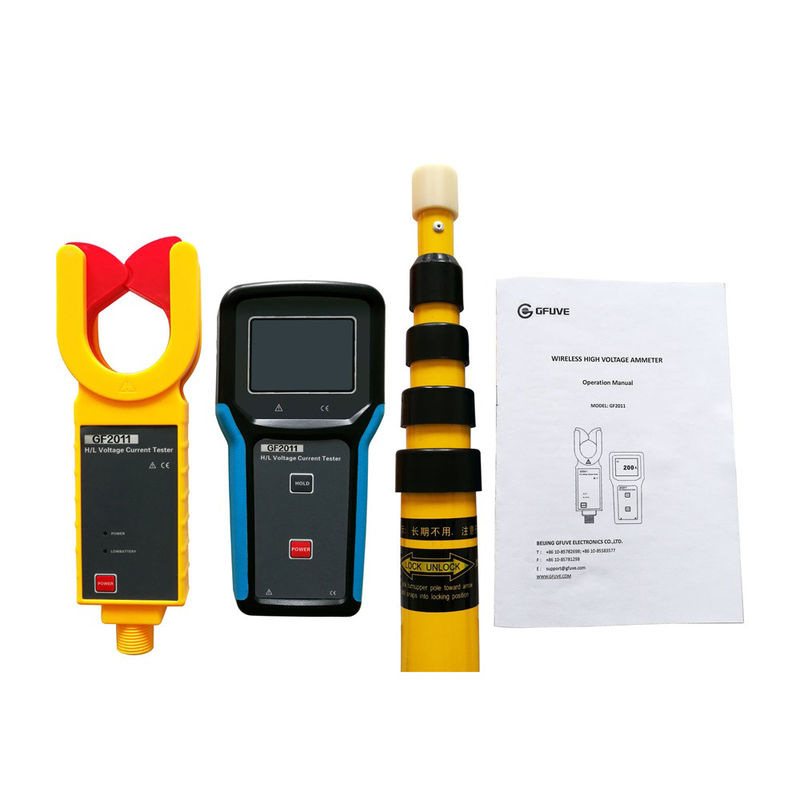

| Accessories | |
| Ammeter | 1 pc |
| Receiver | 1 pc |
| Ammeter box | 1 pc |
| Telescopic insulation rod (5m) | 1 pc |
| Battery | Rechargeable Alkaline Dry Battery(AA X 5+AAA X 4) |
| Model | Description |
| GF2011 | Wireless |
| GF2011B | Base Display |
