3 Phase Portable Harmonics Output Relay Test Equipment

Basic Information

Place of Origin:	BEIJING CHINA
Brand Name:	GFUVE
Certification:	CNAS, CE, ISO9001
Model Number:	TEST-630 6U6I

Minimum Order Quantity:	1SET
Packaging Details:	STANDARD EXPORT WOODEN BOX
Delivery Time:	5-8DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200SETS/MONTH

Get Best Price Contact Now

PRODUCT NAME:	3 Phase Portable Protection Relay Test Set Equipment	ACCURACY:	0.05%
Application:	RELAY TEST AND PROTECTION DEVICE TEST	FUNCTION1:	Differential Relay Test
FUNCTION2:	Distance Protection	U/I RANGE:	0-35A/0-300V AC/DC
LCD:	TFT COLOR LCD	WEIGHT:	16.6KG
High Light:	harmonics output relay test equipment , 0.05% accuracy relay test equipment , TFT LCD relay test equipment

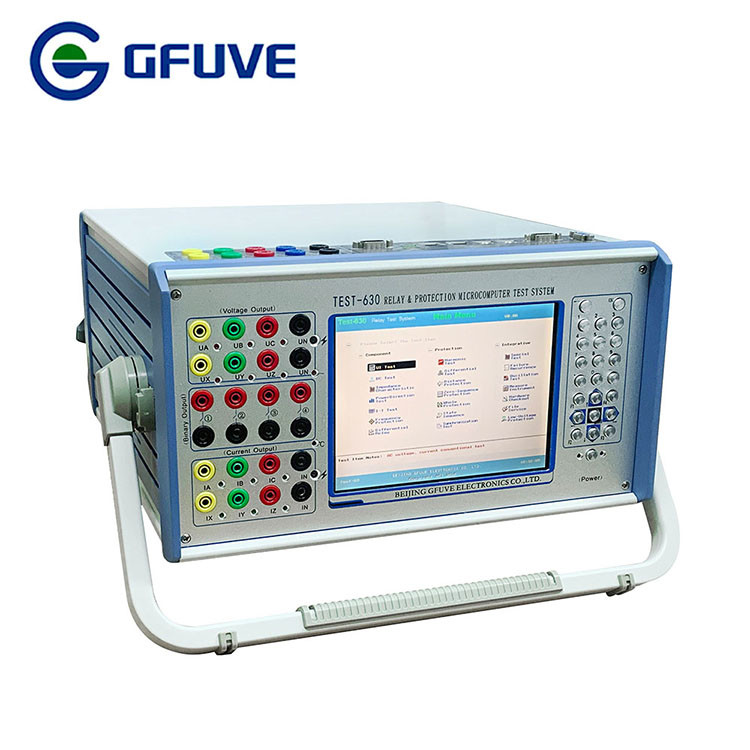

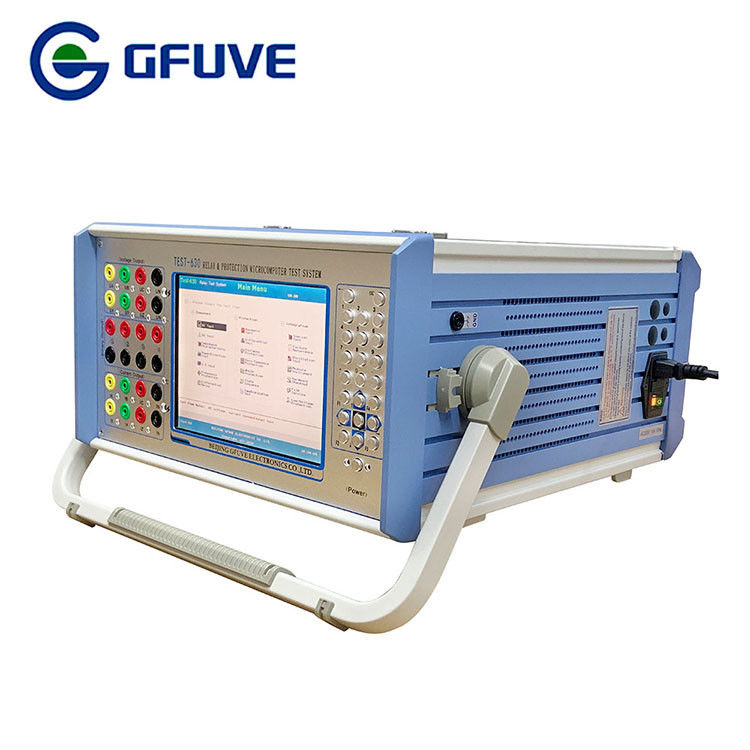

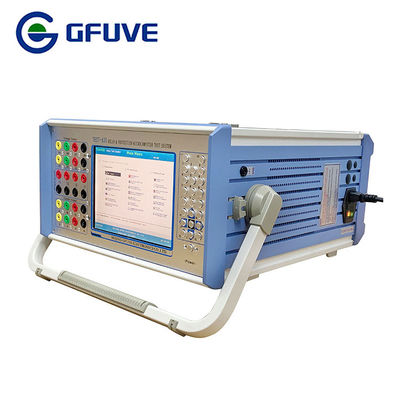

TEST-630 smart automatic 3 phase portable protection relay test set equipment with harmonics output

Universal testing system TEST-630 (6×35A, 6×300V) can test all types of protective relays, including modern IEC61850 based

relays. Other test works, such as transducer, energy meter, indication meter, etc., can also be done easily. It's the ideal test

device for all power utilities, power plants, relay manufactures, panel manufactures, research institutes, Universalities, testing

companies, etc.

TEST-630 is designed with fuse on the mains supply and electronic protection for overload on the current (open circuit) or voltage outputs(short circuit), with immediate isolation of the output and alarm indication. Also diagnostic message for the setting of wrong data, mistakes on the input etc. There's also electronic protection in case of counter-feed of voltage output, if any incorrectness happen, the alarm light shall flash. And Overheat LED indicator shall flash for Protection against over-temperature, on all outputs.

Differential

is suitable for use the 6 output current channels' relay tester, which is applied on transformer, generator and bus bar etc. differential protection equipment test. Because of adopting the 6 currents output, it realizes the two sides three phases test between relay tester and relay equipment.

Inverse time overcurrent

This module realizes the directional over-current test and non-directional over-current test. This module also include: testing positive sequence, negative sequence and zero sequence instantaneous time over-current,

over-heat protection inverse time over-current or the customized “Current/Time” operation characteristic.

TEST ITEM

U/I test
DC test
Impedance characteristics
Power direction test
I-T test
Differential relay
Harmonic test
Differential protection
Distance protection
Zero sequence protection
Setting group test
State sequence
Synchronization test
Special test
Oscillation test
Metering instrument
Hardware checkout
Low Voltage protection
Fault Recurrence

3 Phase Portable Harmonics Output Relay Test Equipment 0

PARAMETERS

Electrical parameters
Power voltage	AC220V±10% or AC110V±10%, 50/60Hz±10%
Time measurement	0.1ms-999999.999s
AC current output
Phase current output (effective value)	3 x 0-30A
Maximum power output	260VA/phase
Maximum parallel current output (effective value)	0-90A
Long-term allowable working value of phase current (effective value)	>10A
Allowable working time of maximum current	>11s
Accuracy class	<±0.2%
AC voltage output
Phase voltage output (effective value)	5 x 0-130V
Line voltage output (effective value)	0-260V
Maximum power output	70VA/phase
Accuracy class	<±0.2%
DC current output
Output range	-10 to 10A or 3 x 0 to ±10A
Maximum power output	200VA
Accuracy class	<±0.2%
DC voltage output
Output range	0-300V or 5 x 0 to ±130V
Maximum output power	130VA
Accuracy class	<±0.2%
Binary input
Idle contact	1-20mA, 24V (DC)
Electric potential contact	250V/0.5A (DC)
Binary output
Idle contact	250V/0.5A (DC)
Rated output
Frequency error	<±0.01Hz
Phase error	<±0.2°
Waveform distortion	<±0.3% (fundamental wave)
Time error	<40µs
Output frequency	0-1050Hz
Superposed harmonic wave	0-21times


3 Phase Portable Harmonics Output Relay Test Equipment 1
