Beijing GFUVE Instrument Transformer Manufacturer Co.,Ltd.
an exclusive current transformer, split core current transformer, current clamp & voltage transformer manufacturer.
| Place of Origin: | BEIJING CHINA |
|---|---|
| Brand Name: | GFUVE |
| Certification: | CE, ISO9001 |
| Model Number: | GF2018-2 |
| Minimum Order Quantity: | 1SET |
| Price: | Negotitable |
| Packaging Details: | Standard Export Box |
| Delivery Time: | 3days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000SET/MONTH |
| Name: | 10KV 35KV 69KV Ammeter Recorder | Application: | Monitor Current Changes |
|---|---|---|---|
| Color: | Gray And White | Communication: | RF433 /868/869/ |
| Measurement Rnage: | 0 To 400A; 0 To 800A; 0 To 1500A; 0 To 3500A; | Accuracy Class: | ±1% Of Reading Plus 2 Counts |
| Recording Interval: | 1S-3600S | Jaw: | 33mm |
| Installation: | Easy Clamp With Electricity | Weight: | 325g |
| High Light: | recording ammeter,wireless current transducer |
||

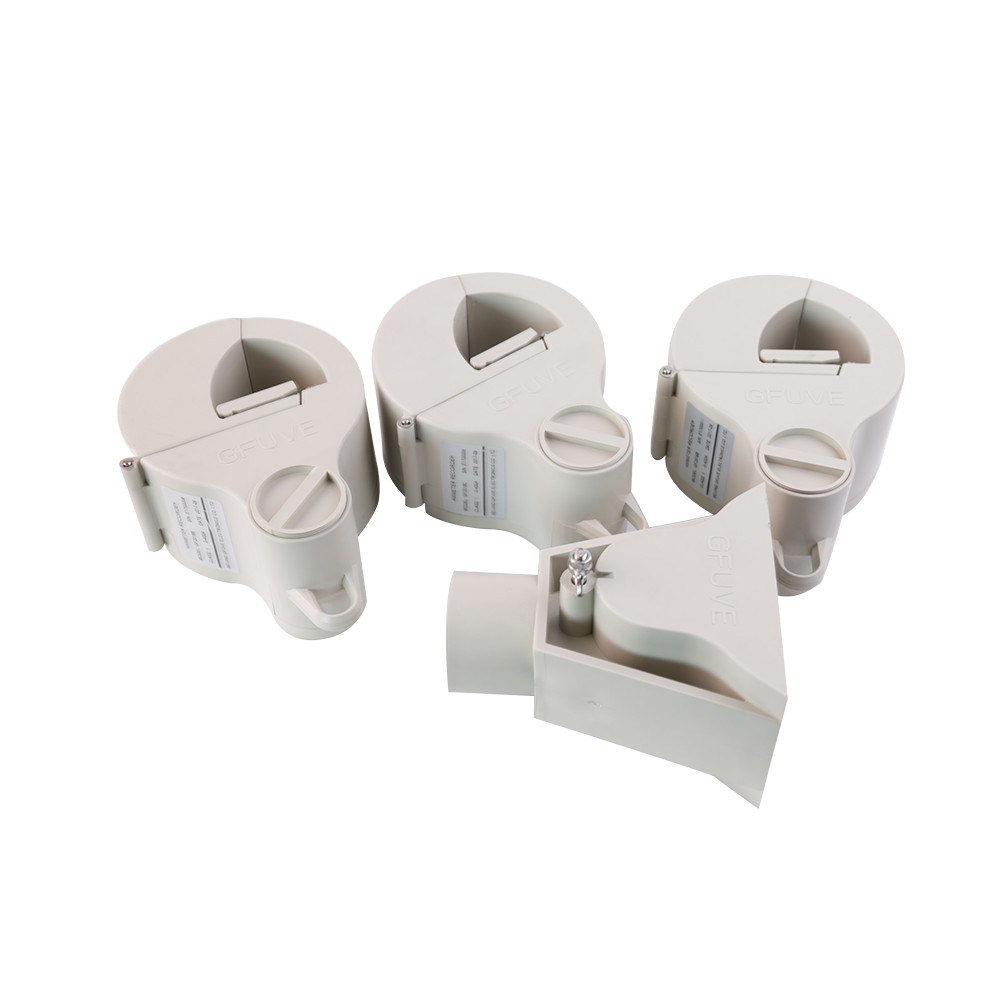

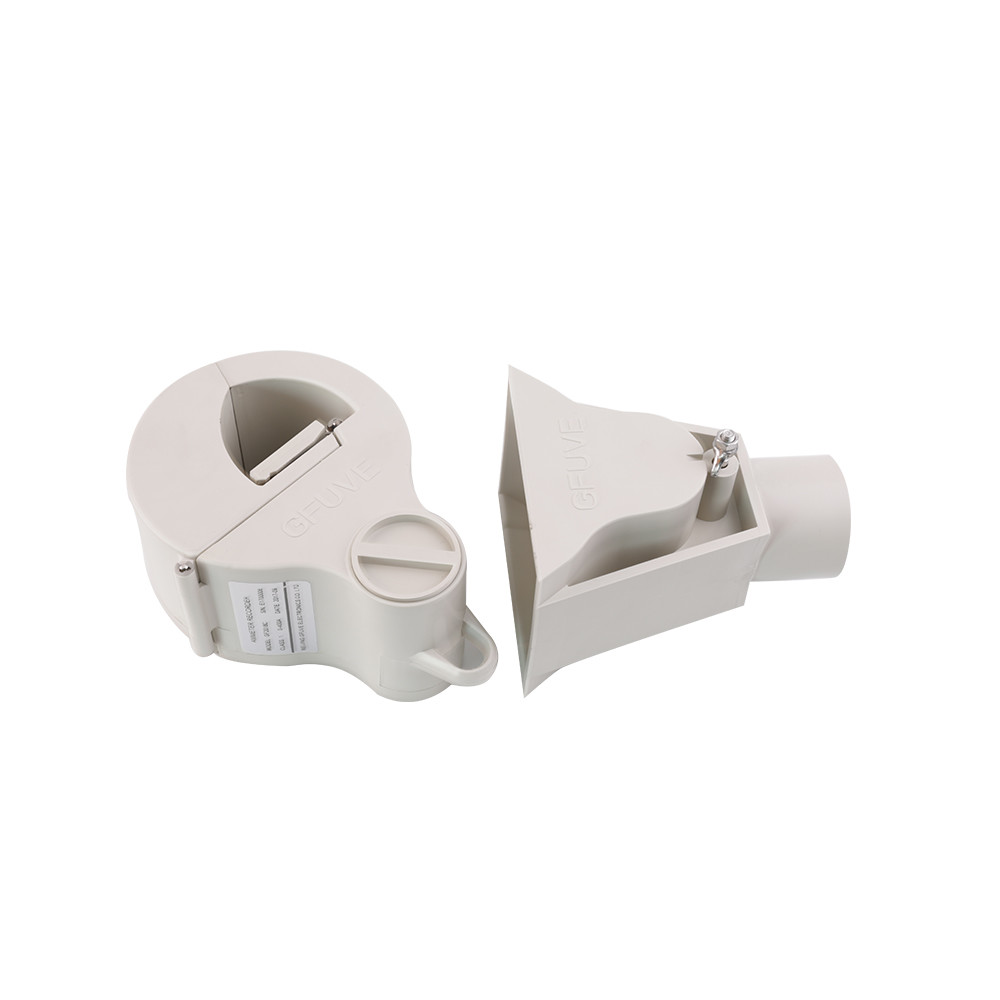

10KV 35Kv 69KV Wireless 69KV Ammeter Recorder for current monitoring
GF2018 Wireless High Voltage Clamp Ammeter Recorder is the newest version of the wireless primary current sensor. Rational design and adopts 433M transmit technology for data transfer. It makes the current data recording more stable and accuracy. The primary High Voltage Clamp Ammeter Recorder using the PC and ABS material, new waterproof technology, it can keep working on line in extreme weather. measure current from 0 to 3500A max. Class 1. Easy install and unistall.
The Primary clamp ammeter recorder uses the same sensor technology as the original Rogowski coil. The True RMS inductive sensor does not use magnetic materials. The opening of the sensor is electronically closed and external currents are electronically rejected.
The accuracy, external current reject, and range of currents measured by the patented amp sensor substantially exceed the performance of the best clamp-on sensors. The key feature of the unit is the ability to leave it deployed on the line to record readings every 15 minutes for 90+ days. It easily attaches to the line with a standard insulating bar. Once on the line, it immediately begins to collect and record the primary current on the line.
The Primary clamp ammeter recorder is equipped with a 433M wireless port for communicating the recorded data into the user’s PC. The data is downloaded through GF2018S PC-Link Software, which allows the user to download, view and query the data stored on the Primary current recorder.
The housing of the Primary sensor is made of ABS+PC and is built to operate safely, even in severe utility environments. It is resistant to shock, waterproof and resistant to flame. It also operates within a wide temperature range. The Primary current recorder has a screw insulation bar of installation, which allows it to hang on the line securely in all weather conditions.The Wireless sensor is designed considering about the waterproof. Can be working under extrem raning condition.
PC-Link Software is a user-friendly PC software interface that allows the user to download, view, graph and export data from the Primary current recorder into Microsoft Excel. The data directly transfers from the Primary current recorder into Excel through an 433M Port.
| Basic parameters | |
|---|---|
| Recording ammeter kit | 3 wireless clamp ammeter recorder (GF2018A, GF2018B, GF2018C) 433 HHT(handheld terminal) or 433M wireless data reader(GF2018R) PC-LinkSoftware software(GF2018S) Carrying case |
| Data recording interval | 1min, 5min, 10min,15min, 30min; Time can be set from 1 second to 60 minutes |
| Communication distance(wireless) | Max 100m |
| Communication | 433M, 868M or 915M (option) |
| Installation | Installation with electricity; Disassemble with electricity |
| Battery | 3.6 volt lithium battery,9000mAh; Battery can be replaced |
| Software requirements | PC-Linksoftware & microsoft Excel |
| Processor | 100 MHz or higher (200 MHz or higher recommended) |
| RAM | 32 MB, 64M recommended |
| Drive space | 15 MB to load software, 10 MB of operating Space |
| Use of position | Outdoor or indoor |
| Electrical parameters | |
| Range of operation | |
| Voltage | 69kV,35kV,20KV, 10kV, 6kV, 0.38kV |
| Current | 0 to 400A; 0 to 800A; 0 to 1500A; 0 to 3500A; |
| Sensor opening | Up to 3.3 cm |
| Resolution | |
| Amps 1 to 99.9A | 0.1A |
| 100 to 300A | 1A |
| Amps accuracy | ±1% of reading plus 2 counts |
| Frequency | 60Hz (57-63 Hz) or 50Hz (47-53 Hz) models available |
| Mechanical parameters | |
| Weight (kg) | 0.48 |
| Carrying case(kg) | 6.5 |
| Environmental conditions | |
| Operating temperature | -40°C to 60°C |
