0.5% Accuracy Inductive Current Clamp as China Manufacturer with 2.5 M Cable
AC Inductive Current Clamp P50-4 offered by GFUVE can be used to measure alternating current (AC) for accurate measurements. It can be used to measure AC current up to 1000A, when used with DMMs, recorders or data loggers. The probe allows current measurements on conductors that are hard to reach.
Features
Measurement range of 1mA to 1200A AC
Large jaw opening accommodates conductors up to two 500kcmil
Improved ergonomic design and easy operation
High content nickel metal core
Conforms to EN 61010, 600V CAT III
Low phase shift for power measurement
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
UL, CE mark
Applications
Power quality measuring
Large industrial loads
Measuring around cable bundles
Power load monitoring
Waveform analysis
Energy meter calibrator
Parameter
| Electrical parameters | |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2%, 0.5% |
| Primary current | 0 - 1000A AC |
| Secondary output | 1mV/A AC, 5mV/A or (customized) |
| Max. Cont. Input current | 1200A |
| Over voltage category | CAT III 600V |
| Output signal | 333mV, 500mV,1V,2V,5V AC at nominal input current |
| Accuracy (1000A Range) | |
| 0-10A | ≤0.5% |
| 10-100 | ≤0.2% |
| 10-1200A | ≤0.1% |
| Phase Shift(1000A Range) | |
| 0-10A | ≤0.5° |
| 10-100 | ≤0.2° |
| 100-1200A | ≤0.1° |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 102.9 x 219.6 x 28 |
| Weight (g) | 550 |
| Holding wire diameter (mm) | φ50 |
| Max. jaw opening (mm) | 50 |
| Color | Gray or blue |
| Material | PC+ABS+Polycarbonate, UL94 V0 |

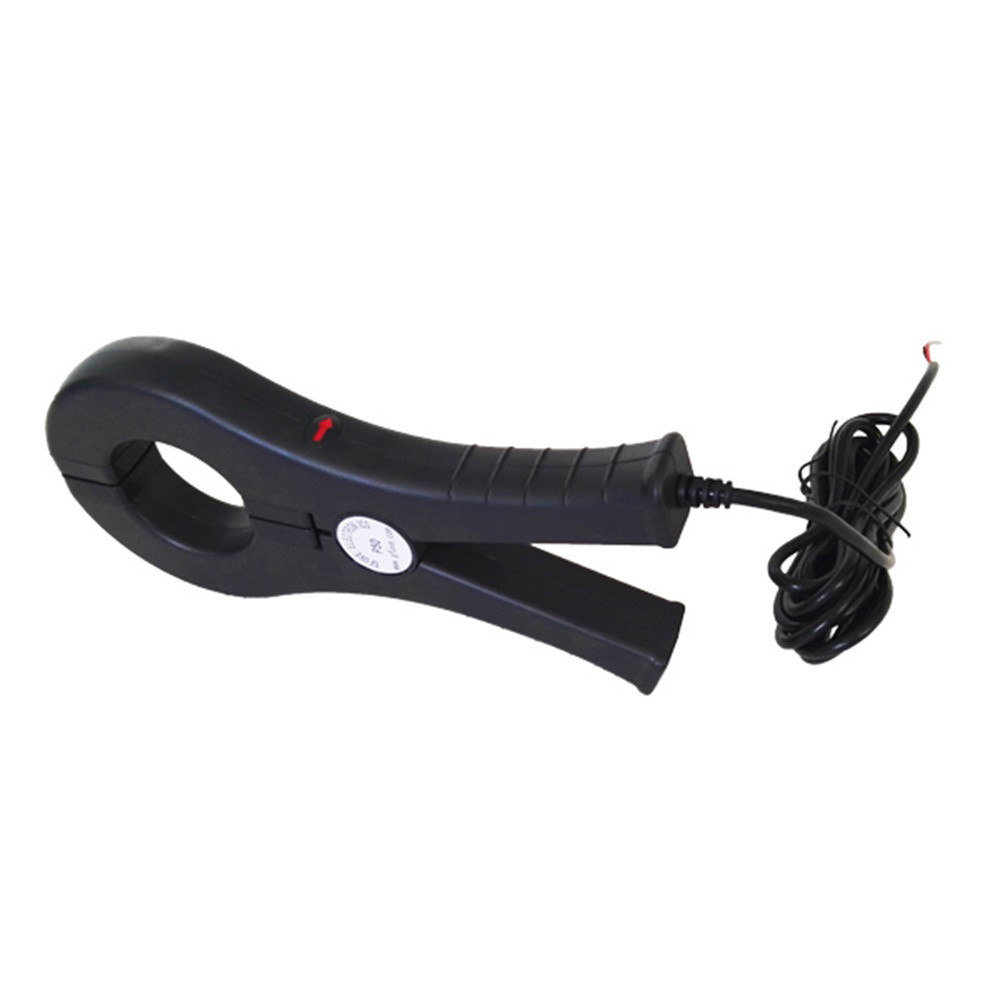

Photos
FAQ, following questions will help you to select the matched probe for your applications.
1. Please determine if you are measuring AC or DC?
GFUVE P50-4 is for AC measuring. If DC, we have hall effect models to suggest.
2. What is the maximum current you will measure?
P50-4 1200A max
3. What size conductor will you clamp onto? This parameter determines the probe jaw size needed.
P50-4 can clamp conductor with φ50mm
4. What type of probe output do you need or can you work with (mA, mV, A, AC, etc.)?
P50-4 can customize output with mA, mV. A, V.
5. What is the working voltage of the conductor to be measured?
GFUVE probes should be used below 600 volts
6. What type of termination do you need: jacks, leads or BNC?
P50-4 standard has 2.5meter leads. We can offer jacks or BNC… as options.
7. If you cannot find information you need or would like assistance, contact us today. We have designed many more probes than those shown in this catalog, and we manufacture in Beijing, China.
