Place of Origin: | China |
---|---|
Brand Name: | GFUVE |
Certification: | IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
Model Number: | LZCK-55 |
Minimum Order Quantity: | 3 |
Packaging Details: | Standard Wooden Case |
Delivery Time: | 1-2Weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 3000 |
Accuracy Class: | 0.5S, 0.5%, 1%, 3% | Range Of Primary Rated Current: | 100-1000A |
---|---|---|---|
Range Of Rated Load: | ≤10VA | Rated Frequency: | 50/60Hz |
Secondary Winding Power Frequency Withstand Voltage: | 3kV, 1min | Safety Factor Rating: | (FS) <10 |
Output SignalG: | 1A, 5A, 333mV, 1V Or 5V(customized) | ||
High Light: | donut type current transformer,ring core current transformer |

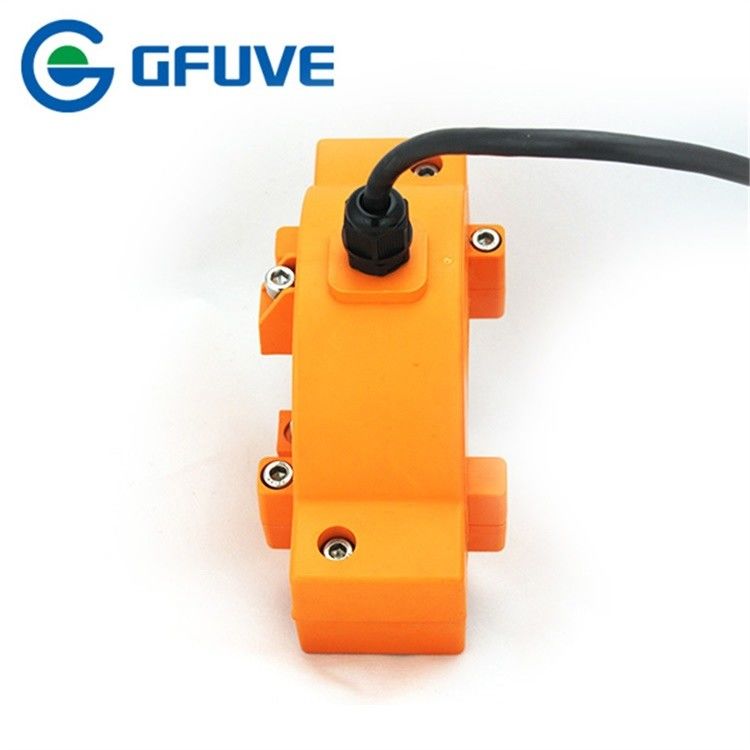

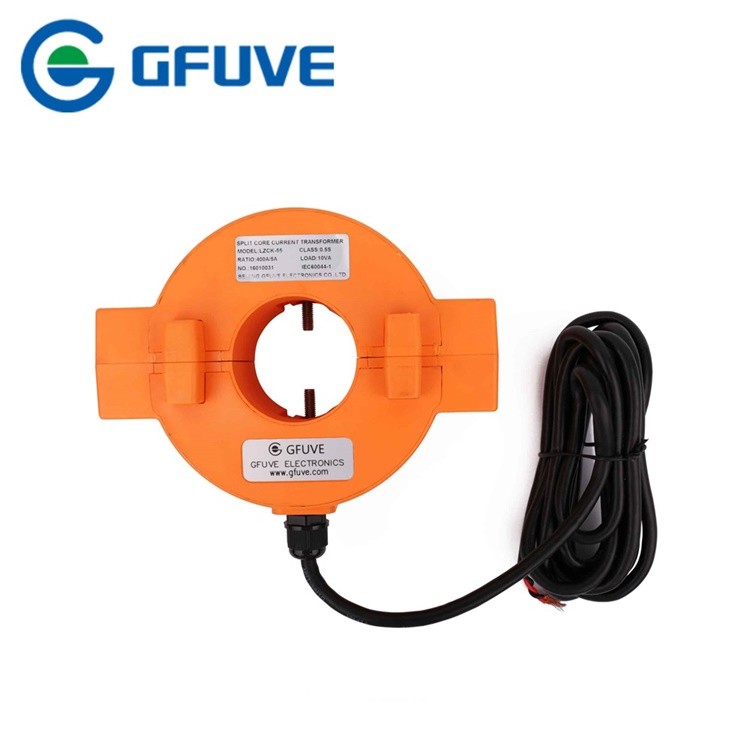

Clamp Outdoor Waterproof Split Core Current Transformer LZCK-55
Technical parameters | |
---|---|
Standards | IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
Accuracy Class | 0.5S, 0.5%, 1%, 3% |
Range of primary rated current | 100-1000A |
Range of Rated load | ≤10VA |
Rated frequency | 50/60Hz |
Rated secondary current | 5A or 1A |
Rated short-time thermal current | 40kA, 1S |
Rated continuous thermal current | 150%I1n |
Secondary winding power frequency withstand voltage | 3kV, 1min |
Safety Factor Rating | (FS) <10 |
Output signal | 1A, 5A, 333mV, 1V or 5V(customized) |
Cable length | 2.5m, 5m, 10m(customized) |
Flame retardant ABS plastic shell inside, jaw waterproof apron. | |
Mechanical parameters | |
Aperture (mm) | Φ55 |
Dimensions (W×D×H) (mm) | 180×138×52 |
Weight (kg) | 2 |
Working conditions | |
Operating temperature | -35°C to +65°C, not exceeding +40°C |
Storage temperature | -40°C to +70°C |
Ingress Protection | IP65 |
Environment | outdoors or indoors |
The Height of above sea level | 0- 3000m |
Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
