4mm Banana Connector 1000A/5A Split Core Current Transformer With 110mm & 50m Diameter

China 4mm Banana Connector 1000A/5A Split Core Current Transformer With 110mm & 50m Diameter supplier
4mm Banana Connector 1000A/5A Split Core Current Transformer With 110mm & 50m Diameter supplier 4mm Banana Connector 1000A/5A Split Core Current Transformer With 110mm & 50m Diameter supplier 4mm Banana Connector 1000A/5A Split Core Current Transformer With 110mm & 50m Diameter supplier 4mm Banana Connector 1000A/5A Split Core Current Transformer With 110mm & 50m Diameter supplier

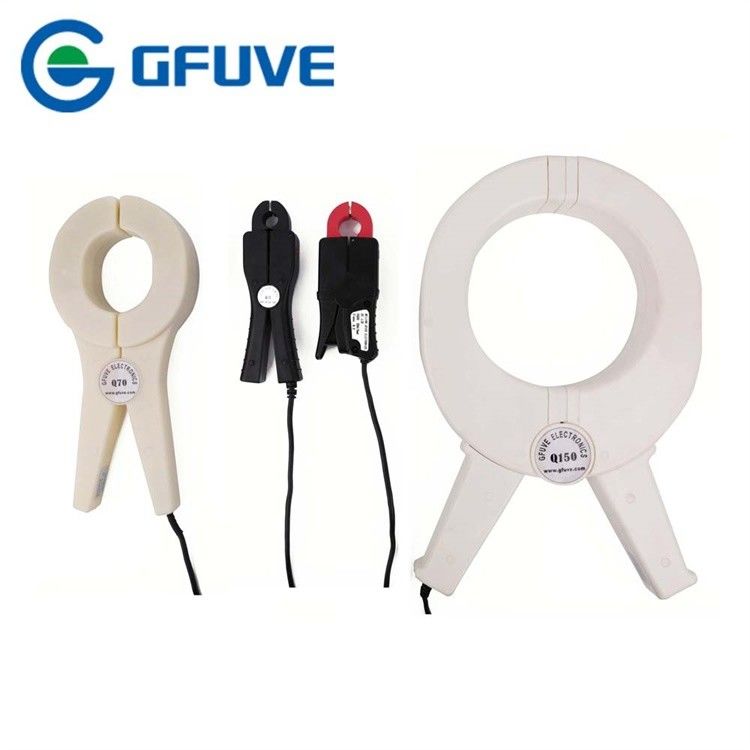

Large Image :  4mm Banana Connector 1000A/5A Split Core Current Transformer With 110mm & 50m Diameter

Product Details:

Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CE, UL, ISO9001, KEMA
Model Number: P50, Q110, Q125, Q8A, Q20, XQ13, XQ20

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: 250-350USD/PC
Packaging Details: Standard export box
Delivery Time: 3-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: Clamp On Current Transformer Color: Grey Or Blue
Material: Permalloy Core Application: Instruments Current Measurement
Ratio: 1000:1, 2000:1, 200:1 Accuracy: 0.1%, 0.2%, 0.5%
Usage: PQA , Oscilloscopes, Power Meter Phase Shift: Less Than 10 Min
Feture: High Precision & Low Phase Shift Jaw: 50mm, 110mm, 20mm, 8mm

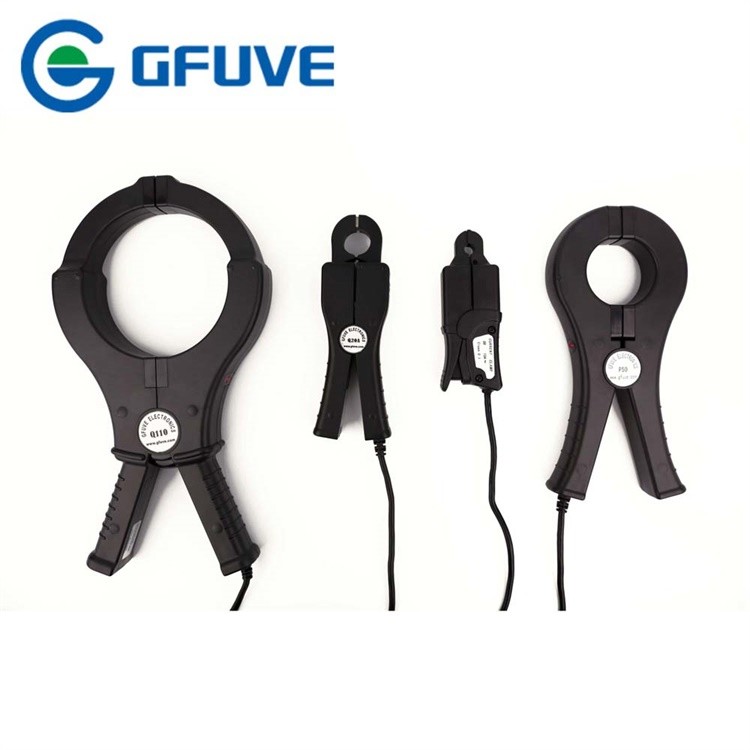

Q110 4mm Banana connector 1000A/5A Split Core AC Clamp on Current Transformer with 110mm & 50m diameter





Theory



In electrical and electronic engineering, a clamp on current transformer is an electrical device with jaws which open to allow clamping around an electrical conductor. This allows measurement of the current in a conductor without the need to make physical contact with it, or to disconnect it for insertion through the probe. Clamp on current transformer are typically used to read the magnitude of alternating current (AC) and, with additional instrumentation, the phase and waveform can also be measured. Some clamps meters can measure currents of 1000 A and more.







Applications


The round jaw design on the Q110 AC clamp on current transformer along with the high content nickel metal core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important. Measurement range is 1mA to 3000A.

This industrial-style clamp on current transformer has a BNC connector and can be used with a shrouded banana plug adapter so it can be used on digital multimeters, TekMeter, and oscilloscopes. The P50 can measure AC currents from 1 mA to 3000 A peak over a frequency range of 5 Hz to 30 MHz. It provides a 1 mV, 10 mV, or 100 mV output for each Amp measured.
The Q110 clamp on current transformer is a general purpose 1000A AC current clamp designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The Q110 has an integral 2.5m lead terminated. The rounded jaw design on this current probe makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.

DMMs and oscilloscopes

Power quality measuring

Large industrial loads

Measuring around cable bundles

Power load monitoring

Waveform analysis

Energy meter calibrator

Power monitor

Phase Angle meter

Resistance tester






Features


Measurement range of 1mA to 1200A or  3000A AC

Large jaw opening accommodates conductors up to two 500kcmil

Improved ergonomic design and easy operation

High content nickel metal core

Conforms to EN 61010, 600V CAT III

Low phase shift for power measurement

High bandwidth 30MHz

Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

UL, CE mark

4mm Banana Connector 1000A/5A Split Core Current Transformer With 110mm & 50m Diameter



PARAMETERS



Electrical parameters
Ratio 1000: 1 or 2000:1 (customized)
Accuracy class 0.1%, 0.2%, 0.5%
Primary current 0 - 1000A AC
Secondary current 1mV/A AC, 5mV/A or (customized)
Max. Cont. Input current 1200A
Over voltage category CAT III 600V
Output signal (AC current) 333mV, 500mV,1V,2V,5V AC at nominal input current
AC Accuracy(1000A Range)
0-10A ≤0.5%
10-100 ≤0.2%
10-1200A ≤0.1%
AC Phase Shift(1000A Range)
0-10A ≤0.5°
10-100 ≤0.2°
10-1200A ≤0.1°
Frequency range 40Hz-2000Hz
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 600 V
Standard EN 61010-1, EN 61010-2-032, IEC60044-1
Installation Clamp type
Output mode Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H)(mm) 102.9 x 219.6 x 28
Weight (g) 550
Holding wire diameter (mm) φ50
Max. jaw opening (mm) 50
Color Gray or blue
Material PC+ABS+Polycarbonate, UL94 V0



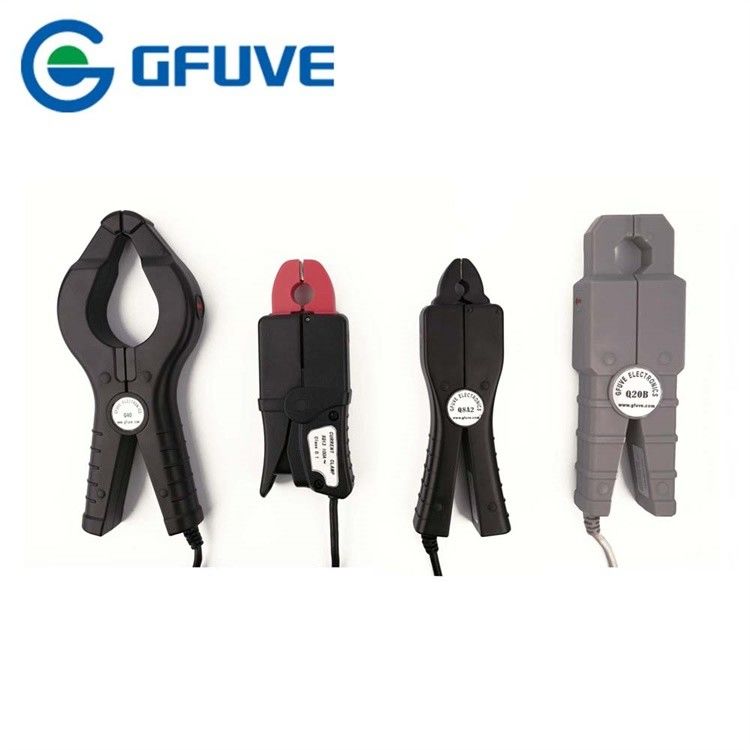

4mm Banana Connector 1000A/5A Split Core Current Transformer With 110mm & 50m Diameter

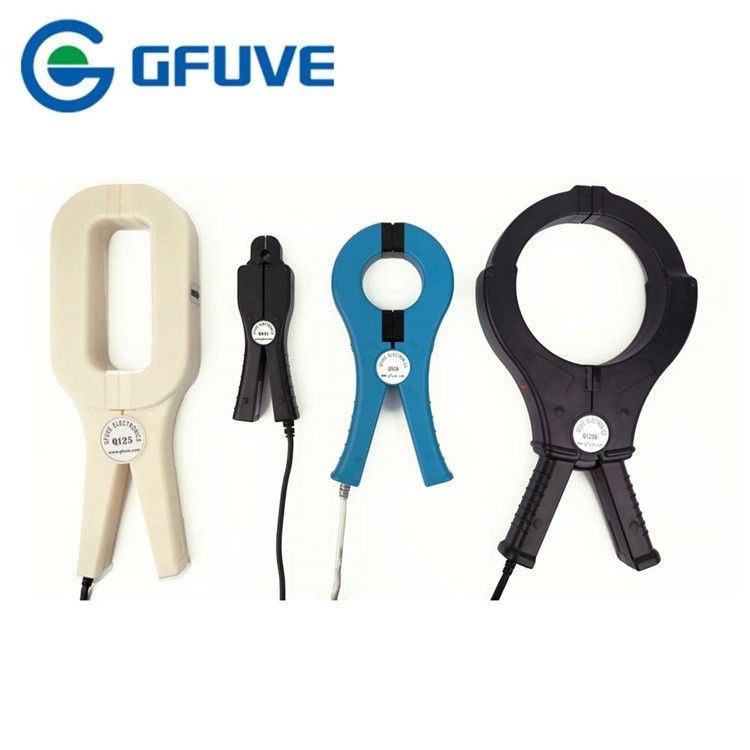

4mm Banana Connector 1000A/5A Split Core Current Transformer With 110mm & 50m Diameter
