Place of Origin: | BEIJING CHINA |
---|---|
Brand Name: | GFUVE |
Certification: | CE , ISO9001 |
Model Number: | GFLZZ0955-10F1 |
Minimum Order Quantity: | 3 PCS |
Price: | Negotiable |
Packaging Details: | Standard Export Carton Box |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 10000 PCs / Month |
Name: | MV Current Transformer Instrument | Rated Primary Current: | 5 - 3150A |
---|---|---|---|
Class: | 0.2s , 0.5 | Standards: | 50Hz Or 60Hz |
Color: | Red | Application: | Current Measurement |
High Light: | electromagnetic potential transformer,power potential transformer |

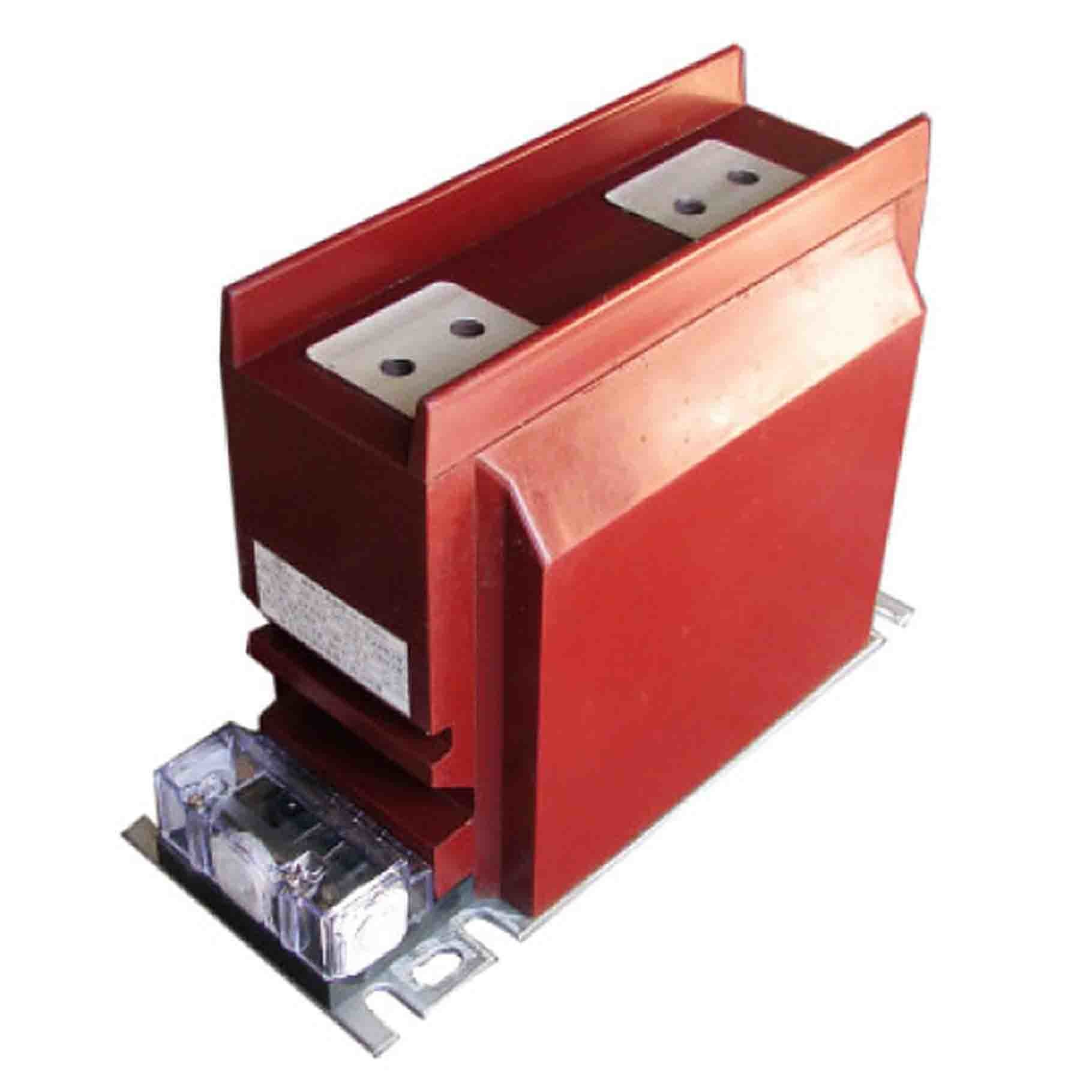

GFLZZ0955-10F1 Medium Voltage Current Transformer Measurement Instrument
The current transformer of the type GFLZZ0955-10F1 is casting resins and fully enclosed . It is used for metering electric energy and current , relay protection in the electrical system up to rated frequency 50Hz of 60Hz . The current instrument transformers can be executed according to the standards IEC60044-1 , IEC61869-2 and ANSI/IEEE C57.13 .
Design : 30 years life
Class : 0.2s or 0.5
Standard IEC : 61869-2 ; IEC61869-2
Rated current : 5 – 3150A
Ratied Primary Current(A) | Class Combination | Accuracy class and Rated output(VA) | Short-time thermal current (kA/S) |
Rated dynamic current (kA) |
|
0.2(S)/0.5 | 10P | ||||
5-75 | 0.2(S)/0.5/10P 0.5/0.5/10P 0.2/10P/10P 0.5/10P/10P |
10 | 15 | 100 I1n | 250 I1n |
100 | 21 | 52.5 | |||
150-200 | 31.5 | 80 | |||
300-400 | 45 | 112.5 | |||
500-600 | 63 | 130 | |||
1000-1500 | 80 | 160 | |||
2000-3150 | 20 | 20 | 100 | 160 |
Overall Dimensions
