200A Clamp On AC Current Probe High Accuracy For Electric Meter Testing

China 200A Clamp On AC Current Probe High Accuracy For Electric Meter Testing supplier
200A Clamp On AC Current Probe High Accuracy For Electric Meter Testing supplier 200A Clamp On AC Current Probe High Accuracy For Electric Meter Testing supplier

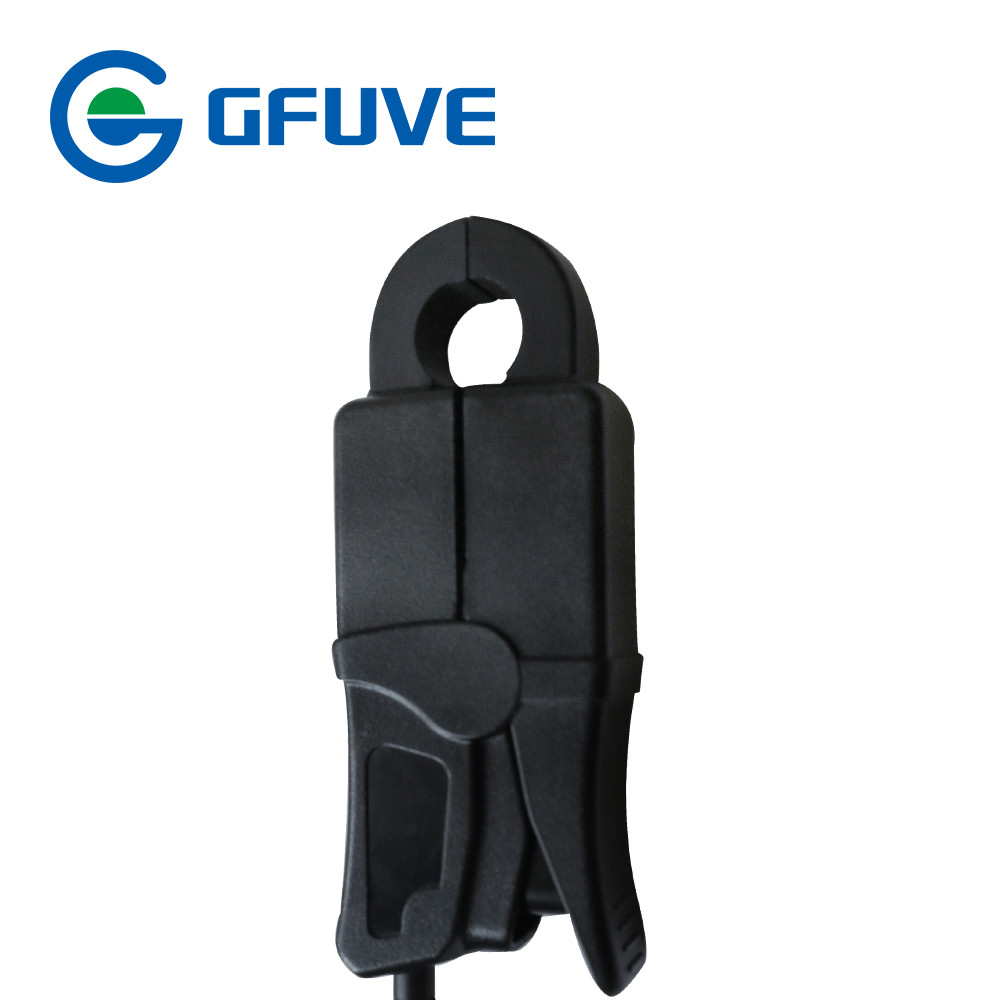

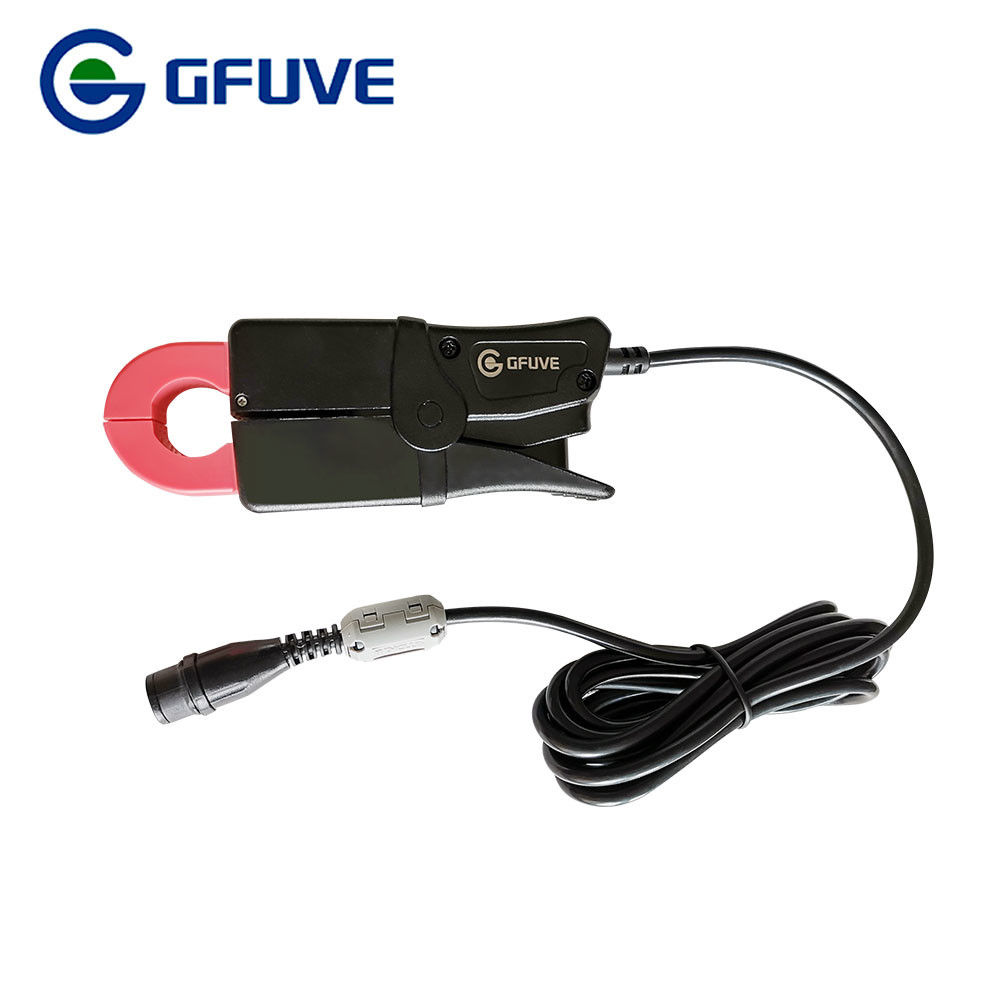

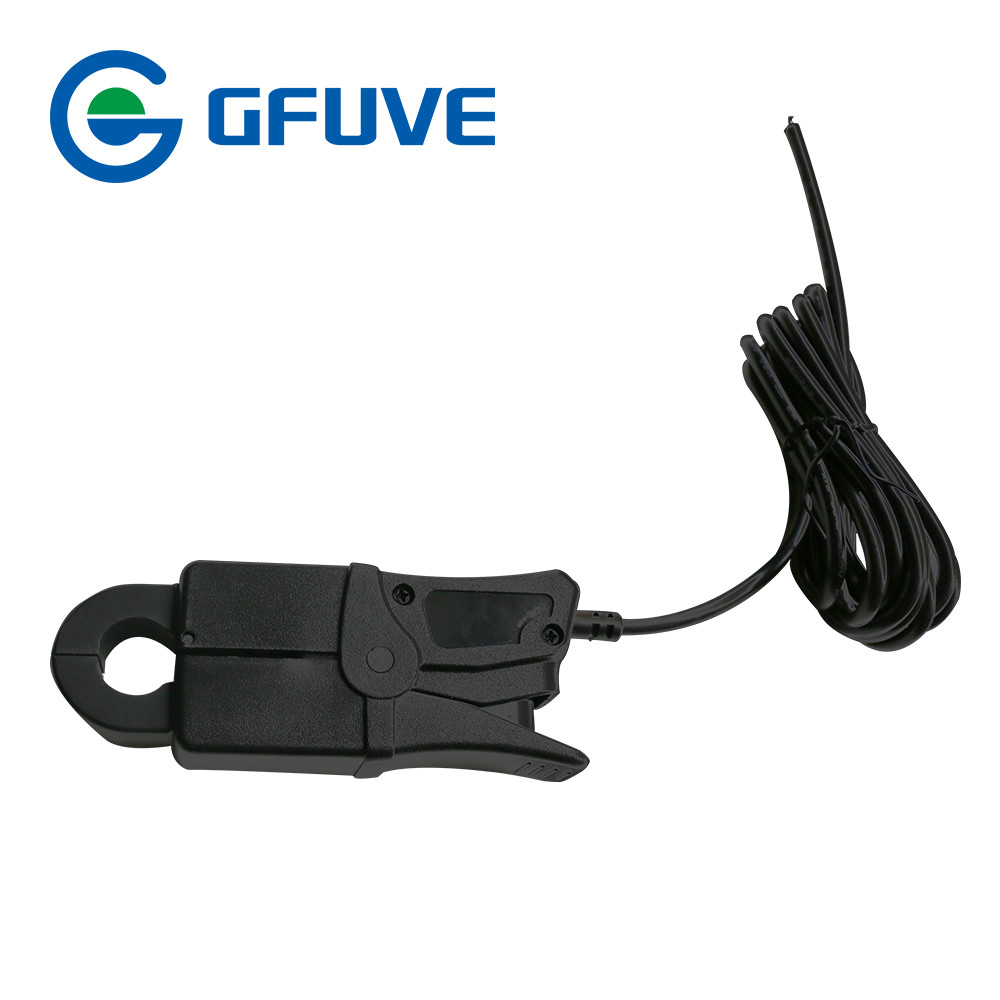

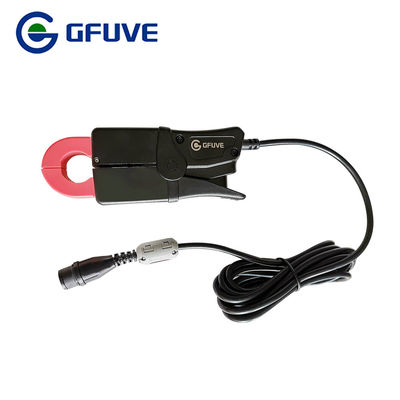

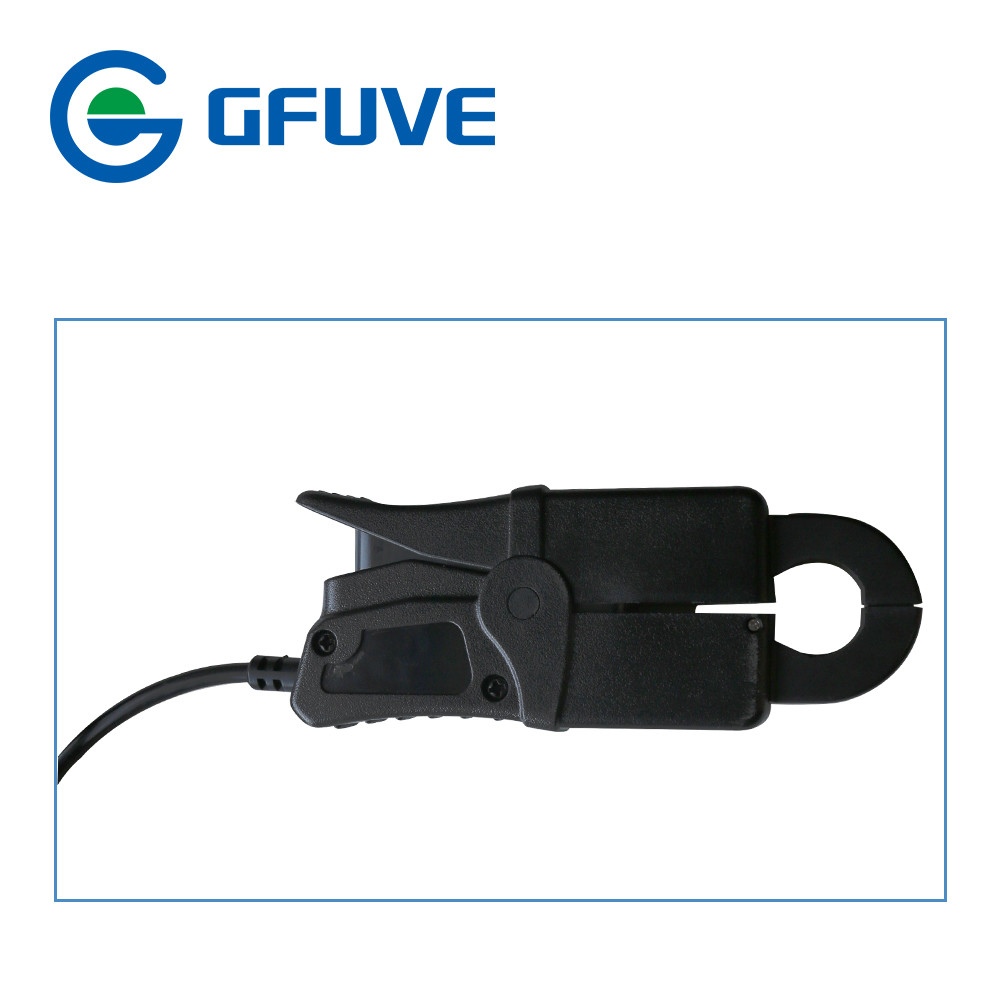

Large Image :  200A Clamp On AC Current Probe High Accuracy For Electric Meter Testing

Product Details:

Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CE, ISO9001
Model Number: P20

Payment & Shipping Terms:

Minimum Order Quantity: 3 PCS
Price: Negotiable
Packaging Details: Standard export box
Delivery Time: 3-7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 PCS/MONTH
Contact Now
Detailed Product Description
Name: 200A Clamp On AC Current Probe For Electric Meter Testing High Quality Accuracy: 0.1%, 0.2%
Weight: 400g Ratio: 1000: 1 Or 2000:1 (customized)
Primary Current: 0 - 200A AC Max. Jaw Opening: 20mm





200A Clamp On AC Current Probe for Electric Meter Testing High Quality





The model P20 clamp on current sensor is suitable for 200A cable online measurement, the user friendly shape make It easily clamp onto cables or bus bars.



In electrical and electronic engineering, a current probe is an electrical device with jaws which open to allow clamping around an electrical conductor. This allows measurement of the current in a conductor without the need to make physical contact with it, or to disconnect it for insertion through the probe.







Features



1. Suitable for 200A cable online measurement.

2. Holding wire diameter: φ20mm

3. Dimension: 52.5mm×137.5mm×28mm

4. Load capacity: ≤4Ω

5. Installation: clamp type

6. Output mode: lead output







PARAMETERS



Electrical parameters
Ratio 1000: 1 or 2000:1 (customized)
Accuracy class 0.1%, 0.2%
Primary current 0 - 200A AC
Secondary current 0 - 200mA AC (customized)
Max. Cont. Input current 240A
Load capacity ≤4Ω
Over voltage category CAT III 600V
Output signal (AC current) From 0 to 200mA AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage) From 0 to 2V AC at nominal input current
Frequency range 40Hz-2000Hz
Dielectric strength 3KV 50Hz/60Hz at 1minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 600 V
Standard EN 61010-1, EN 61010-2-032, IEC60044-1
Installation Clamp type
Output mode Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm) 52.5 x 137.5 x 28
Weight (g) 400
Holding wire diameter (mm) φ20
Max. jaw opening (mm) 20

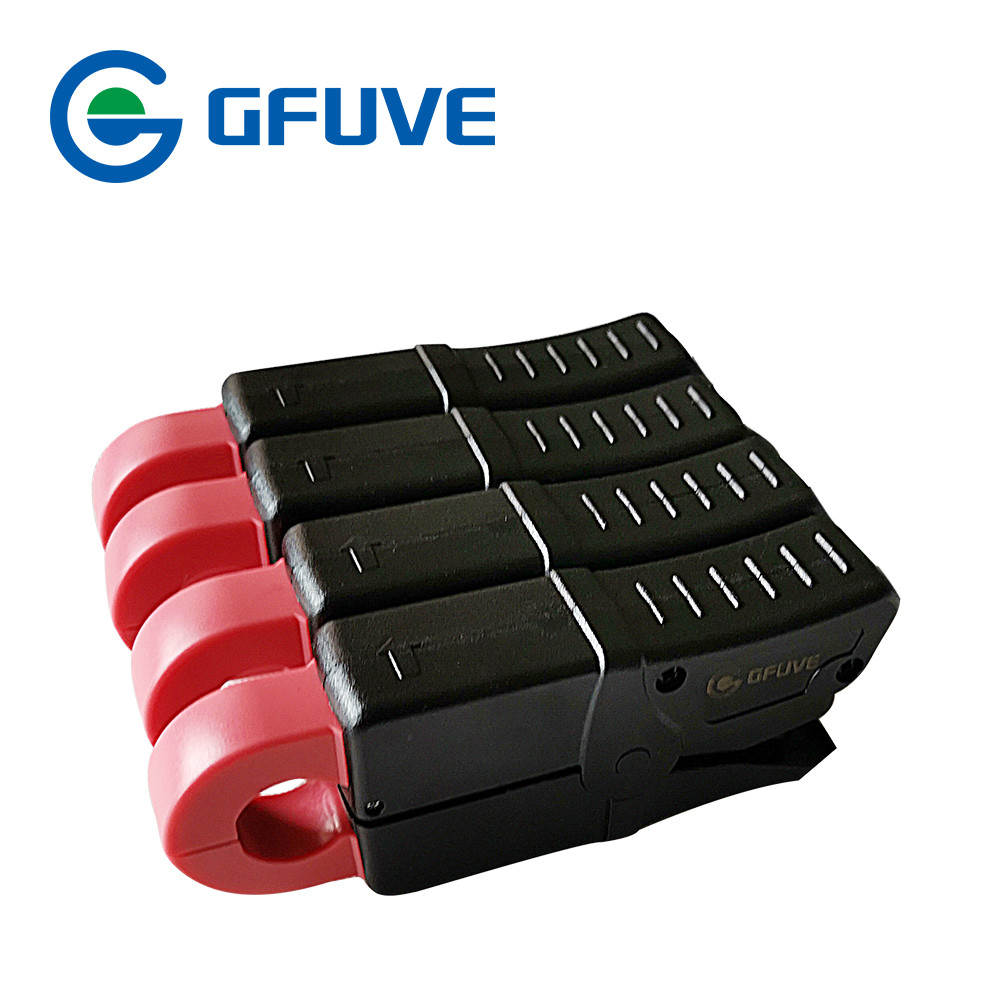

Jaw color Red, yellow, blue, green, black
Material PC+ABS+Polycarbonate, UL94 V0








200A Clamp On AC Current Probe High Accuracy For Electric Meter Testing
